SmallHD Cine 7 Touchscreen On-Camera Monitor with ARRI Control Kit
SmallHD Cine 7 | 7" Professional On-Camera Monitor with Cinema Camera Control
SmallHD Cine 7 Kit: Picture 1 thumbnail
See all SmallHD items
Top Rated Gear

SmallHD Cine 7 Touchscreen On-Camera Monitor with ARRI Control Kit

SKU: SMONCNE7ARRI MFR: MON-CINE7-ARRI
(1)
$2,649.00
OR
$221/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience superior clarity with the Cine 7's vibrant 7-inch touchscreen monitor.
  • Achieve perfect focus with user-adjustable focus assist tools on this on-camera monitor.
  • Enjoy seamless integration with ARRI cameras using the included control software.
  • The 1800 NITs bright display ensures excellent visibility, even in direct sunlight.
  • Easily power your SmallHD monitor with the included Sony L Series battery bracket.
  • Use HDMI/SDI cross conversion for flexible connectivity with various video equipment.
See More Product Details
Special Order?Estimated to Ship: 08/08/2025
Free Shipping

See Options

Qty
1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$289.99

3 Year

$449.99

4 Year

$549.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?PHILLIP S : I just purchased the Alexa Mini LF, and word on the street is that this is the best monitor.CECILIA G : compact and easy to carry on jobs with tough locations

Reviews about this item

Review Summary

2020-11-18T11:20:11

Rated 5 out of 5

BEST MONITOR !!

Truly an amazing monitor. Just purchased a RED Ranger and we made this Smallhd Monitor our “red monitor” love the menu system on the OS4. Definitely recommend this monitor over any other brand. I also own the Cine7 Bolt, 702 Bright, 702, 17” Production Monitor and have own their early monitors.

RANDY V.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

SmallHD Cine 7 Kit Specifications

Display

Display

Jump to...

  • Panel Type

    IPS LCD

  • Diagonal Size

    7.02

  • Resolution

    1920x1200

  • Pixel Density

    Sat Nov 17 00:00:00 GMT-08:00 1900

  • Aspect Ratio

    16:10

  • Active Area

    5.95 x 3.72

  • Brightness

    1800 NITs

  • Contrast

    1000:1

  • Gamut

    100% DCI-P3 Coverage

  • Color Depth

    10-bit Processing (8-bit panel)

  • Viewing Angle

    160

  • Backlight Type

    LED

  • Adjustable Backlight

    Yes

Input Signal

Jump to...

  • 3G-SDI Input Types

    YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100

  • HD-SDI Input Types

    YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

  • SD-SDI Input Types

    YCC 4:2:2 @ 10-bits: 480i59.94, 576i50

  • HDMI Input Types

    YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50

  • Audio Input Types

    HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

Output Signal

Jump to...

  • 3G-SDI Output Types

    YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100

  • HD-SDI Output Types

    YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

  • SD-SDI Output Types

    YCC 4:2:2 @ 10-bits: 480i59.94, 576i50

  • HDMI Output Types

    YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200

  • Audio Output Types

    HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

Connector Type

Jump to...

  • SDI

    1x BNC 3G input and 1x BNC 3G selectable input/output

  • HDMI

    1 input and 1 output: HDMI Type-D Receptacles (full size)

  • Audio

    1x 3.5mm 3-pin Stereo Headphone Jack

  • Power In

    2-pin Locking

  • USB

    1x USB 2.0 Micro-B receptacle

Controls

Jump to...

  • Primary

    Touch Screen

  • Record Capture

    Image Capture Tool

Power

Jump to...

  • Connector

    LEMO

  • Voltage

    DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max

  • Power Supply

    Recommend DC 12-15V at -2.5 amp or greater

  • Battery Types

    L-Series (included), V Mount, Gold Mount

  • Overload Protection

    DC input: Reverse polarity

  • Battery Chemistry

    Li-ion

  • Battery Charging Time

    Monitor does not support the charging of batteries

Software

Jump to...

  • Pixel Zoom

    1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom

  • Frame Guides

    Preset Aspect Ratios & Customizable

  • DSLR Scale

    Canon 5DMkii & Canon 7D

  • Custom Scale

    Yes (Underscan Only)

  • Anamorphic De-Squeeze

    0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x

  • Image Rotate

    Automatic or Manual Control

  • Image Flip

    Automatic or Manual Control

  • Cross Conversion

    Yes: HDMI > SDI & SDI > HDMI

  • Focus Assist

    User Adjustable Color Style and Intensity

  • Peaking

    User Adjustable Intensity

  • False Color

    Rainbow, Arri Style, Custom with up to 10 nodes

  • Zebra

    Dual - User Configurable

  • Waveform

    Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting

  • Vectorscope

    Yes

  • RGB Parade

    Fully User Customizable

  • Histogram

    Luma & RGB Style

  • Image Capture

    Yes

  • Custom LUTS

    Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu

  • LUT Downstream

    Available on SDI or HDMI Out. Applied on Output Preview Page.

  • LUT Import

    via SD Card or USB Storage Device

  • Overlay

    With Opacity Slider and Blink Setting

  • Audio Meters

    HDMI & SDI up to 8 channel

General

Jump to...

  • Compliance

    FCC, IC, CE, RoHS

  • Operating Temperature

    30 to 100 Degree F (-1 to 37 Degree C)

  • Storage Temperature

    0 to 120 Degree F (-17 to 48 Degree C)

  • Mount Points

    Four 1/4-20 Mount Points (Left, Right, Bottom, and Back)

  • Construction

    Anodized aluminum chassis

  • Dimensions (W x H x D)

    7.1 x 4.7 x 1.3" (18.03 x 11.94 x 3.3cm)

  • Weight

    20 oz (567g)

Other

Jump to...

  • UPC Code

    811786031979

About SmallHD Cine 7 Kit

FEATURED REVIEWS

BEST MONITOR !!

By RANDY V.

Truly an amazing monitor. Just purchased a RED Ranger and we made this Smallhd Monitor our “red monitor” love the menu system on the OS4. Definitely recommend this monitor over any other brand. I also own the Cine7 Bolt, 702 Bright, 702, 17” Production Monitor and have own their early monitors.

- Cine 7 Touchscreen On-Camera Monitor -
Full HD 7-inch Touchscreen Monitor with DCI-P3 Color and 1800 nits brightness

The New Industry Standard 7"
Cine 7 is the ultimate 7" on-camera monitor for cinematographers, offering a color accurate wide-gamut display, cinema camera control, and integrated Teradek RT and Bolt functionality.


- Sony L Series Battery Bracket -
Sony battery mounting solution for SmallHD 702 Touch and CINE 7 Monitors.


- LEMO to D-Tap, P-Tap Power Cable - 36" -
Pin 1 is GND Pin 2 is +DC (Pin 1 is closest to the red dot on the LEMO connector).


- 702 Touch/Cine 7 UltraClear Screen Protector -

Flexible Clear Screen Protector
Add scratch resistance and polarization to your SmallHD 702 Touch or Cine 7 monitor.

Prevent screen scratches on your SmallHD 702 Touch or Cine 7 monitor with this clear stick-on screen protector.


- 702 Touch/Cine 7 Sun Hood -

4-Sided Sun Hood with Mounting Bracket
Sleek and functional sun hood with a solid connection.


- ARRI Alexa Camera Control Cable -
3-foot Ethernet to 10-pin LEMO Cable for ARRI Alexa Cinema Cameras.


- ARRI Alexa Camera Control Cable (Right Angle) -
3-foot Ethernet to 10-pin LEMO (Right Angle) Cable for ARRI Alexa Cinema Cameras.


- Camera Control Software for ARRI (Software only) -
Camera Control for ARRI on your Cine 7 monitors
Interface with the ALEXA Mini and AMIRA cameras using the Cine 7 touchscreen display.


- 8GB SD Card -
• Store Your 3D LUTs
• Captured Images
• Flash your Firmware

Join VIP PRO

2 Day Delivery on thousands of items!

Request a Callback

Chat one-on-one with an expert

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience superior clarity with the Cine 7's vibrant 7-inch touchscreen monitor.
  • Achieve perfect focus with user-adjustable focus assist tools on this on-camera monitor.
  • Enjoy seamless integration with ARRI cameras using the included control software.
  • The 1800 NITs bright display ensures excellent visibility, even in direct sunlight.
  • Easily power your SmallHD monitor with the included Sony L Series battery bracket.
  • Use HDMI/SDI cross conversion for flexible connectivity with various video equipment.

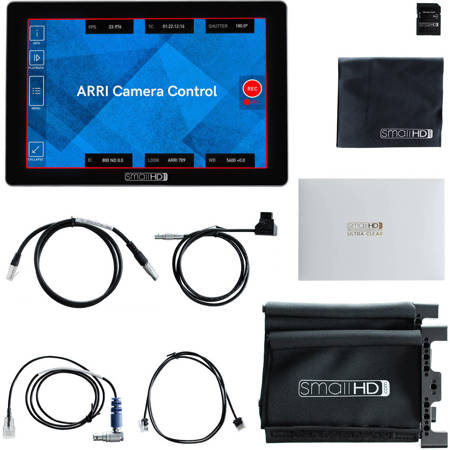

What's in the box:

  • Cine 7 Touchscreen On-Camera Monitor
  • Sony L Series Battery Bracket
  • LEMO to D-Tap/P-Tap Power Cable (36 ")
  • 702 Touch/Cine 7 UltraClear Screen Protector
  • 702 Touch/Cine 7 Sun Hood
  • ARRI Alexa Camera Control Cable
  • ARRI Alexa Camera Control Cable (Right Angle)
  • Cable
  • Camera Control Software
  • 8GB SD Card
  • Cleaning Cloth
  • SmallHD 1 Year Limited Warranty
