Sonnet Thunderbolt 3 Upgrade Kit for xMac Mini Server

SKU: SNBRPGRTB3XM MFR: BRD-UPGRTB3-XM
Earn VIP Reward Points

Key Features

  • Upgrade your xMac mini Server with our Thunderbolt 3 kit for blazing-fast data transfers.
  • Experience enhanced workflow speeds and reliability with this Thunderbolt 3 upgrade solution.
  • Ensure seamless compatibility with your xMac mini Server using our easy-to-install upgrade kit.
  • Boost your server's performance with dual Thunderbolt 3 ports for expanded connectivity options.
  • Safeguard your connections with the included Thunderbolt 3 cable lock for data security.
  • Enjoy peace of mind with our 2-year warranty, ensuring the reliability of your server upgrade.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$53.99

3 Year

$69.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?ANTHONY D : Upgrading the Sonnet Xmac thunderbolt 2 card

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Sonnet Upgrade Kit Specifications

  • Compatibilty

    xMac mini Server

  • Ports

    2x Thunderbolt 3

  • Operating Temperature

    32 to 95 Degree F (0 to 35 Degree C)

  • RoHS Compliant

    Yes

  • UPC Code

    732311012839

About Sonnet Upgrade Kit

An innovative solution for enhancing your computing experience, the Thunderbolt 3 Upgrade Kit for xMac Mini Server is a powerful tool designed by Sonnet. This kit is specifically engineered to upgrade Echo Express and xMac mini Server Thunderbolt 2 to PCIe card expansion systems, as well as select Thunderbolt 2 adapters, to the lightning-fast 40Gbps Thunderbolt 3.

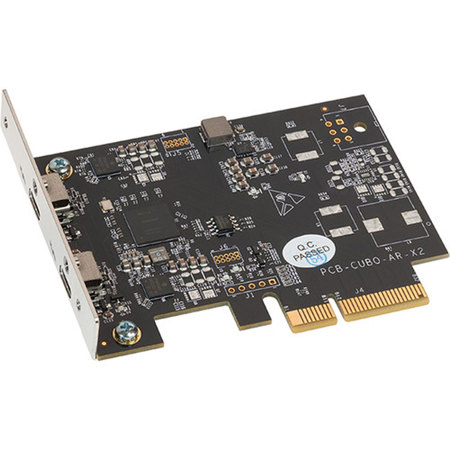

The upgrade process is straightforward - simply replace the existing Thunderbolt interface board with the upgrade board. This instantly equips your chassis to support higher performance and seamlessly connect to your Thunderbolt 3 equipped computer, eliminating the need for an adapter.

The Thunderbolt 3 interface card, once installed, significantly boosts your upgraded Sonnet Thunderbolt 2 system's bandwidth by 30% to 100% for the installed PCIe cards. This increased bandwidth allows PCIe cards with high bandwidth requirements, such as 16Gb Fibre Channel and 4K Video I/O cards supporting high frame rates, to perform at their peak.

Choosing to upgrade rather than adapt with the Sonnet Thunderbolt 3 upgrade offers numerous benefits. The upgrade card provides a substantial bandwidth increase to 40Gbps, compared to Thunderbolt 2's 20Gbps. It also supports optimal Thunderbolt 3 daisy chaining, allowing additional Thunderbolt 3 peripheral devices in the Thunderbolt chain to enjoy the full 40Gbps bandwidth.

The upgrade card also offers 10Gbps USB 3.1 Gen 2 support, enabling you to connect a USB device to the second port using the appropriate cable or adapter. It also fully supports the connection of two 4K displays @ 60Hz or one 5K display @ 60Hz.

Designed with user convenience in mind, Sonnet's Thunderbolt 3 upgrade cards are compatible with the ThunderLok 3 Thunderbolt connector retainer clip. This clip secures the Thunderbolt cable to the chassis, preventing accidental disconnections. Its unique design ensures it remains on the cable when not in use, so it won't get lost.

Key features of this upgrade kit include an easy-to-install 40Gbps Thunderbolt 3 Upgrade Card that replaces the existing 20Gbps Thunderbolt interface board in your Thunderbolt 2 to PCIe card expansion system. It also improves performance with high-bandwidth PCIe cards, providing up to 100% more bandwidth. The kit includes two Thunderbolt 3 ports, with one port reserved for connection to the computer and the second port supporting daisy-chaining of up to five additional Thunderbolt devices, attaching a single USB peripheral device, or connecting up to two 4K displays or one 5K display.

Experience the power and efficiency of Thunderbolt 3 with the Thunderbolt 3 Upgrade Kit for xMac Mini Server, a reliable and high-performance solution for your computing needs.

Sonnet Upgrade Kit Features

  • Easy to Install 40Gbps Thunderbolt 3 Upgrade Card - Replaces Existing 20Gbps Thunderbolt 2 Interface Board
  • Improves Performance with High-Bandwidth PCIe Cards - Provides 30% More Bandwidth (Up to 1750 MB/s)
  • Two Thunderbolt 3 Ports
  • 0.5-meter Thunderbolt 3 (40Gbps) cable
  • ThunderLok 3 Thunderbolt Connector Retainer Clip

Key Features

  • Upgrade your xMac mini Server with our Thunderbolt 3 kit for blazing-fast data transfers.
  • Experience enhanced workflow speeds and reliability with this Thunderbolt 3 upgrade solution.
  • Ensure seamless compatibility with your xMac mini Server using our easy-to-install upgrade kit.
  • Boost your server's performance with dual Thunderbolt 3 ports for expanded connectivity options.
  • Safeguard your connections with the included Thunderbolt 3 cable lock for data security.
  • Enjoy peace of mind with our 2-year warranty, ensuring the reliability of your server upgrade.

What's in the box:

  • Thunderbolt 3 Cable (1.6')
  • Thunderbolt 3 Cable Lock
  • Bracket
  • Sonnet 2 Year Limited Warranty
