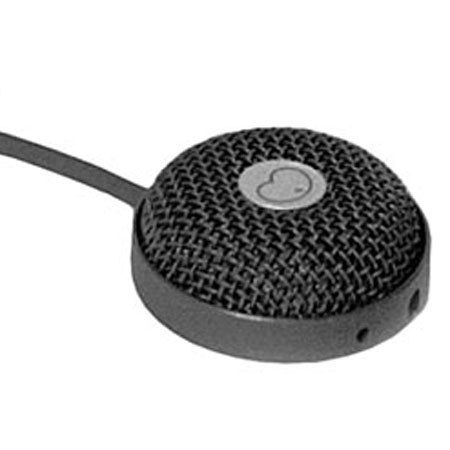

Sanken CUB-01PT Miniature Boundary Microphone with Stripped End Cable, Gray , Includes FREE Copy of Vasst Training DVD:"Now Hear This!"Super ior Sound for Digital Video $89 Value

SKU: SNCUB01PTGY

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Sanken Audio CUB-01PT Miniature Boundary Microphone w/Stripped End Cable, Gray Specifications

  • Directivity

    Cardioid/front side of hemisphere

  • Transducer

    Self-polarised condenser

  • Frequency range

    60Hz - 15kHz

  • Sensitivity (nominal at 1kHz)

    (3V power) 15mV/Pa (-36.5dB,0dB=1V/Pa), (12V power) 16.8mV/Pa (-35.55dB,0dB=1V/Pa)

  • Equivalent noise level (A-weighted)

    (3V power) 17dB-A, (12V power) 16dB-A

  • Max SPL (1% THD)

    (3V power) 121dB SPL, (12V power) 127dB SPL.

  • Output impedance at 1KHz

    120 ohms

  • Powering

    +3V to +14V

  • Current consumption

    (3V power) <0.6mA, (12V power),<1.3mA

  • Connector

    Connector-less

  • Surface finish

    Baked painting/gray

  • Dimensions

    32.5mm (diameter) x 14.0mm

  • Warranty

    Sanken Audio warranty

About Sanken Audio CUB-01PT Miniature Boundary Microphone w/Stripped End Cable, Gray

The Sanken Audio CUB-01PT offers an exclusive design which overcomes the limitations of previous boundary microphones, producing an extremely rich and full-bodied sound. Although small (32.5mm diameter, 14mm height, 45g weight) the sound is comparable with much larger microphones. The CUB-01 is designed for use in many situations, from TV and film field shooting to broadcast studio production and conference table recording.

Because of its small size it is easy to conceal from the camera and can be positioned in a variety of environments, for example, attached to the ceiling of a car with two-sided sticky tape. Using Sanken's advanced technology; the CUB-01 has a unique square-shaped capsule housing the diaphragm. With this proprietary design, the effective area of the diaphragm is significantly enlarged. Due to the CUB-01's cardioid directional characteristics, human narration and dialogue are clearly recorded while eliminating unnecessary background noise.

The Sanken CUB-01 offers a totally new design that overcomes the limitations of previous boundary microphones. Using Sanken's advanced technology; the CUB-01 has resolved this problem with its unique square-shaped cardioid capsule. This proprietary design significantly enlarges the effective area of the diaphragm, resulting in a boundary microphone whose sound is rich and natural, with a flat response to 70Hz. Human narration and dialogue are clearly caught while excluding unnecessary background noise.

Sanken Audio CUB-01PT Miniature Boundary Microphone w/Stripped End Cable, Gray Features

  • Clear and rich sound
  • Small size, easy to set up
  • Front side of hemisphere cardioid directivity

What's in the box:

  • Sanken Audio CUB-01PT Miniature Boundary Microphone
  • Rubber Base x 2
  • Urethane Wind Screen
  • Instruction Manual
  • Warranty Card
  • Vinyl Case
  • Sanken Audio Warranty
