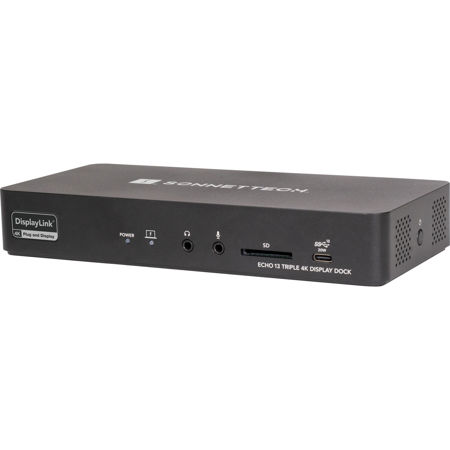

Sonnet Echo 13 Triple 4K Display Docking Station

SKU: SNECHODK3MTB

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Sonnet Echo 13 Specifications

General

General

Jump to...
  • Mac Compatibility

    M1/M2/M3 Macs (not compatible with Pro/Max/Ultra versions)
    Intel Macs with Thunderbolt 3 ports
    MacBook with a USB-C port
    macOS 11+
    macOS Sonoma compatible

    Display Rotation Support: M series Macs using macOS 12+, Intel Macs

    Closed Clamshell Support: M series Macs, Intel Macs using macOS 12+

  • Windows Compatibility

    Windows computer with a Thunderbolt 4 port or USB4 port
    Windows computer with a Thunderbolt 3 port
    Windows computer with a USB-C (with Alt Mode DP) port
    Windows 11 and 10

  • Chromebook Compatibility

    Chromebook with a Thunderbolt 4 or USB4 port
    Chromebook with a Thunderbolt 3 port
    Chromebook with a USB-C (with Alt-Mode DP) port

  • Ubuntu Compatibility

    Ubuntu 20.04+

  • Application Compatibility

    Suitable for productivity applications and videos
    Not recommended for gaming or applications that require a dedicated GPU

  • Form Factor

    Dock

  • External Connectors

    USB 3.2 Gen 2 (10Gbps) Type-C 100W computer interface/charging port
    USB 3.2 Gen 2 (10Gbps) Type-C 20W charging port
    Three HDMI 2.0 ports (two using DisplayLink software)
    Three DisplayPort 1.2 ports (two using DisplayLink software)
    Four USB 3.2 Gen1 (5Gbps) Type A ports
    RJ45 Gigabit Ethernet port
    3.5 mm stereo headphones jack
    3.5 mm mono microphone jack
    Fast UHS-II SD card slot
    Power connector

  • Kensington Security Slot

    Supports Standard, MicroSaver, and MicroSaver 2 Locks

USB Type-C Computer Port

Jump to...
  • Power Delivery

    Provides laptop charging up to 100W

USB Type-C 20W Charging Ports

Jump to...
  • Connectivity

    USB Type-C connector

  • Peripheral Supported

    USB 3, 2.0, or 1.1 device
    Bus-powered USB 3 hub

  • Data Transfer Rate

    USB 3.2 Gen 2 (previously USB 3.1 Gen 2): 10Gbps

  • Charging

    Up to 20W
    20W for operation or charging
    Supports simultaneous charging and syncing

USB Type-A Ports

Jump to...
  • Connectivity

    With USB Type A connector

  • Peripheral Supported

    USB 3, 2.0, or 1.1 devices
    USB 3 hubs

  • Data Transfer Rate

    USB 3.2 Gen 1 (previously USB 3.10): 5Gbps

RJ45 Port

Jump to...
  • Network Support

    Supports 1000Mb/s and 100Mb/s network speeds and Auto-MDI/MDI-X

  • Standard

    Compliant with 10/100/1000 IEEE 802.2 Specifications

  • Network

    Gigabit Ethernet (1000BASE-T and 100BASE-TX)

  • Packets

    Maximum packet size: 9000 bytes (Jumbo packets)

  • Chip

    DisplayLink DL-6950

SD Card Slot

Jump to...
  • Card Reader SD

    Fast UHS-II

  • Cards Supported

    SD, SDHC, SDXC
    microSD, microSDHC, and microSDXC cards when used with adapter (sold separately)

Display Connectivity

Jump to...
  • DisplayPort 1.4 Ports

    4K @60Hz
    1440p @60Hz
    1080p @60Hz

  • HDMI 2.0 Ports

    4K @60Hz
    1440p @60Hz
    1080p @60Hz

  • Power Delivery

    Provides laptop charging up to 100W

  • Power Adapter

    Universal 135W, 100-240V AC, 50-60 Hz

Environmental

Jump to...
  • Operating Temperature

    32 Degree F to 95 Degree F (0 Degree C to 35 Degree C)

Certification

Jump to...
  • Compliance

    RoHS 3 (Directive 2015/863)
    IEC62368-1 and IEC62368-2 Safety
    VCCI-B certified
    FCC Part 15, Subpart B
    CISPR 32 / EN 55032
    Power Supply (PSE certified; UL certified)

Physical

Jump to...
  • Dimensions (W x D x H)

    Dock: 9.6 x 4.2 x 1.3" (24.3 x 10.6 x 3.3cm)
    Power Adapter: 2.6 x 5.4 x 0.9" (6.6 x 13.7 x 2.2cm)

  • Weight

    Dock and Power Adapter: 1.6 lbs (720g)

  • UPC Code

    732311013621

About Sonnet Echo 13

Let the Echo 13 Triple 4K Display Docking Station revolutionize your digital workspace. This high-performance docking station, designed for Apple M1/M2/M3 Mac computers, overcomes the limitation of connecting only one external display. With the integration of advanced DisplayLink technology, the Echo 13 Docking Station allows you to connect three 4K @60Hz DisplayPort or HDMI displays simultaneously to a single port on your Mac, Windows, or Chromebook computer.

This docking station is not just about multiple displays. It's a comprehensive solution for all your connectivity needs. It offers a 100W Power Delivery feature to connect and charge your laptop, four USB 3 ports for your devices, and a fast-charging option for your phone. It also supports Gen 2 USB-C SSDs, a 10Gbps powered hub, and provides a link to an Ethernet network. You can even read your SD cards, plug in your headphones, or connect your microphone, all in one place.

Unlike other multi-display docks, the Echo 13 Triple 4K Display Docking Station ensures uncompromised performance. It supports three 4K @60Hz displays, HDMI or DisplayPort, even with an M1 or M2 MacBook Air computer. This means no more settling for slower 30Hz refresh rates or limited 1080P (HD) display support.

The Echo 13 Docking Station is an efficiency booster, perfect for productivity software like Microsoft Office. It expands your workspace, allowing you to open multiple applications on their own screens, edit code, view multiple spreadsheets in detail on large displays, or track the stock market.

One of the standout features of this docking station is the one-cable connection. Connect your monitors, USB peripherals, and Ethernet cable to the dock and link them all to your computer with a single USB-C cable. It even powers your laptop with up to 100W of charging power.

The Echo 13 Docking Station also includes a Gigabit Ethernet port for a fast wired network connection, a 10Gbps USB-C 20W Charging Port for super-fast USB NVMe SSDs, and supports USB-C Fast Charging even when the computer is sleeping, shut down, or disconnected.

This docking station is not just for 4K displays. It supports monitors with lower resolutions like 1440p or 1080p. It also features a fast UHS-II SD Card Reader, compatible with SD, SDHC, and SDXC memory cards, and supports 320MB/s read speeds with UHS-II SDXC cards.

The Echo 13 Triple 4K Display Docking Station is also secure, compatible with standard MicroSaver, MicroSaver 2, and NanoSaver locks. It's the ultimate docking station for your Mac, Windows, or Chromebook computer, designed to enhance productivity and streamline your digital workspace.

Sonnet Echo 13 Features

  • Multiple Monitor DisplayLink Dock - Connect up to Three 4K @60Hz Displays
  • USB 3.2 Gen 2 (10Gbps) Type-C 100W Charging Port (for Host Computer)
  • USB 3.2 Gen 2 (10Gbps) Type-C 20W Charging Port (for a Peripheral That Requires Bus-power or Fast Charging)
  • 4x USB 3.2 Gen 1 (5Gbps) Type A Ports
  • 3x HDMI 2.0 Ports (Two Using DisplayLink Software)
  • 3x DisplayPort 1.2 Ports (Two Using DisplayLink Software)
  • RJ45 Gigabit Ethernet Port
  • 3.5 mm Microphone Jack
  • 3.5 mm Headphone Jack
  • UHS-II SD Card Slot
  • Charge Your Laptop - Provides Up to 100W Power Delivery
  • Includes 3.3' (1m) USB 3.2 Gen 2 100W USB-C Cable

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Connect up to three 4K displays with this Sonnet docking station, boosting your productivity.
  • Enjoy fast data transfers with the USB 3.2 Gen 2 ports, perfect for external SSDs and more.
  • This docking station supports 100W power delivery, keeping your laptop charged all day long.
  • The Gigabit Ethernet port ensures a stable, high-speed network connection for your workstation.
  • Quickly access files using the UHS-II SD card slot, ideal for photographers and videographers.
  • Compatible with macOS and Windows, this Thunderbolt dock expands your connectivity options.

What's in the box:

  • Sonnet Echo 13 Triple 4K Display Docking Station
  • Power Adapter
  • Power Cord
  • 3.3' USB 3.2 Gen 2 100W USB-C Cable
  • User Manual
  • Sonnet 2 Year Limited Warranty
