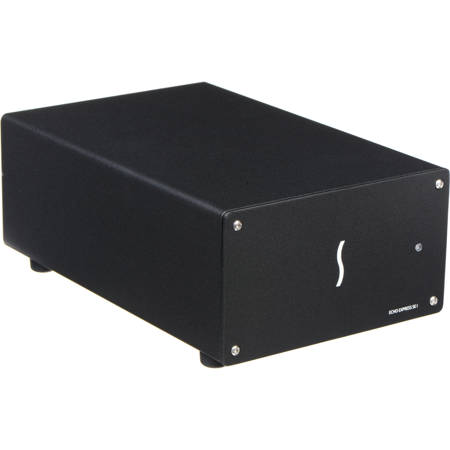

Sonnet Echo Express Se1 Thunderbolt 2 to Single Slot Pcie Expansion Chassis

SKU: SNECHOEXPSE1

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Sonnet Echo Express Se1 Thunderbolt 2 to Single Slot Pcie Expansion Chassis Specifications

  • Form Factor

    Desktop

  • External Connectors

    Two Thunderbolt
    Power

  • Expansion Slot

    One x8 mechanical (x4 electrical) PCIe 2.0

  • PCIe Cards Supported

    One low-profile PCIe card

  • Compatible PCIe Cards

    Up-to-date PCIe cards listed on supporting PCIe Card Thunderbolt Compatibility Chart

  • Power Adapter

    Universal 60W, 100-240V AC, 50-60 Hz

  • Operating Temperature

    0 to 35 deg.C / 32 to 95 deg.F

  • RoHS Compliant

    Yes

  • Mac Compatibility

    Mac with a Thunderbolt2 or Thunderbolt port
    OS X 10.8.5+

  • PC Compatibility

    Any PC with a Thunderbolt 2 or Thunderbolt port
    Windows 8, 7

  • Dimensions (W x D x H)

    4 x 8.42 x 2.82" / 10.16 x 21.38 x 7.16cm

  • UPC Code

    732311011269

About Sonnet Echo Express Se1 Thunderbolt 2 to Single Slot Pcie Expansion Chassis

The Sonnet Echo Express Se1 Thunderbolt 2 to Single Slot Pcie Expansion Chassis are smaller in size and more portable, they're very desirable. For pros in the creative fields, processing power alone is not enough. A prime example is the new Mac Pro. Reviewers love its performance, but make a point of mentioning its lack of internal expansion capabilities compared to the old towers the new model replaces. If you want to add more capabilities, think external the new Pro is loaded with Thunderbolt 2 and USB 3.0 ports, but it lacks the PCIe expansion slots necessary for you to install specialty high bandwidth NIC cards, or HBAs and RAID controller cards for high-performance storage. It is a solution that leverages the paradigm shift enabled by Thunderbolt technology, allowing PCIe expansion slots to be connected outside a computer.

This very compact desktop Thunderbolt 2-to-PCIe card expansion chassis is ideal for connecting one professional 16Gb or 8Gb Fibre Channel, 10 Gigabit Ethernet, SAS/SATA host bus adapter or RAID controller PCIe card to any Mac with a Thunderbolt port. Featuring 20Gbps Thunderbolt 2 technology that provides sufficient bandwidth to support many of the highest performance and most demanding PCIe cards, the Echo Express SEL delivers maximum performance when connected to a computer with Thunderbolt 2. The SEL is also fully compatible with computers with 10Gbps Thunderbolt technology, supporting most cards at full-performance.

What's in the box:

  • Sonnet Echo Express Se1 Thunderbolt 2 to Single Slot Pcie Expansion Chassis
  • Power Adapter
  • Power Cord
  • Thunderbolt Cable
  • Thunderbolt Cable Lock
  • Sonnet 1 Year Warranty
