Just Reduced

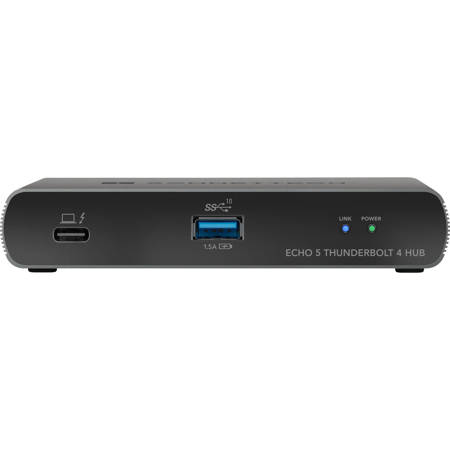

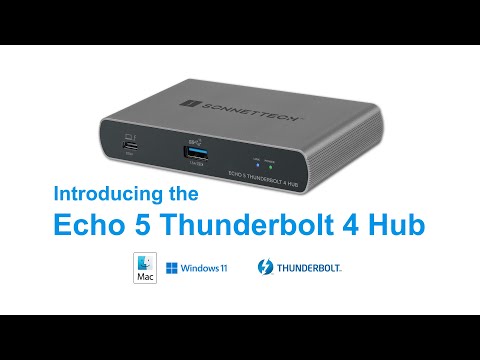

Sonnet Echo 5 Thunderbolt 4 Hub

SKU: SNECHOHB5T4 MFR: ECHO-HB5-T4
$129.99
Earn VIP Reward Points

Key Features

  • Expand your workstation with the Sonnet Echo 5 Thunderbolt 4 Hub for peak performance.
  • Connect multiple displays and peripherals using the versatile Thunderbolt 4 ports.
  • Enjoy fast data transfers with the USB 3.2 Gen 2 port, up to 10Gbps for speedy backups.
  • Charge your laptop with up to 85W power delivery via the Thunderbolt 4 computer port.
  • This docking station supports Thunderbolt 3/USB-C monitors, DisplayPort, & HDMI displays.
  • Compact design ensures the Sonnet Echo 5 hub fits seamlessly into any workspace setup.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$7.99

2 Year

$12.99

3 Year

$21.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Sonnet Echo 5 Specifications

General

General

Jump to...
  • Compatibility

    Mac Compatibility
    M1 Max or M1 Pro Mac (supports two displays), M1 Mac (supports only one display), Intel Thunderbolt 3 Mac (supports two displays), macOS 11 (Big Sur) or 12 (Monterey) required

    iPad Compatibility
    iPad Pro with Thunderbolt port (supports only one mirrored display)

    Windows Compatibility
    Windows computer with a Thunderbolt 4 port (supports two displays), Not compatible with Thunderbolt 3 Windows computers

  • Form Factor

    Thunderbolt hub

  • External Connectors

    Four Thunderbolt 4 ports
    One USB 3.2 Gen 2 (10Gbps) Type A charging port
    One power connector

Thunderbolt 4 Computer Port

Jump to...
  • Power Delivery

    Provides laptop charging up to 85W

  • Cables Supported

    Any Thunderbolt 4 cable (0.7m cable included)
    100W <= 0.8m Thunderbolt 3 cables

  • Cables Not Supported

    60W Thunderbolt 3 cables
    >= 1.0m Thunderbolt 3 cables

Thunderbolt 4 Peripherals Ports

Jump to...
  • Connectivity

    With USB-C connector

  • Peripherals Supported

    Thunderbolt 4, Thunderbolt 3, Thunderbolt 2 (macOS), USB4, USB 3, 2.0 and 1.1 devices, Thunderbolt 3 and USB-C monitors, DisplayPort and HDMI monitors

  • Charging

    15W capacity to charge iPad, iPhone, or other device supporting PD charging
    Supports simultaneous charging and syncing

USB 3.2 Gen 2 Type A Port

Jump to...
  • Connectivity

    With USB Type A connector

  • Peripherals Supported

    USB 3, 2.0 and 1.1 devices

  • Data Transfer Rate

    USB 3.2 Gen 2 (previously USB 3.1 Gen 2): 10Gbps

  • Charging

    7.5W capacity to charge iPad, iPhone, or other device
    USB Battery Charging 1.2-compliant
    Supports simultaneous charging and syncing

  • Power Adapter

    Universal 100W, 100-240V AC, 50-60 Hz

  • Power Delivery

    Provides laptop charging up to 85W

Environment

Jump to...
  • Operating Temperatures

    0 Degree C to 35 Degree C (32 Degree F to 95 Degree F)

Certification

Jump to...
  • Compliance

    RoHS 3 Directive 2015/863, IEC62368-1 and IEC62368-2 Safety, FCC Part 15, Subpart B, CISPR 32 / EN 55032, UKCA, Power Supply (PSE certified; UL certified; VCCI certified)

Physical

Jump to...
  • Dimensions (W x D x H)

    Hub: 5.1 x 2.8 x 0.9" (12.9 x 7.2 x 2.16cm)
    Power Supply: 2.2 x 5.8 x 1.3" (5.6 x 14.8 x 3.2cm)

  • Weight

    Hub and Power Supply: 1.35 lbs (0.61kg)

  • UPC Code

    732311013218

About Sonnet Echo 5

Because of its high-speed and reliable performance, the Echo 5 Thunderbolt 4 Hub is a compact, portable, and durable solution for your connectivity needs. Certified for both Mac and Windows, it's compatible with M1 Max/M1 Pro/M1 Mac computers, Intel Macs with Thunderbolt 3 ports running macOS 12 (Monterey) or 11 (Big Sur), and Windows computers with Thunderbolt 4 ports.

This powerful hub offers a one-cable peripheral connection, providing instant access to your devices. Simply plug your peripherals into the Echo 5 and connect your computer to the hub with the included Thunderbolt cable. It features five ports, including four Thunderbolt 4 ports and one USB 3.2 Gen 2 Type A charging port.

The Echo 5 Thunderbolt 4 Hub allows you to connect three Thunderbolt peripherals directly, with support for daisy-chaining additional peripherals. It also supports USB4 and USB 3 devices. The front panel USB 3.2 Gen 2 (10Gbps) port supports super-fast USB 3 NVMe SSDs at full speed, providing up to 7.5W of power to ensure bus-powered devices operate without fail.

With support for 4K, 5K, 6K, and 8K @60Hz displays, the Echo 5 Thunderbolt 4 Hub enhances your viewing experience. Depending on your computer, it supports up to two 5K displays or a single 4K, 5K, 6K, or 8K display. It supports direct connection of Thunderbolt and USB-C displays, and with a Thunderbolt-compatible adapter (sold separately), it can also support HDMI and DisplayPort displays.

Compact and travel-sized, the Echo 5 Thunderbolt 4 Hub is the perfect companion for on-the-go connectivity. Measuring just 5.1 inches wide by 2.8 inches deep by 0.9 inches high, it fits easily into your backpack along with your laptop or tablet. It also provides up to 85W of power through the included Thunderbolt cable to power and charge your laptop, allowing you to leave your computer's power adapter at home.

The Echo 5 Thunderbolt 4 Hub is compatible with all Apple M1/M1 Max/M1 Pro computers, all Thunderbolt 3 Mac computers running macOS 12 or 11, all Thunderbolt 4 Windows computers, and all iPad Pro tablets with a Thunderbolt port.

Whether you're connecting to one 8K, two 5K, or two Apple Pro Display XDR monitors, the Echo 5 Thunderbolt 4 Hub delivers superior display performance. It's small enough to take with you, and with its smart power controller, it can power and charge your computer while connected, even when not in use.

Sonnet Echo 5 Features

  • One Cable Peripheral Connection
  • Includes four Thunderbolt 4 ports, one USB 3.2 Gen 2 Type A (charging) port
  • Three Thunderbolt 4 Ports for Peripherals
  • Powerful 10Gbps Front Panel USB Type A Charging Port
  • Support for 4K, 5K, 6K, and 8K @60Hz Displays
  • Many Display Interfaces Supported
  • Travel-Sized Thunderbolt Port Expander
  • Charge Your Laptop - Provides Up to 85W
  • Apple M1 Compatible
  • Intel Mac Compatible
  • Intel Windows Compatible
  • Apple M1 iPad Pro Compatible

Product Documents

User Manual

Key Features

  • Expand your workstation with the Sonnet Echo 5 Thunderbolt 4 Hub for peak performance.
  • Connect multiple displays and peripherals using the versatile Thunderbolt 4 ports.
  • Enjoy fast data transfers with the USB 3.2 Gen 2 port, up to 10Gbps for speedy backups.
  • Charge your laptop with up to 85W power delivery via the Thunderbolt 4 computer port.
  • This docking station supports Thunderbolt 3/USB-C monitors, DisplayPort, & HDMI displays.
  • Compact design ensures the Sonnet Echo 5 hub fits seamlessly into any workspace setup.

What's in the box:

  • Sonnet Echo 5 Thunderbolt 4 Hub
  • Power Adapter
  • Power Cord
  • Thunderbolt 4 Cable (0.7m)
  • User Manual
  • Sonnet 2 Year Limited Warranty
