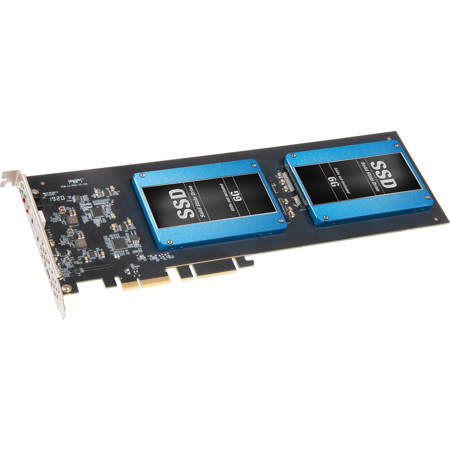

Sonnet Fusion Dual 2.5" SATA SSD RAID PCIe Card

SKU: SNFUSSSD2RDE MFR: FUS-SSD-2RAID-E
$99.99
Earn VIP Reward Points

Key Features

  • Boost storage with this Sonnet PCIe card, supporting dual 2.5" SATA SSDs for fast data access.
  • Create a RAID 0 or 1 array for redundancy or speed with this versatile SATA SSD RAID card.
  • Connect via USB-C; this PCIe card supports USB 3.2 Gen 2 for up to 10Gbps transfer speeds.
  • Expand your Mac Pro or Windows PC with this easy-to-install PCIe card for SSD upgrades.
  • Perfect for media editing; this card ensures smooth 4K video playback and fast file transfers.
  • Utilize the ASMedia chipset for reliable USB performance and broad compatibility with devices.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$5.99

2 Year

$8.99

3 Year

$15.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Sonnet Fusion Dual PCIe Card Specifications

  • Compatibility

    Mac: Mac Pro 5,1) (Mid 2010 & Mid 2012) with available full-length PCIe slot
    Mac Pro 7,1 (2019) [currently not Big Sur compatible]
    macOS 10.12.6+
    macOS Big Sur as follows:
    Compatible when installed in a Thunderbolt to PCIe Card Expansion System
    Mac Pro 7,1 (2019) requires version 11.3+

  • Compatibility (Contd.)

    Windows (Contd.): Windows 11, 10
    Windows Server 2019, 2016 (64-bit editions)

    Linux: Computer with PCIe slots
    Linux Kernel 5.4.0+
    Ubuntu 20.04.1+

    Thunderbolt: Mac (Intel or M1) computer via a Thunderbolt PCIe card expansion system with available full-length PCIe slot
    Windows computer via a Thunderbolt PCIe card expansion system with available full-length PCIe slot

  • Compatibility (Contd..)

    Thunderbolt (Contd.): Linux computer via a Thunderbolt PCIe card expansion system with available full-length PCIe slot

  • Form Factor

    Full-height, full-length PCIe card

  • Bus Interface

    PCI Express 3.0 x2

  • Internal Connectors

    2x SATA (Unspecified Pin Count) SATA III 6 Gb/s

  • External Connector

    1x USB Type-C USB 3.1 / USB 3.2 Gen 2 10 Gb/s

  • SSDs Supported

    SATA 6 Gb/s

  • Supported Drive Configurations

    RAID 0
    RAID 1
    Span
    JBOD

  • S.M.A.R.T.

    Status Data Reporting Support: No

  • Peripherals Supported

    Industry standard USB 3.2 Gen 1, 2 & 2x2; USB 3.1 Gen 1 & 2; USB 3.0, 2.0, and 1.1
    Thunderbolt 3-only peripherals are NOT supported

  • Bus-powered Peripherals Supported

    HD, SSD, SSD RAID
    3.0A advertised using USB CC (Channel Configuration)
    Up to 15W for operation or charging

  • Cables Supported

    USB-C 10Gbps
    USB-C 5Gbps
    Thunderbolt 3 40Gbps (0.5- and 0.7-meter only)
    Thunderbolt 3 20Gbps

  • USB Chipset

    ASMedia 3142
    ASMedia 1352R

  • USB Standard

    Complies with OHCI (Open Host Controller Interface), EHCI (Enhanced Host Controller Interface), and xHCI (eXtensible Host Controller Interface) standards

  • UASP

    USB attached SCSI protocol supported under macOS 10.12+, Windows 10

  • Number of Devices Supported

    Up to 31

  • Hot Plug

    Supports hot-pluggable and hot swappable device connection

  • Boot Support

    No computers support booting at this time

  • RoHS Compliant

    Yes

  • UPC Code

    732311012914

About Sonnet Fusion Dual PCIe Card

With the Sonnet Fusion Dual 2.5" SATA SSD RAID PCIe Card, elevate your system's storage capabilities with a seamless and robust solution. This high-performance PCIe 3.0 card integrates a hardware RAID controller and a 10Gbps USB-C port, designed for those who demand fast, high-capacity internal storage for their desktop or server environments.

Harness the power of dual SSDs by installing up to two 2.5-inch SATA SSDs (sold separately) directly into a full-length PCIe card slot, eliminating the need for additional power or data cables, adapters, or mounting trays. This streamlined setup allows for a clean and efficient upgrade, supporting a total capacity of up to 16TB.

Experience exceptional SSD performance with data transfer speeds reaching up to 1000 MB/s, ensuring swift and reliable access to your data. The onboard hardware RAID controller offers versatility with support for RAID 0, RAID 1, Span, and JBOD configurations across macOS, Windows, and Linux platforms, catering to a variety of user preferences and requirements.

The inclusion of a USB 3.2 Gen 2 USB-C port on the Fusion Dual 2.5" SSD RAID PCIe Card adds another layer of connectivity. This SuperSpeed USB-C port facilitates data transfers up to 1000 MB/s and delivers up to 15W of power, accommodating bus-powered SSDs, SSD RAIDs, or hard drive devices without the need for an additional card.

Optimized for Thunderbolt, this card achieves full performance when used in Sonnet Thunderbolt expansion systems, making it an ideal choice for Mac, Windows, and Linux users with Thunderbolt 2 or Thunderbolt 3 ports who lack PCIe card slots.

The onboard RAID controller is engineered for peak performance, offering a range of configurations to suit your storage strategy:

- Fast: Select RAID 0 for maximum performance.
- Volume: Opt for Span to create a large, unified volume across both drives.
- Safe: Choose RAID 1 for a mirrored backup, ensuring data integrity.
- JBOD: Ideal for pro audio users, JBOD allows for the management of multiple audio tracks.

Switching between these configurations is straightforward, with no software installation or complex procedures required - a simple turn of a switch and a button press is all it takes.

For those with Thunderbolt ports, the Fusion Dual 2.5" SSD RAID PCIe Card is a game-changer. Connect two SSDs through a single cable, leveraging the card's full performance within a Sonnet Thunderbolt 3 or Thunderbolt 2 to PCIe card expansion system.

Upgrade your storage setup with the Sonnet Fusion Dual 2.5" SATA SSD RAID PCIe Card, the advanced, durable, and reliable choice for professionals seeking to enhance their system's internal storage with ease and efficiency.

Sonnet Fusion Dual PCIe Card Features

  • Add up to 16TB of SSD Storage
  • Great SSD Performance - Supports data transfers speeds up to 1000 MB/s
  • Onboard Hardware RAID Controller
  • USB 3.2 Gen 2 USB-C Port
  • Great USB Performance
  • Supports a USB bus-powered SSD, SSD RAID, or hard drive device with up to 15W power
  • Optimized for Thunderbolt
  • Mac, Windows & Linux Compatible

Key Features

  • Boost storage with this Sonnet PCIe card, supporting dual 2.5" SATA SSDs for fast data access.
  • Create a RAID 0 or 1 array for redundancy or speed with this versatile SATA SSD RAID card.
  • Connect via USB-C; this PCIe card supports USB 3.2 Gen 2 for up to 10Gbps transfer speeds.
  • Expand your Mac Pro or Windows PC with this easy-to-install PCIe card for SSD upgrades.
  • Perfect for media editing; this card ensures smooth 4K video playback and fast file transfers.
  • Utilize the ASMedia chipset for reliable USB performance and broad compatibility with devices.

What's in the box:

  • Sonnet Fusion Dual 2.5" SATA SSD RAID PCIe Card
  • 8x Drive Mounting Screws
  • Documentation
  • Sonnet 2 Year Limited Warranty
