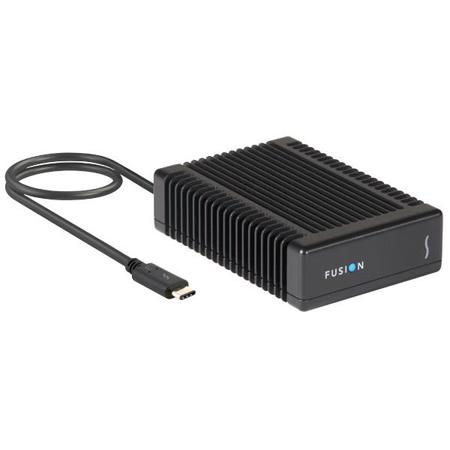

Sonnet 1TB Fusion Thunderbolt 3 PCIe Flash Drive

SKU: SNFUSTB31TB

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Sonnet PCIe Flash Drive Specifications

Hardware

Hardware

Jump to...
  • Form Factor

    Portable storage enclosure

  • Bus Interface

    40Gbps Thunderbolt 3

  • Power

    Bus-powered via Thunderbolt connection

  • Operating Temperature

    0 Degree C to 35 Degree C (32 Degree F to 95 Degree F)

  • Data Transfer Speed

    Up to 2600 MB/s, depending on computer

  • RoHS Compliant

    Yes

  • Dimensions (W x D x H)

    2.8 x 4.1 x 1.25" (70 x 103.2 x 31.5mm)

  • Weight

    12.25 oz (347.28g)

OS Compatibility

Jump to...
  • Mac

    Mac with a Thunderbolt 3 port
    macOS 10.12.6+, bootable
    macOS Mojave Compatible
    Supports APFS

  • Windows

    PC with a Thunderbolt 3 port
    Windows 10, bootable

  • UPC Code

    732311012396

About Sonnet PCIe Flash Drive

Incorporating the latest PCIe Gen 3 SSD and Thunderbolt Technologies
Do your portable storage requirements include maximum performance, pocket-sized mobility, bus-powered operation, and rugged reliability? The Sonnet Fusion Thunderbolt 3 PCIe Flash Drive delivers it all:

• Stunning Performance Over Thunderbolt 3 From a Single Memory Module-No RAID 0 of multiple drives needed for maximum performance

• Bus-powered for Complete Portability-No power adapter needed

• Small and Rugged-Fits easily in your pocket, solid aluminum case

4K Video Workflow Support-In the Palm of Your Hand4K Display
Sonnet's Fusion Thunderbolt 3 PCIe Flash Drive leverages the latest advancements in solid state storage and Thunderbolt 3 technology to create a device that delivers performance unimaginable a short time ago, yet fits neatly in the palm of your hand.

It is especially well suited to serve as an ultra-fast portable scratch drive for editing raw 4K video at higher frame rates, or even performing IT duties like installing applications and operating systems. You can even employ the Fusion flash drive for instant-access media storage or as a high-performance shuttle drive.

Consistent Performance
Because the Fusion Thunderbolt 3 PCIe Flash Drive's enclosure is milled with extremely tight tolerances, it maximizes heat transfer from the specific M.2 SSD installed inside. This allows a fanless design, but, more importantly, enables the drive to operate for sustained periods, most importantly during large file transfers, without thermal-throttling of the SSD's performance, a problem encountered by competing products.

Amazing Transfer Speeds & Performance
The Fusion Thunderbolt 3 PCIe Flash Drive incorporates a PCIe Gen 3 flash controller that enables the device to outperform USB 3.0 flash drives by more than 500%, and is capable of transferring files at rates up to 2600 MB/s.

Designed with Latest SSD Technology
Sonnet designed the Fusion Thunderbolt 3 PCIe Flash Drive around a Gen 3 M.2 PCIe SSD module, the fastest standard SSD type now available. It connects directly to any computer with a Thunderbolt 3 port, or at the end of a Thunderbolt 3 device daisy chain, via a captive 0.5-meter Thunderbolt 3 (40Gbps) cable.

Replaceable Captive Cable
Through the use of a captive cable, the Fusion Thunderbolt 3 PCIe Flash Drive's Thunderbolt cable remains firmly connected to it at all times. Should the cable ever break, it can easily be replaced with an approved replacement cable available from Sonnet or a Sonnet-authorized reseller.

Pro Thunderbolt Storage
Connects one high-performance PCIe Gen 3 SSD to any computer with a Thunderbolt 3 port

Superior Performance
Transfers data at up to 2600 MB/s

Pocketable
Fits in the palm of your hand - only 2.8 x 4.1 x 1.25 inches (WxDxH)

Thunderbolt 3 Interface
Connects to any Thunderbolt 3 computer port, or at the end of a Thunderbolt 3 device daisy chain

Rugged Construction
Aluminum enclosure withstands heavy use

Bus-Powered
Powered through Thunderbolt connection; no power adapter required

Features

Ultra Performance
Data transfer rates up to 2600 MB/s to support 4K workflows

No Slowdowns
Custom milled case ensures SSD never throttles performance over time due to excessive heat generated during large file transfers

Bus-Powered
Achieve total mobility without the need for a power adapter

Pocketable
Fits in the palm of your hand

40Gbps Thunderbolt 3 Interface
Connects to any Thunderbolt 3 computer port, or at the end of a Thunderbolt 3 device daisy chain

Rugged Construction
Aluminum enclosure withstands heavy use

Thunderbolt Certified for Mac & Windows

Sonnet PCIe Flash Drive Features

  • Compatible with Mac and Windows
  • 40Gbps Thunderbolt 3 Interface
  • Bus-Powered Design
  • Pocketable - Fits In the Palm of Your Hand
  • Rugged Aluminum Construction
  • Replaceable Captive Cable - Should the cable ever break, it can easily be replaced with an approved replacement cable available from Sonnet or a Sonnet-authorized reseller.

Key Features

  • Compatible with Mac and Windows
  • 40Gbps Thunderbolt 3 Interface
  • Bus-Powered Design
  • Pocketable - Fits In the Palm of Your Hand
  • Rugged Aluminum Construction

What's in the box:

  • 1TB Fusion Thunderbolt 3 PCIe Flash Drive
  • Documentation
  • 1.6' Thunderbolt 3 Cable
  • Sonnet 1 Year Limited Warranty
