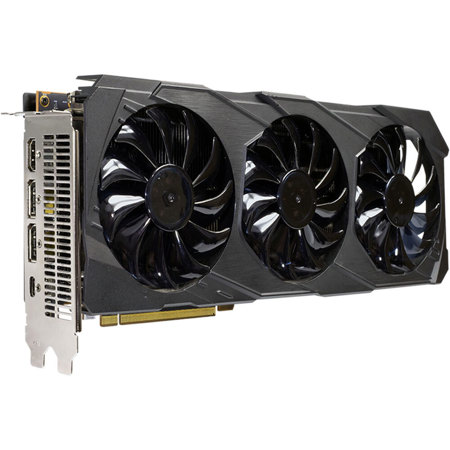

Sonnet AMD Radeon RX 6800 XT 16GB Graphics Card

SKU: SNSRX68XT16G

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Sonnet AMD Radeon RX 6800 XT Specifications

Compatibility

Compatibility

Jump to...
  • Mac Compatibility

    Mac Pro 7,1 (2019) - 2.5x wide GPU card for slot 3 (&4)
    Mac (Intel) with Thunderbolt 3 port plus Sonnet eGPU chassis
    macOS 11.6+

  • Windows Compatibility

    Windows 11 or 10 computer with 2.5 wide x16 PCIe slot

  • Thunderbolt eGPU Chassis Compatibility

    Sonnet eGFX Breakaway Box 650
    Sonnet eGPU Breakaway Box 750 or 750ex
    Sonnet DuoModo eGPU module

  • RX 6800 XT Ports Compatibility

    macOS 11.6
    HDMI: 4K 60Hz
    DisplayPorts: 5K 60Hz
    USB-C Port: Not compatible

    macOS 12
    HDMI: 4K 60Hz
    DisplayPorts: 5K 60Hz
    USB-C Port:
    LG Ultrafine 4K and 5K Thunderbolt Displays, Apple Pro Display XDR, and other Type-C displays

  • RX 6800 XT Ports Compatibility (Contd.)

    Windows 11 or 10
    HDMI: 8K 60Hz, 4K 120Hz+ (with AMD FreeSync monitor)
    DisplayPorts: 5K 60Hz, 4K 120Hz (with AMD FreeSync monitor), 8K 60Hz (using two DisplayPorts)
    USB-C Port: 6K 60Hz in Windows PC or in eGPU chassis connected to Thunderbolt 4 computer port; not compatible in eGPU chassis connected to Thunderbolt 3 computer

Hardware

Jump to...
  • Form Factor

    Full-length, full-height, 2.5-card width PCIe card

  • Bus Interface

    PCI Express 4.0 x16

  • Internal Connectors

    Two 8-pin PCIe power connectors

  • External Connectors

    One HDMI, Two DisplayPort, One USB-C

  • GPU

    AMD Radeon RX 69800 XT by AMD Certified Global Add-in Board Partner
    7nm GPU
    AMD RDNA 2 Architecture

  • Engine Clock

    Engine Clock: Up to 2015 MHz
    Boost Clock: Up to 2250 MHz

  • Stream Processors

    4608

  • Infinity Cache

    128 MB

  • Ray Accelerators

    72

  • Memory Size/Bus

    16 GB GDDR6

  • Memory Cock

    16 Gbps Effective

  • Memory Interface

    256-bit

  • Memory Bandwidth

    Up to 512 GBps

  • Displays

    Maximum 4 Displays

  • Resolution

    HDMI: 7680 x4320
    DisplayPort 1.4: 7680 x4320
    USB-C: 7680 x4320

  • DirectX Support

    12

  • Interface

    PCI-Express 4.0

  • BIOS Support

    UEFI

  • AMD Features

    AMD RDNA 2 Gaming Architecture, DirectX 12 Ultimate, Hardware Raytracing, AMD FreeSync Technology, DisplayPort 1.4 with DSC, HDMI 2.1 VRR, Video Streaming up to 8K, Radeon VR Ready Premium, AMD FidelityFX, Radeon Image Sharpening, Radeon Anti-Lag, Game Driver Optimizations, High Performance 4K Gaming

  • Cooling

    Three 90 mm fans

  • Zero RPM Fan Mode

    Yes

  • Power Consumption

    360W

Physical

Jump to...
  • Dimensions (L x W x H)

    11.7 x 4.72 x 1.97" (297 x 120 x 50mm)

  • UPC Code

    732311013416

About Sonnet AMD Radeon RX 6800 XT

Supercharge Your eGPU System
The AMD Radeon RX 6800 XT graphics card is among the most powerful GPU cards ever. With demand for it outstripping the supply, Sonnet is pleased to offer this powerhouse to professional post production customers to build or upgrade Sonnet eGPU Thunderbolt expansion systems to create ultimate performance systems.

AMD RDNA 2 Architecture

AMD Radeon RX 6800 XT - Graphics Performance Powerhouse
Powered by AMD RDNA 2 architecture, and featuring 72 powerful enhanced compute units, 128 MB of all new AMD Infinity Cache and 16GB of dedicated GDDR6 memory, the AMD Radeon RX 6800 XT graphics card is engineered to deliver unparalleled graphics performance. The 6800 XT provides pro video users cutting edge performance improvements over previous generation GPUs to significantly improve editing, rendering, color grading, animation, and special effects performance.

Power Play

Stunning eGPU Performance
The powerful AMD Radeon RX 6800 XT graphics card is a perfect fit in the 2019 Mac Pro, and Sonnet's DuoModo eGPU Module and eGPU Breakaway Box 750 or 750ex Thunderbolt to GPU card expansion systems, so we created product bundles that enable you to add tremendous graphics processing power to your computer without expansion card slots.

eGPU Applications Performance

Next Generation Speed
Connecting the AMD Radeon RX 6800 XT graphics card to your Thunderbolt-equipped computer via an eGPU Breakaway Box 750 or 750ex, or DuoModo eGPU Module delivers a remarkable performance boost to many tasks in the top video editing, visual effects, and modeling applications, cutting rendering times and enhancing VFX and color correction workflows.

Workflow

Acceleration
Whether your workflow relies on popular video editing applications such as Adobe Premiere Pro or Blackmagic Design's Da Vinci Resolve Studio, or rendering, animation, and modeling applications such as Maxon Cinema 4D, Autodesk Maya, or Blender, many pro applications rely on graphics (GPU) cards to do the heavy lifting. The AMD Radeon RX 6800 XT delivers outstanding performance for GPU-accelerated video effects, decode and encode, exports, and rendering to accelerate your applications' performance and enable you to complete your projects in less time.

Major GPU Performance Upgrade for Your 2019 Mac Pro
If you purchased a Mac Pro with the standard AMD Radeon Pro 580X, Vega II, W5500X or W5700X MPX module, then adding the AMD Radeon RX 6800 XT graphics card can deliver a significant graphics productivity boost. Whether you're editing, rendering, color correcting video, or creating VFX or 3D models, the AMD GPU card's latest graphics architecture enables greater performance!

Combine GPU Muscle Power
You can even combine the power of your Mac Pro's existing GPU with the 6800 XT-many task times on supported applications can be slashed when two GPU cards are employed. Installing the Radeon RX 6800 XT can multiply your computer's graphics processing power, enabling it to handle 4K, 5K, 6K, and 8K workflows more efficiently.

Supports Pro Display XDR
The Apple Pro Display XDR delivers stunning color, dynamic range and clarity-it's ideal for professional workflows. What it doesn't have is DisplayPort or HDMI ports. With the AMD Radeon RX 6800 XT from Sonnet, that's not a problem. This GPU includes a USB-C port that connects to the Pro Display XDR.

Key Features

Cuts Application Task Times
Cutting edge performance improvements over previous generation GPUs enable greater graphics acceleration to significantly improve editing, rendering, color grading, animation, and special effects performance.

AMD RDNA 2 Architecture
With 72 compute units, 128 MB of Infinity Cache and 16GB of GDDR6 memory, RDNA 2 delivers up to 65% more performance per watt over previous generation RDNA.

eGPU Graphics Performance Booster
Configure a Sonnet DuoModo eGPU Module, or eGPU Breakaway Box 750 or 750ex bundle that best suits your needs.

Upgrade Bundle for 2019 Mac Pro
Offers significant performance advantages over many original GPU options included with the Mac Pro. Preconfigured bundle includes custom auxiliary power cables.

Combine GPU Muscle Power
Combine a Radeon RX 6800 XT with your 2019 Mac Pro's existing GPU to multiply computer's graphics processing power.

Supports Four Displays
• 1x HDMI 2.1
• 2x DisplayPort 1.4
• 1x USB-C Alt-Mode (for 2019 Mac Pro and Windows PCs)

AAA Gaming Champ
Designed to deliver ultra-high frame rate and 4K gaming experiences.

macOS and Windows Compatible
Compatible with macOS 12 and 11; Windows 11 and 10.

Pro Display XDR Compatible
Connect Apple's 6K display to the AMD card's USB-C port to display your work with stunning color, dynamic range, and clarity.

Connects Four Displays

Room for Creativity
The Radeon RX 6800 XT graphics card offers robust display connectivity: one HDMI port with HDMI 2.1 support; two DisplayPort 1.4 ports with Display Stream Compression (DSC) support; and one USB-C port with Alt-Mode support for connecting a USB-C or Thunderbolt display.

Expand your workspace across four displays to increase your productivity - leverage the connectivity and harness the power of the AMD Radeon RX 6800 XT in a DuoModo xMac mini/eGPU Desktop system

Graphic-Intensive Gaming

Resolution Revolution
AMD Radeon RX 6800 XT is engineered to deliver powerhouse performance with vivid visuals and elevated 4K gaming experiences with ultra-high frame rates. Powerful new compute units, groundbreaking AMD Infinity Cache, and up to 16GB of dedicated GDDR6 memory make this all possible. AMD Radeon RX 6800 XT pulls you into the action with realistic lighting, shadows, and reflections thanks to immersive gaming technologies.

Sonnet AMD Radeon RX 6800 XT Features

  • AMD GPU Architecture: RDNA 2
  • Compute Units: 72
  • Stream Processors: 4608
  • GDDR6 Memory: 16GB
  • Infinity Cache: 128 MB
  • Engine Clock: Up to 2015 MHz
  • Boost Clock: Up to 2250 MHz

Key Features

  • AMD GPU Architecture: RDNA 2
  • Compute Units: 72
  • Stream Processors: 4608
  • GDDR6 Memory: 16GB
  • Infinity Cache: 128 MB
  • Engine Clock: Up to 2015 MHz

What's in the box:

  • Sonnet AMD Radeon RX 6800 XT 16GB Graphics Card
  • Sonnet 2 Year Limited Warranty
