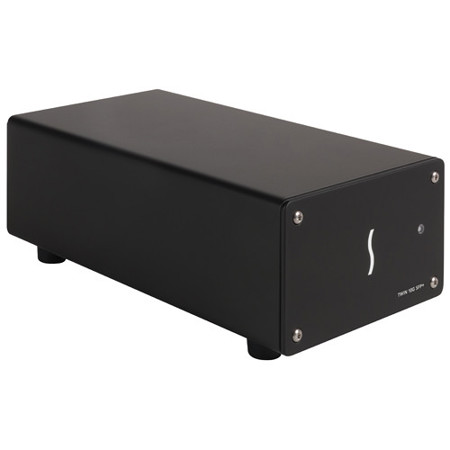

Sonnet Twin 10G SFP+ Dual-Port 10-Gigabit Ethernet Thunderbolt 2 Adapter

SKU: SNT10GSFPTB2

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Sonnet Twin 10G SFP+ Specifications

  • External Connectors

    Two Thunderbolt 2 ports
    Two SFP+ sockets
    12V power input

  • 10GbE Controller

    Intel 82599

  • Network

    10 Gigabit Ethernet

  • Link Aggregation

    Supported on macOS, Windows Server Editions, and Windows 7

  • Packets

    Maximum packet size: 9000 bytes (jumbo packets)

  • Data rate supported per port

    10Gb/s

  • Stateless Offloads

    TCP, UDP and IPv4 checksum offloading
    TSO (TCP Segmentation Offload, AKA Large Send Offload)
    LRO (Large Receive Offload)

  • Power Adapter

    Universal 80W, 100-240V, 50-60 Hz

  • Operating Temperature

    0 to 35 deg. C (32 to 95 deg. F)

  • RoHS Compliant

    Yes

  • Mac Compatibility

    Mac with a Thunderbolt or Thunderbolt 2 port
    OS X 10.8.5+
    macOS Sierra compatible

  • PC Compatibility

    PC with a Thunderbolt 2 port
    64-bit editions of Windows 10, 8, 7

  • Dimensions (WxDxH)

    4 x 8.25 x 2.75" (10.16 x 20.96 x 6.99cm)

  • Weight

    2.95 lbs (1.34kg) (including power adapter)

  • UPC Code

    732311011931

About Sonnet Twin 10G SFP+

Lightning-Fast 10GbE Over Thunderbolt 2
Do you need a simple and cost-effective way to connect your computer to a high-speed 10 Gigabit Ethernet (10GbE) network? By offering ten times the performance of Gigabit Ethernet and more bandwidth over shared networks and by supporting specialized applications such as using high-performance shared storage systems for editing HD video, it's no wonder that 10 Gigabit Ethernet use has skyrocketed-the problem is that the vast majority of computers don't include a native connection. Sonnet's Twin 10G SFP+ 10GbE adapter is the powerfully simple solution for you to add lightning fast 10 Gigabit Ethernet network connectivity to any Mac with Thunderbolt 2 or Thunderbolt ports or any Windows PC with a Thunderbolt 2 port.

Adds High-Performance 10GbE SFP+ Connectivity
Powerfully simple way to add two 10GbE SFP+ connections to your Mac with Thunderbolt 2 or Thunderbolt ports or Windows PC with a Thunderbolt 2 port

Connection Flexibility
Choose two short-range or two long-range SFP+ transceivers plus LC fiber optical cables (all sold separately) or two SFP+ direct-attach Twinax copper cables (sold separately) to connect the Twin 10G SFP+ 10GbE adapter to your network or storage

Compact and Light
Adapter is small enough to sit on most any work surface

Remarkably Quiet
Temperature-controlled, variable-speed fan automatically and quietly cools the adapter

Rugged Aluminum Housing
Provides robust and secure protection for any environment

Upgradeable
When available, upgrade to 40Gbps Thunderbolt 3 Technology with a replacement Thunderbolt 3 interface card

Easy Setup
Configured through OS X Network control panel or Windows Device Manager

Supports Transparent Failover
Keeps your computer connected in case a single cable is disconnected or one of the ports fails

Supports Link Aggregation (Teaming)
Increases throughput beyond what a single connection can sustain

Two Thunderbolt 2 Ports
Daisy chain up to six devices to a single port on the host computer

Small. Light. Quiet
Measuring a scant 4 inches wide by 8.25 inches long by 2.75 inches tall, the Twin 10G SFP+ 10GbE adapter is small enough to sit on most any work surface, but large enough to support adequate airflow inside the case and enable its temperature-controlled, variable-speed fan to keep the adapter running cool, whisper-quiet at all times. Constructed of rugged and lightweight aluminum, the outer shell securely protects the inner circuitry.

Simple Setup, Smart Performance
Setup is easy-connect the Twin 10G SFP+ 10GbE adapter to the host computer via the included Thunderbolt cable, download and install a driver, connect the adapter to the switch or device's 10GbE ports via LC fiber optic cables (SFP+ transceivers and fiber optic cables sold separately) or SFP+ direct-attach copper cables (sold separately) and then configure the adapter through the OS X Network control panel or Windows Device Manager. The second Thunderbolt 2 port supports daisy chaining, supporting the connection of up to six devices to a single port on the host computer.

This Sonnet adapter's increased throughput performance and low host-CPU utilization are achieved with functions such as flow control support, 64-bit address support for systems using more than 4GB of physical memory; and stateless offloads such as TCP, UDP and IPv4 checksum offloading, enabling your computer to perform better while large files transfers or high I/O operations take place. With its dual ports, the Sonnet adapter supports transparent failover to keep your computer connected in case a single cable is disconnected or one of the ports fails and it also supports link aggregation (teaming) for increased throughput!

Flexibility of SFP+ Transceiver Choices
Sonnet offers three SFP+ transceiver options (sold separately)-a short-range multi-mode fiber module (up to 300 meters), part numberG10E-SFP-SR; a long-range single-mode fiber module (up to 10 kilometers), part number G10E-SFP-LR; and a 10GBASE-T copper module, part number G10E-SFP-T (Cat 6A cable up to 100 meters). Alternatively, you can use cost-effective direct-attach Twinax copper cables up to 10 meters long (sold separately).

Thunderbolt Cable and ThunderLok Included
Sonnet includes a Thunderbolt cable to connect the Twin 10G SFP+ 10GbE adapter to your computer and a ThunderLok Thunderbolt connector retainer clip to secure the cable to the Twin 10G adapter. Thunderbolt connectors are held in place by friction, which works well in situations where equipment remains undisturbed while operating. But when there's a chance of movement nearby, there's a chance the Thunderbolt cable can be unintentionally unplugged, possibly leading to loss of your work or data.

Sonnet's ThunderLok prevents accidental cable disconnections from the Echo chassis and is easy to install and use-just slide it over one end of the cable and then plug in the connector and secure it to the chassis by turning a thumbscrew. Because of its unique design, ThunderLok does not attach to the connector, but remains on the cable so it won't get lost when not in use.

Sonnet Twin 10G SFP+ Features

  • Flow control support
  • Message Signaled Interrupts (MSI)
  • RSS (Receive-Side Scaling)
  • Interrupt coalescing
  • Multicast filtering
  • 64-bit address support for systems using more than 4GB of physical memory

What's in the box:

  • Sonnet Twin 10G SFP+ Dual-Port 10-Gigabit Ethernet Thunderbolt 2 Adapter
  • 0.5m Thunderbolt Cable
  • ThunderLok 3 Thunderbolt Retainer Clip
  • Universal Power Adapter
  • Power Cord
  • Documentation
  • Sonnet 1 Year Limited Warranty
