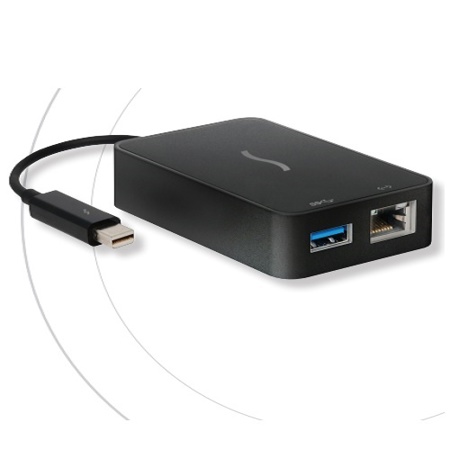

Sonnet USB 3.0+ Gigabit Ethernet Thunderbolt Adapter, 5Gbps Data Transfer Rate

SKU: SNTBUSB3GE

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2016-12-26T17:10:42

Rated 5 out of 5

It simply works!

Does exactly what it's meant to do. Perfect solution for what I need. The other option would've been a bulkier dock worth at least couple hundred dollars.

diego l.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Sonnet USB 3.0+ Gigabit Ethernet Thunderbolt Adapter Specifications

  • Form Factor

    Thunderbolt adapter

  • Bus Interface

    10Gbps Thunderbolt

  • External Connectors

    USB 3.0
    RJ-45 (Gigabit Ethernet)

  • RoHS Compliant

    Yes

  • Drives Supported

    One (or more with hardware raid enclosure)

  • Data Transfer Rate

    5Gb/s USB 3.0 data rate
    Up to 350MB/s achievable data bandwidth

  • USB 3.0 Support: Standard

    USB Specification v. 3.0/2.0 compatible. Complies with xHCI (Extensible Host Controller Interface)

  • Peripherals Supported

    Supports industry standard USB 3.0, 2.0 and 1.1 peripherals

  • Cables Supported

    USB 3.0 with Standard-A male connector
    USB 2.0 with Standard-A male connector

  • Chipset

    ASMedia

  • Number of Devices Supported

    Up to 31

  • USB 3.0 Support: Hot Plug

    Supports hot-pluggable and hot swappable device connection

  • Network Connector

    One RJ-45 connector supports 1000Mbps, 100Mbps, 10Mbps network speeds and Auto-MDI/MDI-X

  • Gigabit Ethernet Support: Standard

    IEEE 802.3 10BaseT
    IEEE 802.3u 100BaseT
    IEEE 802.3ad 1000BaseT
    802.3az Energy Efficient Ethernet

  • Network

    Gigabit Ethernet (1000BaseT, 100BaseTX, 10BaseT)

  • Transmission Rates

    1000Mbps
    100Mbps
    10Mbps

  • Packets

    Maximum packet size: 9000 bytes

  • Gigabit Ethernet Support: Hot Plug

    Supports hot-pluggable and hot swappable device connection

  • Mac Compatibility

    Mac with a Thunderbolt or Thunderbolt 2 port
    OS X 10.8.5+
    OS X Yosemite compatible

  • PC Compatibility

    PC with a Thunderbolt 2 port
    Windows 8, 7

  • Dimensions (W x D x H)

    2.05 x 3.15 x .87" / 5.21 x 8.00 x 2.21cm

  • UPC Code

    732311011108

About Sonnet USB 3.0+ Gigabit Ethernet Thunderbolt Adapter

FEATURED REVIEWS

It simply works!

By diego l.

Does exactly what it's meant to do. Perfect solution for what I need. The other option would've been a bulkier dock worth at least couple hundred dollars.

Features
Adds Two High-Throughput Interfaces with One Adapter: Connects one 5.0 Gb/s USB 3.0 port and one Gigabit Ethernet (RJ-45) port to computers with Thunderbolt ports.
10 Gbps Thunderbolt interface: Enables fast data transfers between drives and computer.
Built-in Thunderbolt Cable: Flexible 5" (125 mm) Thunderbolt cable connects directly to your computer or at the end of a Thunderbolt daisy chain.
Supports Multi-Drive Enclosures: USB port support drive enclosures with hardware RAID controllers.
Broad USB 3.0 Device Support & Compatibility: Supports storage, hubs and other USB-IF compliant USB 3.0 devices; compatible with USB 2.0 devices.
Adds RJ-45 Gigabit Ethernet: Simple way to add RJ-45 Gigabit Ethernet connectivity to any compatible computer.
1000/100/10Base-T Auto Negotiation: Configures to highest performance transmission mode supported.
Supports Jumbo Packet Transfers: Transfer large amount of data with less effort.
Bus-powered Operation: No AC power adapter required.

Add Fast Gigabit Ethernet and SuperSpeed USB 3.0 Connectivity to Your Computer with One Adapter
Do you need to connect high-speed USB 3.0 storage devices to your computer What about getting connected to a wired network Sonnet's USB 3.0 + Gigabit Ethernet Thunderbolt Adapter provides you a simple, economical way to connect one USB 3.0 device and to add a Gigabit Ethernet interface to any Mac with a Thunderbolt 2 or Thunderbolt port or Windows computer with Thunderbolt 2 ports. Featuring 10Gbps Thunderbolt technology, this compact adapter connects directly to your computer or at the end of a Thunderbolt device chain with its built-in Thunderbolt cable to enable fast data transfers between your drives, computer and network.

USB 3.0 for Fast Performance and Common Connectivity
Most drives available today include USB 3.0 interfaces. Although you can connect them to the USB 2.0 ports on your computer, their performance would be reduced by as much as 85 percent! This useful adapter offers native USB 3.0 support to ensure great performance from the fast drives you connect, enabling data transfers at up to 350 MB/s. Need to connect more than one drive It works with multi-drive enclosures(1) with hardware raid controllers, too. This adapter also supports hubs and other USB 3.0 devices and is backward compatible with USB 2.0 devices(2). If your computer already has USB 3.0 onboard, this adapter provides another handy port.

Connect External USB 3.0 Drives at up to 350 MB/s

Adds USB 3.0 Port
Connect devices such as external backup drives, hubs and iDevices

Adds Gigabit Ethernet Port
Connect a wired router, switch or modem

Gigabit Ethernet for Fast Wired Networking
With the introduction of new, thinner, lighter computers, manufacturers continue to remove ports that were once standard, including the RJ-45 connector for Ethernet, the standard wired networking interface. For many users, this leaves a connectivity gap. Connecting to a network via Wi-Fi isn't always desirable or practical and may not be an option where only a wired network connection is available. Sonnet's USB 3.0 + Gigabit Ethernet Thunderbolt Adapter instantly bridges the gap left by the missing onboard port, plugging in between your computer's Thunderbolt port and the RJ-45 network connection and enabling file access and sharing at up to 1 Gb/s.

This Sonnet adapter supports 1000/100/10BaseT auto-negotiation and full/half duplex communication, enabling it to easily connect with most networks at the highest performance transmission mode supported. It also supports jumbo packet transfers (9000 byte packets compared to 1500 byte standard packets) to provide higher performance and reduced overhead when transferring large files. Handy LEDs indicate network activity and link speeds at a glance.

Simple to Set Up, Simple to Use
When used with a Mac computer, the USB 3.0 + Gigabit Ethernet Thunderbolt Adapter requires no driver installation - the necessary drivers are already installed - just plug it into your computer and it works. When connected to a Windows PC, a simple Ethernet driver download and installation is all that's required to get you going. Setup is simple - configure the adapter settings through the OS X Network control panel or Windows Device Manager.

This device is bus-powered, so there's no need to connect an AC power adapter, making it perfect for use anywhere. Wherever you use it, the Sonnet USB 3.0 + Gigabit Ethernet Thunderbolt Adapter is a simple and cost-effective solution that enables you to connect your USB 3.0 peripheral and get connected to a wired network at the same time, without hassle.

What's in the box:

  • Sonnet USB 3.0+ Gigabit Ethernet Thunderbolt Adapter
  • Documentation
  • Sonnet 1 Year Warranty
