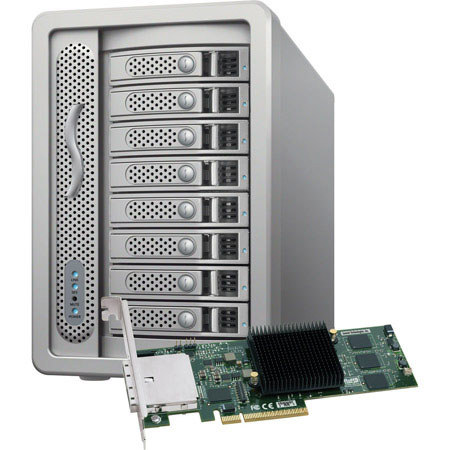

Sonnet Fusion DX800RAID 32TB 8-Drive SATA Storage System with RAID Controller, 6Gbps eSATA Interface, 1100MBps Read/1000MBps Write Speed

The Sonnet Fusion DX800RAID 32TB 8-Drive SATA Storage System deliver breakthrough performance and proven data safety to meet those needs with affordable, direct attached disk arrays. Fusion DX800RAID storage system is designed for work environments where high performance and fault tolerance are critical and simple expandability a must. They are fast enough to easily handle uncompressed HD while protecting the data at the same time, yet flexible enough to be configured for any workflow.

Under real world use (drives 85% filled and fragmented) with its drives formatted as a RAID 5 group (eight drives striped with parity across all group members), a Fusion DX800RAID storage system is capable of single-stream 2K (2048 x 1556) LOG RGB capture and playback. It can achieve up to 1100 MB/sec read, 1000 MB/sec write (AJA Kona 1080HD test), fast enough to handle a single stream of uncompressed 10-bit 1080 4:4:4 HD, or multiple streams of ProRes 422, uncompressed 8-bit 1080 HD, DV, HDV and DVCPRO video.

Fusion DX800RAID storage systems achieve high stream counts because of their ability to consistently and efficiently sustain data throughput, a result of incorporating ATTO Technologies' exclusive Advanced Data Streaming (ADS) Technology in the included Sonnet PCI Express (PCIe) RAID controller card. ADS provides controlled acceleration of data transfers, compensating for transfer speed peaks and drops to maintain a consistent data flow, allowing more streams without dropping frames for the bandwidth available.

Enhanced Data Security
With drives formatted as a RAID 4, 5, 6, or DVRAID protected group, Fusion DX800RAID storage systems provide data protection in the event of a drive failure (two drives when formatted as a RAID 6 group). You can configure your system to provide visual and audible alerts, including e-mail notification in the event of a drive failure. A drive can be swapped out and the RAID group rebuilt in hours, or you can tune the rebuild priority to deliver full read performance during the process to keep you working while the RAID group rebuilds in the background. Fusion DX800RAID storage systems provide additional protection beyond basic data security.

RAID Flexibility
Fusion DX800RAID systems support RAID 4 (DVRAID), 5, 6 and 10 for balanced performance and protection, RAID 1 for ultimate redundancy and RAID 0 for pure, unadulterated speed; JBOD support is available, too. Fusion DX800RAID systems, even support hot spares-you can set up your RAID group so that one or more designated hot spare drives wait unused in the background to automatically replace a failed drive without you having to lift a finger. All this flexibility is accomplished without switches-a simple to use configuration utility enables you to optimize your setup for specific workflow requirements.

Status Supervisor
The reliability of the Fusion DX800RAID is further enhanced through SES (SCSI Enclosure Services) 2.0 compliance, a feature more commonly found on enterprise storage systems and enhanced S.M.A.R.T (Self-Monitoring Analysis and Reporting Technology) data reporting for each hard drive installed in the system. Built into the Fusion DX800RAID enclosure, SES functionality provides enhanced real-time monitoring and reporting of drive, power supply and temperature status, with real time results displayed in utility application screens and the illumination of conveniently placed LEDs on the enclosure.

Master Controller
The heart of a Fusion DX800RAID storage system is the Sonnet 6Gb/s SAS/SATA RAID controller. Offering eight lanes of PCIe 2.0 connectivity, this powerhouse adapter is based on the latest-generation Marvell 88RC9580 RAID-on-Chip (ROC) processor, which handles the throughput from all the drives with plenty of overhead. The Sonnet 6Gb/s SAS/SATA RAID controller is configured with 512MB of ECC-protected cache memory, especially important to maintain data stream writes as the disk array nears capacity.

Driving Force
Fusion storage systems employ Enterprise/RAID Edition hard drives or select, Sonnet certified drives that have been selected for their superior performance, error handling and reliability characteristics, especially when used in RAID groups. These drives are subjected to hours of additional, stringent testing to check for soft errors, vibration and other reliability predictors. Just the sturdiest drives pass these tests and are prepared with special RAID-optimized firmware to become the building blocks of a super-reliable Fusion storage system.

Excellent Expandability
Each DX800RAID storage system features an internal SAS (Serial Attached SCSI) expander that enables you to connect additional DX800RAID enclosures in a daisy chain, no additional RAID controller card needed. This simplifies installation and significantly reduces your cost to expand capacity. If your needs are simpler, each system includes user-swappable drive modules so you can easily change sets of drives as you go.

Versatile Performance
This system is ideal for use in mixed environments-various operating systems, editing applications and output demands requiring the flexibility and interoperability that Fusion DX800RAID storage systems provide. Fusion DX800RAID systems support OS x, Windows 8, Windows 7, Windows Vista, Windows xP, Windows Server 2008, Windows Server 2003 and Linux. They are compatible with capture cards from AJA, Blackmagic Design, Matrox and Bluefish444 and work with all mainstream video editing applications including Apple Final Cut Pro X and Adobe Premiere Pro.
