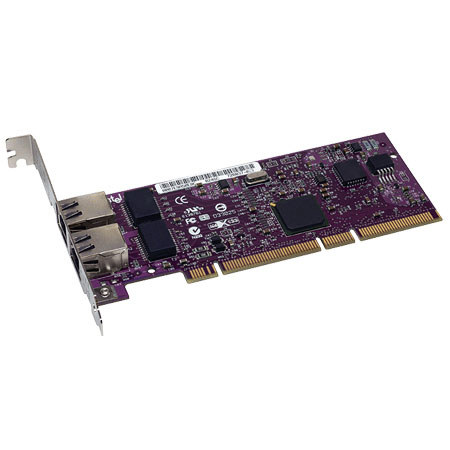

Sonnet Presto Gigabit Ethernet Server 2-Port PCI Card (Supports Jumbo Packets and Link Aggregation)

SKU: SNTGE1000L2X

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Sonnet GE1000LA2X Presto Gigabit Ethernet 2 PCI Card Specifications

  • Network Connectors

    Two RJ-45 connectors support 1000Mbps, 100Mbps, 10Mbps network speed and Auto-MDI/MDI-X

  • Bus Interface

    PCI-X, 64-bit 133 MHz;
    32-bit PCI bus 2.2 compliant, works in any PCI-X or PCI slot

  • Standards

    IEEE 802.3 10BaseT;
    IEEE 802.3u 100BaseT;
    IEEE 802.3ad 1000BaseT

  • IRQ Line

    Assigned by system

  • I/O Address

    Assigned by system

  • Transmission Rates

    1000Mbps, 100Mbps, 10Mbps

  • Link

    Supports Link Aggregation

  • Packets

    Maximum packet size: 9000 bytes (Jumbo packets)

  • Compatibility

    Mac Compatibility: Xserve G5
    Xserve (Slot Load)
    Xserve (2002)
    Mac OS X Server Version 10.4.11+
    Power Mac G5 with PCI-X or PCI slots
    Power Mac G4
    Mac OS X Version 10.5, 10.4.11
    Windows Compatibility: Server (with PCI slot)
    PC (with PCI slot)
    Windows Server 2003
    Windows 7
    Windows Vista
    Windows XP

  • Network

    Gigabit Ethernet (1000BaseT, 100BaseTX, 10BaseT)

  • Network Power

    UTP x 2 (Auto-MDI/MDI-X)

  • UPC Code

    732311006609

About Sonnet GE1000LA2X Presto Gigabit Ethernet 2 PCI Card

Whether you need to add more Gigabit Ethernet ports to your computer for improved performance and reliability or the ability to connect to more networks, get a Sonnet Presto Gigabit Server dual-port Gigabit Ethernet PCI-x adapter card for an advanced networking solution! This 64-bit, 133MHz, Intel Gigabit controller-based PCI-x card supports link aggregation on its own and with your computer's onboard Gigabit Ethernet ports and full duplex communication to achieve up to 2000 Mbps and faster transfer rates - the ideal solution for high-bandwidth data transfer requirements.

Presto Gigabit Ethernet Server also supports 9000 byte jumbo packet transfers (compared to 1500 byte standard packets) to support higher performance and reduced overhead when transferring large files. Should a cable get unplugged or a port fail, Presto Gigabit Server provides transparent failover protection, so your computer remains connected to the network. Presto Gigabit Server supports gigabit speeds over common CAT-5 cabling, so costly cable replacement is unnecessary.

If your computer already has onboard Gigabit Ethernet, you can add a Presto Gigabit Server and use it for dedicated connection to a printer, AirPort Extreme base station, DSL or cable modem, or a video server, while leaving your onboard Gigabit Ethernet port(s) available for other connections. Presto Gigabit Server is compatible in Xserve G5, xserve (Slot Load), xserve (2002), Power Mac G5 (with PCI-x or PCI slots) Power Mac G4, Power Macintosh G3 Server and Blue & White and Windows computers and servers with PCI-x or PCI slots.

Offering simple configuration, this Sonnet card is easy to use and its support for 1000/100/10BaseT auto-negotiation and full/half duplex communication enable it to be used in most networks.

Sonnet GE1000LA2X Presto Gigabit Ethernet 2 PCI Card Features

  • Simple way to add Gigabit Ethernet connectivity to any compatible computer
  • Supports gigabit speeds on common CAT-5 cabling - no need for costly cable replacement
  • 64-bit, 133 MHz PCI-X card with Intel 82546 Gigabit controller
  • Supports link aggregation on its own and with onboard Gigabit Ethernet ports
  • Supports transparent failover
  • Full/half duplex
  • 1000/100/10BaseT auto-negotiation

Key Features

  • Simple way to add Gigabit Ethernet connectivity to any compatible computer
  • 64-bit, 133 MHz PCI-X card
  • Supports link aggregation on its own
  • Supports transparent failover
  • Full/half duplex
  • 1000/100/10BaseT auto-negotiation

What's in the box:

  • Sonnet Presto Gigabit Ethernet Server 2-Port PCI Card
  • Presto Gigabit Server PCI-X Ethernet Network Adapter Card
  • Quick Start Guide
  • Software CD
  • Sonnet 1 Year Limited Warranty
