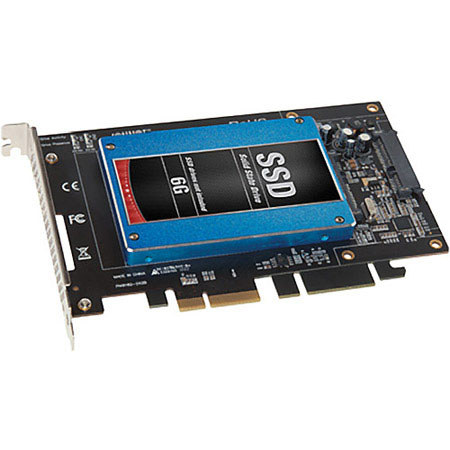

Sonnet Tempo 6Gb/s SATA PCI Express 2.5" Solid State Drive Card, Up to 660MB/s Data Transfer Rate, Thunderbolt Compatible

SKU: SNTTSATSSDE2 MFR: TSATA6-SSD-E2
$49.99
Earn VIP Reward Points

Key Features

  • Boost your system's performance with this SATA PCI Express SSD card for faster data access.
  • Experience rapid data transfer rates up to 660MB/s, enhancing your workflow efficiency today.
  • Compatible with Mac Pro, Power Mac G5, and Windows PCs, ensuring versatile connectivity options.
  • Utilize this SSD card for quick boot-ups and application loading, saving you valuable time.
  • Supports single SSD or up to six SSDs in RAID 0, ideal for demanding storage configurations.
  • Upgrade your computer easily with this reliable Sonnet SATA card, backed by a one-year warranty.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$3.99

2 Year

$5.99

3 Year

$8.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Sonnet TSATA6-SSD-E2 Specifications

  • Internal Connectors

    2 x SATA Connectors

  • Drives Supported

    SATA 6 Gb/s, SATA 3 Gb/s and SATA 1.5 Gb/s

  • Form Factor

    2.5"

  • Data Transfer Rate

    Up to 660 MB/s

  • Firmware

    Flash-ROM upgradeable to latest firmware version

  • Boot Support

    Single SSD or up to six SSDs in a RAID 0:
    Mac Pro 3,1 (early 2008 and newer)
    Any Thunderbolt Mac
    Single SSD only:
    Windows 7, 8 or Server 2012 PCs

  • RoHS Compliant

    Yes

  • Mac Compatibility

    Mac Pro (with PCIe slots)
    Power Mac G5
    Xserve (Intel with PCIe slots)
    Any Thunderbolt Mac with Thunderbolt PCIe expansion chassis (such as Sonnet's Echo Express Pro, Echo Express or Echo Express SE)
    OS X 10.5+
    OS X Server 10.5+
    OS X Mavericks compatible

  • Windows Compatibility

    PC (with PCIe slots)
    Windows 8, Windows 7, Windows Vista
    Windows Server 2012, 2008 R2, 2008

  • Thunderbolt Compatibility

    Any computer with a Thunderbolt port and Thunderbolt PCIe expansion chassis (such as Sonnet's Echo Express Pro, Echo Express, or Echo Express SE)
    Sonnet's xMac mini Server

  • UPC Code

    732311009181

About Sonnet TSATA6-SSD-E2

With the Sonnet Tempo 6Gb/s SATA PCI Express 2.5" Solid State Drive Card, you can elevate your computer's performance to new heights. This high-performance PCIe card is designed to control two SSDs, supporting both OS X and Windows RAID features for enhanced data security and performance.

The Tempo SSD Card is equipped with a 6Gb/s SATA controller chipset and a PCIe 2.0 x2 interface, delivering read speeds of up to 660MB/s when paired with two SSDs configured as a RAID 0 set. This fast data transfer rate makes it an ideal choice for demanding applications such as video editing, gaming, and other high-performance tasks.

Installation is a breeze thanks to AHCI compliance. Simply attach your SSDs with the provided screws, mount the card in an available PCIe slot, and power on your computer. The necessary drivers are installed automatically, saving you time and effort. Additionally, the card supports S.M.A.R.T. data reporting, allowing you to monitor the health of your drives and ensure optimal performance.

The Tempo SSD Card offers a unique modular design that adapts to your needs. It starts as a half-length, full-height card that can accommodate one SSD. However, with the included extension plate, it transforms into a full-length card that can house an additional SSD. This flexibility allows you to upgrade your storage capacity or performance as your needs evolve.

Unlike other PCIe SSD cards that rely on proprietary, premium-priced SSD modules, the Tempo SSD Card uses standard 2.5" SATA drives. This gives you the freedom to choose from a wide variety of SSDs that best suit your capacity, performance needs, and budget.

The Tempo SSD Card is also Thunderbolt compatible, making it an excellent solution for systems with a Thunderbolt connection but no PCIe slot. It's perfect for use in Sonnet's Echo Express ProThunderbolt Expansion Chassis for PCIe Cards or the xMac mini Server PCIe 2.0 expansion system/1U rackmount enclosure for Mac mini with Thunderbolt ports. This compatibility allows you to add high-speed SSDs to iMac, Mac mini, MacBook Air, and MacBook Pro computers.

In summary, the Sonnet Tempo 6Gb/s SATA PCI Express 2.5" Solid State Drive Card offers a reliable, advanced, and versatile solution for enhancing your computer's storage and performance.

Sonnet TSATA6-SSD-E2 Features

  • 2 x SATA Internal Connectors
  • Ultra-Fast SATA 6Gbps Interface
  • Up to 660 MB/s Data Transfer Speed
  • Thunderbolt Compatible

Key Features

  • Boost your system's performance with this SATA PCI Express SSD card for faster data access.
  • Experience rapid data transfer rates up to 660MB/s, enhancing your workflow efficiency today.
  • Compatible with Mac Pro, Power Mac G5, and Windows PCs, ensuring versatile connectivity options.
  • Utilize this SSD card for quick boot-ups and application loading, saving you valuable time.
  • Supports single SSD or up to six SSDs in RAID 0, ideal for demanding storage configurations.
  • Upgrade your computer easily with this reliable Sonnet SATA card, backed by a one-year warranty.

What's in the box:

  • Sonnet Tempo 6Gb/s SATA PCI Express 2.5 " Solid State Drive Card
  • Extension Plate (for Mounting Second SSD)
  • Plate and Drive Mounting Screws
  • Documentation
  • Sonnet 1 Year Warranty
