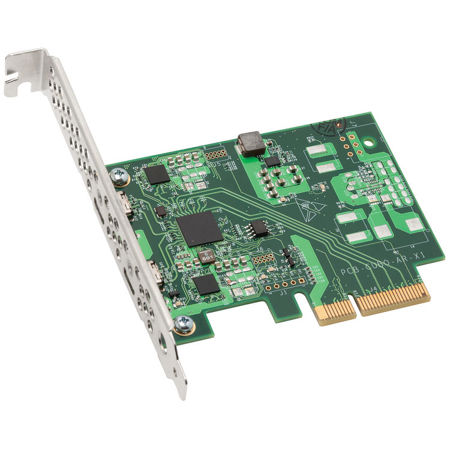

Sonnet Thunderbolt 3 Upgrade Card for Echo Express III-D & III-R Expansion System

Experience the power of high-speed data transfer with the Thunderbolt 3 Upgrade Card, specifically designed for the Echo Express III-D & III-R Expansion System. This innovative upgrade card, developed by Sonnet, transforms your Echo Express Thunderbolt 2-to-PCIe card expansion systems and select Thunderbolt 2 adapters into a 40Gbps Thunderbolt 3 powerhouse.

The installation process is straightforward and efficient. Simply replace the existing Thunderbolt interface board with this durable upgrade card, and your chassis will instantly support higher performance, connecting seamlessly to your Thunderbolt 3-equipped computer without the need for an adapter.

With the Thunderbolt 3 interface card installed, your upgraded Echo Express Thunderbolt 2 system benefits from an impressive increase in bandwidth, ranging from 30% to 100% over the original system. This reliable upgrade card ensures that PCIe cards with high bandwidth requirements, such as 16Gb Fibre Channel and 4K Video I/O cards supporting high frame rates, perform at their peak.

The Thunderbolt 3 Upgrade Card features two Thunderbolt 3 (USB-C) Ports. One port is dedicated for connection to the computer, while the second port supports daisy-chaining of up to five additional Thunderbolt devices, attaching a single USB peripheral device, or connecting up to two 4K displays or one 5K display.

This upgrade card is also ThunderLok 3-compatible. The Thunderbolt connector retainer clip secures the cable from accidental disconnections, ensuring a stable and reliable connection.

The Thunderbolt 3 Upgrade Card offers more than just an upgrade. It provides increased 40Gbps bandwidth, optimal Thunderbolt 3 daisy chaining, and the ability to connect USB devices with 10Gbps USB 3.1 Gen 2 support. It also supports the connection of two 4K displays at 60Hz or one 5K display at 60Hz, making it an ideal choice for professionals working with large files and high-resolution displays.

Upgrade your system with the Thunderbolt 3 Upgrade Card and experience the difference in speed, performance, and efficiency.
