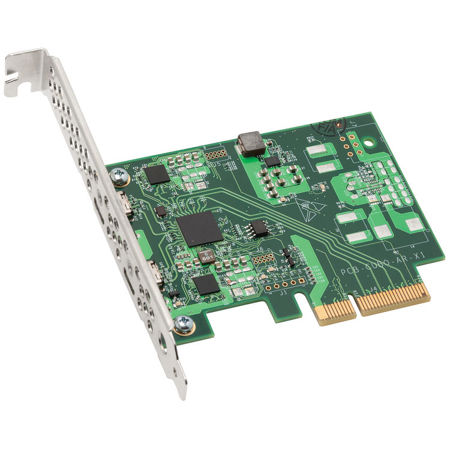

Sonnet Thunderbolt 3 Upgrade Card for Echo Express SE II Expansion System

SKU: SNUPGRTB3SE2 MFR: BRD-UPGRTB3-SE2
Earn VIP Reward Points

Key Features

  • Upgrade your Echo Express SE II with this Thunderbolt 3 card for faster data transfers.
  • Experience blazing-fast speeds with this Thunderbolt 3 upgrade, maximizing your workflow efficiency.
  • This upgrade card offers broad Mac & PC compatibility, enhancing your existing Thunderbolt setup.
  • Get future-proof performance with dual Thunderbolt 3 ports, ensuring seamless connectivity for years.
  • Easy to install, this Thunderbolt 3 card instantly boosts your system's speed and capabilities.
  • Enjoy reliable performance with this Sonnet Thunderbolt 3 upgrade, backed by a 1-year warranty.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$14.99

2 Year

$24.99

3 Year

$34.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Sonnet Upgrade Card Specifications

  • Hardware Compatibility

    Echo Express SE II Expansion System (Thunderbolt 2 Edition)

  • External Connectors

    Two Thunderbolt 3 (USB-C) ports

  • Mac Compatibility

    All Upgrade Card Models
    Mac with Thunderbolt 3 ports
    Macs with Thunderbolt 2 or Thunderbolt ports with the Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter
    macOS 10.12.1+

  • PC Compatibility

    BRD-UGRTB3-SEL, BRD-UPGTB3-SE1
    PC with a Thunderbolt 3
    Windows 10, 8, 7

  • Operating Temperature

    0 to 35 deg. C (32 to 95 deg. F)

  • RoHS Compliant

    Yes

  • UPC Code

    732311012266

About Sonnet Upgrade Card

Step Up to 40Gbps Thunderbolt 3
Sonnet designed Echo Express Thunderbolt 2-to-PCIe card expansion systems (and select Thunderbolt 2 adapters) to be easily upgraded to 40Gbps Thunderbolt 3. Simply replace the existing Thunderbolt interface board with the upgrade board and then your chassis will instantly support higher performance and connect to your Thunderbolt 3-equipped computer without needing an adapter.

Increased Bandwidth, Better Performance
With a Thunderbolt 3 interface card installed, your upgraded Echo Express Thunderbolt 2 system gains from 30% to 100% more bandwidth over the original system (see performance Tab for details). Installed in an upgraded system, PCIe cards with high bandwidth requirements, such as 16Gb Fibre Channel and 4K Video I/O cards supporting high frame rates, will be able to perform even better than before.

Easy to Install 40Gpbs Thunderbolt 3 Upgrade Card
Replaces existing 20Gbps Thunderbolt interface board in your Thunderbolt 2-to-PCIe card expansion system

Improved Performance with High-Bandwidth PCIe Cards
Your upgraded expansion system will provide from 30% to 100% more bandwidth for installed PCIe cards

Two Thunderbolt 3 (USB-C) Ports
One port reserved for connection to the computer; second port supports daisy-chaining of up to five additional Thunderbolt devices, attaching a single USB peripheral device or connecting up to two 4K displays or one 5K display

ThunderLok 3-Compatible
Thunderbolt connector retainer clip secures cable from accidental disconnections

Upgrade Instead of Adapting
Why adapt when upgrading offers more With the Thunderbolt 3 upgrade card installed you get:

Increased Bandwidth
The Thunderbolt 3 upgrade card provides increased 40Gbps bandwidth-with an adapter you are limited to Thunderbolt 2's 20Gbps bandwidth.

Optimal Thunderbolt 3 Daisy Chaining
The upgrade card supports additional Thunderbolt 3 peripheral devices in the Thunderbolt chain with 40Gbps bandwidth. With an adapter all downstream devices in the Thunderbolt chain can only be Thunderbolt or Thunderbolt 2 devices.

Connect USB Devices
Sonnet's Thunderbolt 3 upgrade cards also include 10Gbps USB 3.1 Gen 2 support, meaning you can connect a USB device to the second port using the proper cable or adapter; they also provide full support for connecting two 4K displays at 60Hz or one 5K display at 60Hz.

ThunderLok 3-Compatible
Sonnet's Thunderbolt 3 upgrade cards support the ThunderLok 3 Thunderbolt connector retainer clip. The ThunderLok 3 (sold separately) secures the Thunderbolt cable (sold separately) to the chassis and is easy to install and use-just slide it over one end of the cable and then plug in the connector and secure it to the chassis by turning a thumbscrew. Because of its unique design, ThunderLok 3 remains on the cable so it won't get lost when not in use.

Key Features

  • Upgrade your Echo Express SE II with this Thunderbolt 3 card for faster data transfers.
  • Experience blazing-fast speeds with this Thunderbolt 3 upgrade, maximizing your workflow efficiency.
  • This upgrade card offers broad Mac & PC compatibility, enhancing your existing Thunderbolt setup.
  • Get future-proof performance with dual Thunderbolt 3 ports, ensuring seamless connectivity for years.
  • Easy to install, this Thunderbolt 3 card instantly boosts your system's speed and capabilities.
  • Enjoy reliable performance with this Sonnet Thunderbolt 3 upgrade, backed by a 1-year warranty.

What's in the box:

  • Sonnet Thunderbolt 3 Upgrade Card
  • Documentation
  • Sonnet 1 Year Limited Warranty
