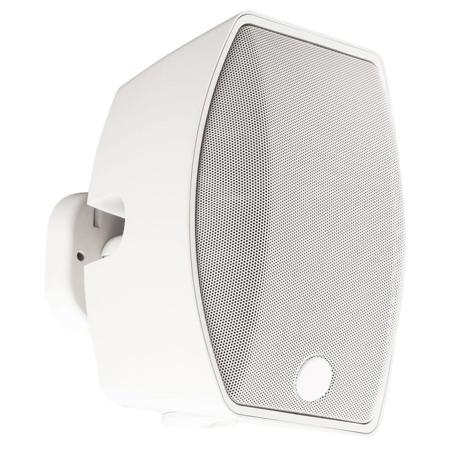

SoundTube SM500i-II-WX 5.25" Extreme Weather Outdoor Surface Mount Speaker with BroadBeam, 75W RMS, White, Single

SKU: SO500IIIWXWH MFR: SM500I-II-WX-WH
Earn VIP Reward Points

Key Features

  • Experience superior audio with this SoundTube extreme weather speaker.
  • This 5.25" surface mount speaker delivers exceptional sound quality outdoors.
  • Enjoy BroadBeam technology for wide, even sound coverage with this speaker.
  • With 75W RMS, this commercial speaker provides powerful, clear audio output.
  • Its durable design ensures reliable performance in any weather condition.
  • Easy Euroblock connectivity makes installation a breeze for audio solutions.
See More Product Details

Product Options

Special Order?Estimated to Ship: 08/08/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

SoundTube SM500i-II-WX Specifications

  • System Type

    5.25", coaxial, surface-mount, ported (64W transformer for 25/70.7/100V or transformer bypass)

  • Impedance

    4 Ohms (Nominal)

  • Sensitivity

    At 2.83V/1M: 86.0 dB
    At 1W/1M: 83.0 dB

  • Frequency Response

    86 Hz - 22 kHz (-3 dB)
    60 Hz - 22 kHz (-10 dB)

  • Max. Program Power

    150W

  • Max. Continuous Power RMS

    75W

  • Max. SPL

    At 1M RMS: 102 dB

  • Coverage Angle

    75 deg. horizontal / 90 deg. vertical (-6 dB at 2 kHz)
    120 deg. horizontal / 125 deg. vertical (-6 dB at 10 kHz)
    100 deg. horizontal / 100 deg. vertical (Avg. 2 to 10 kHz)

  • Aiming Angle

    360 deg. (Radial)
    0 - 90 deg. (Horizontal)

  • Directivity Factor (Q)

    4.6dB (Averaged 100 Hz - 10 kHz); 9.8dB at 2 kHz

  • Directivity Index (DI)

    5.6 dB (Averaged 100 Hz - 10 kHz); 9.9 dB at 2 kHz

  • Tap Selector

    Six-position rotary switch with transformer bypass

  • Frequency Driver

    Low-Frequency Driver: 133mm (5.25") polypropylene cone, butyl rubber surround
    High-Frequency Driver: 25mm (1.0") convex titanium tweeter with waveguide

  • Low Frequency Voice Coil

    25mm (1.0")

  • Crossover Frequency

    3 kHz

  • Network Type

    Low-Pass: 12 dB per octave, 2nd order
    High-Pass: 12 dB per octave, 2nd order

  • Enclosure Material

    Injection-molded ABS, glass fiber reinforced

  • Grille

    Aluminum with powder-coat finish

  • Inputs

    Four-pin, 5.08mm Euroblock for individual or daisy chain connection

  • Regulatory

    UL 1480 (UEAY) planned; CE Approved

  • RoHS

    Approved

  • Dimensions (HxWxD)

    Including Bracket: 289.56 x 212.26 x 266.30mm (11.40 x 8.36 x 10.48")

  • Weight

    4.3kg (9.5 lbs)

  • UPC Code

    644216203505

About SoundTube SM500i-II-WX

Make your outdoor audio experience unforgettable with the SM500i-II-WX 5.25" Extreme Weather Outdoor Surface Mount Speaker. Engineered by Soundtube, a leader in high-quality audio solutions, this speaker is the epitome of durability and innovation. Its robust design is tailored for severe weather conditions, ensuring that your sound system withstands the elements, from scorching sun to torrential rain.

The speaker's two-way, mid-size enclosure delivers a powerful low-end response starting at 60 Hz, while its optimal off-axis performance ranges from 2 to 10 kHz. The integration of SoundTube's proprietary BroadBeam waveguide technology ensures a tweeter system that provides consistent, high-performance audio across the entire operating bandwidth.

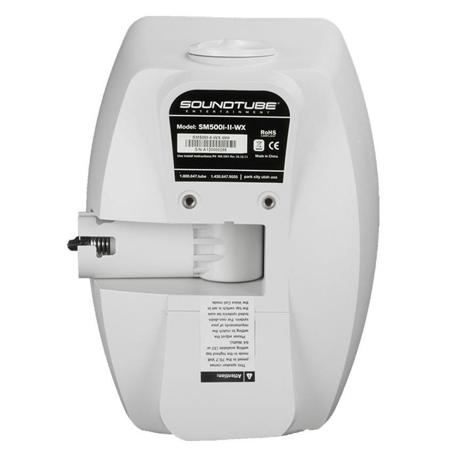

Aesthetically pleasing with its stylish, low-profile grille, the SM500i-II-WX is not just about looks but also about functionality. It features a six-position tap switch with transformer bypass for versatile power options and includes mounting hardware with the innovative Stealth bracket system for secure and discreet installation. The speaker also boasts a security knob to deter tampering, allowing for peace of mind once installed.

Unlimited directional aiming is made possible with the SM500i-II-WX, ensuring precise audio delivery to your desired location. The detachable mounting plate is a boon for pre-installation, offering flexibility for both wall and pole applications.

Ideal for creating an immersive sound environment, this speaker is perfect for outdoor background to mid-level SPL applications. Whether it's for retail spaces, amusement parks, restaurants, airports, hotels, schools, or casinos, the SM500i-II-WX offers a full frequency dispersion pattern and high sensitivity, making it suitable for both music and paging systems.

For those seeking an enhanced bass experience, the SM500i-II-WX pairs seamlessly with SoundTube's RS1001i-II-T and SM1001p subwoofers, extending the bass reach down to 41 Hz (-10 dB). Elevate your outdoor audio setup with the reliable and high-quality performance of the SM500i-II-WX Extreme Weather Outdoor Surface Mount Speaker.

SoundTube SM500i-II-WX Features

  • BroadBeam waveguide technology delivers a consistent dispersion pattern up to 10 kHz for maximum coverage area per speaker
  • One 5.25" (133mm) polypropylene woofer and one 1.0" (25mm) convex titanium tweeter with FerroFluid cooling
  • 86.0 dB average sensitivity offers high output capabilities and reduced amplification costs
  • Includes stainless steel screws and grille for severe weather, outdoor applications
  • Easy access, six-position selectable tap switch for 25-, 70.7- and 100V applications with transformer bypass position
  • Patented ZeroReflection enclosure technology for optimal sound reproduction and cabinet rigidity
  • Aluminum grille with powder-coat finish
  • Includes the new SM500i-II-WX Stealth bracket mounting system
  • Vertical and horizontal pivoting allow the SM500i-II-WX to be aimed anywhere within the installation space
  • Low profile enclosure design keeps the speaker close to the wall
  • UL 1480 (UEAY) planned
  • High-quality white paint finish

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience superior audio with this SoundTube extreme weather speaker.
  • This 5.25" surface mount speaker delivers exceptional sound quality outdoors.
  • Enjoy BroadBeam technology for wide, even sound coverage with this speaker.
  • With 75W RMS, this commercial speaker provides powerful, clear audio output.
  • Its durable design ensures reliable performance in any weather condition.
  • Easy Euroblock connectivity makes installation a breeze for audio solutions.

What's in the box:

  • SoundTube SM500i-II-WX 5.25 " Extreme Weather Outdoor Surface Mount Speaker with BroadBeam
  • Safety Cable with Speaker Mounting Bolt
  • Euroblock Connector
  • Wall Mount Bracket
  • Terminal Weather Boot
  • SoundTube 5 Year Limited Warranty
