Sonifex AVN-AIO8 Specifications

Network and AoIP

Network and AoIP

Jump to...

  • AoIP Standard

    Dante

  • Number of Channels

    8 receive, 8 transmit

  • Number of Streams

    8 receive, 8 transmit

  • Sample Rate

    44.1kHz, 48 kHz, 88.2kHz or 96kHz

  • Format

    Linear PCM, 16, 24 or 32 bit

  • AES67 Support

    Yes

  • Connectivity

    1x RJ45

  • Speed

    1Gbps or 100Mbps

  • Dante Domain Manager Ready

    Yes

Audio Input Performance

Jump to...

  • Input Impedance

    >20kOhm balanced

  • 0dBFS line-up

    User Selectable +12dBu/+18dBu/+24dBu balanced

  • Frequency Response

    20Hz to 20kHz, +0/-0.2dB

  • THD+N

    <-110dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW

  • Noise

    -110dBFS, 20kHz BW, Rs=200Ohm

  • Crosstalk

    <-100 dB

  • Common Mode Rejection

    >60dB @ 1kHz

Audio Output Performance

Jump to...

  • Output Impedance

    <50Ohm balanced

  • 0dBFS line-up

    User Selectable +12dBu/+18dBu/+24dBu balanced

  • Frequency Response

    20Hz to 20kHz, +0/-0.5dB

  • THD+N

    <-107dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW

  • Noise

    -107dBFS, 20kHz BW (Mic=EIN)

  • Crosstalk

    <100dB

Balanced Line Input XLR Pinout

Jump to...

  • Pin 1

    Chassis Ground/Screen

  • Pin 2

    Input Phase/Positive

  • Pin 3

    Input Non-Phase/Negative

Balanced Line Output XLR Pinout

Jump to...

  • Pin 1

    Chassis Ground/Screen

  • Pin 2

    Output Phase/Positive

  • Pin 3

    Output Non-Phase/Negative

PoE Power

Jump to...

  • Standard

    802.3at Type 1

  • Class

    0

  • PD Power Range

    0.44 W to 12.94 W

  • Typical PSE Power Usage

    6.5 W

  • Max PSE Power Usage

    15.4 W

Physical

Jump to...

  • Dimensions (W x D x H)

    1U: 19 x 4.3 x 1.7" (48 x 11 x 4.3cm)

  • Weight

    2.4 lbs (1.1kg)

About Sonifex AVN-AIO8

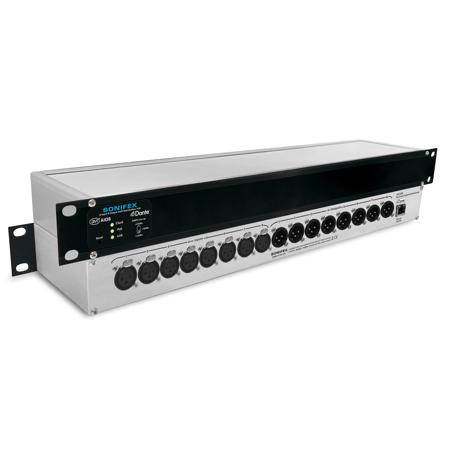

The AVN-AIO8 audio converter and interface converts up to eight analogue inputs and eight analogue outputs to and from the Dante Audio-over-IP networking standard.

This cost effective 1U rack-mount unit offers an easy solution for AV professionals and system integrators. It is simple to configure and operate, with all set-up, except line-up levels, done via the standard Dante Controller software and power via PoE (Power Over Ethernet).

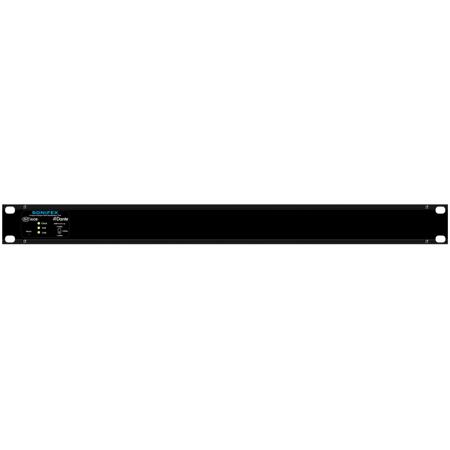

All analogue inputs and outputs are on high-quality Neutrik XLR connectors and there are front panel status/confidence LEDs for PoE, Link, and Clock. Global 0dBFS line-up can be set to +12dBu, +18dBu or +24dBu to meet your specific requirement via the front panel recessed toggle switch.

Sonifex AVN-AIO8 Features

  • 8x balanced analogue inputs on XLR
  • 8x balanced analogue outputs on XLR
  • Adjustable global 0dBFS line up selection (+12dBu/+18dBu/+24dBu)
  • 1x RJ45 Dante connector (1Gb/s Ethernet Port)
  • PoE, Link, and Clock LED status indicators
  • Configuration using Dante Controller
  • AES67 operation & Dante Domain Manager compliant
  • Powered by PoE
  • 1U 19" rack-mount form factor

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 8x balanced analogue inputs on XLR
  • 8x balanced analogue outputs on XLR
  • Adjustable global 0dBFS line up selection (+12dBu/+18dBu/+24dBu)
  • 1x RJ45 Dante connector (1Gb/s Ethernet Port)
  • PoE, Link, and Clock LED status indicators
  • Configuration using Dante Controller

What's in the box:

  • Sonifex AVN-AIO8 8-Input and 8-Output Dante Interface
  • Sonifex 2 Year Warranty (1 Year + 1 Year with Registration)
