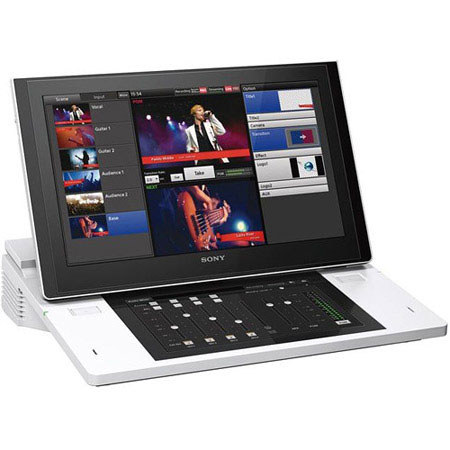

Sony AWS-750 Anycast Touch All-in-One Live Content Producer

SKU: SOAWS750

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Sony AWS-750 Specifications

  • Video Process

    10 bit, Y: 74.25 MHz, R-Y/B-Y: 37.125 MHz

  • SD Video Quantization & Sampling Freq.

    8 bit, Y: 13.5 MHz, R-Y/B-Y: 6.75 MHz

  • REF OUT Frequency Accuracy

    Less than 50 ppm

  • Sampling Frequency

    48 kHz (Audio Mixer)

  • Quantization

    24 bit (A/D, D/A), 40 bit (DSP)

  • Frequency Response (MIC/LINE)

    20 Hz to 20 kHz +0.5 dB to -2 dB

  • THD (MIC/LINE -20dBu 1kHz)

    0.1% or less

  • Dynamic Range

    90 dB or more

  • Format (Codec) / Protocol

    Flash (H.264, AAC) / RTMP

  • Recording Format

    Recording Format

  • Recording Source

    PGM or AUX

  • Recording Media

    Internal mSATA (192 GB)

  • Video Switcher: Configuration

    Input: 6 Primary Video inputs
    1 M/E + 4 Keyer (2 x PinP, 2 x Title) + 2 Logo
    Output: PGM Output, PGM/AUX Output

  • Video Switcher: Key Type

    Luminance Key / Alfa Channel / Chroma key

  • Video Switcher: Internal Media Playback

    Data can be imported from a USB flash memory device

  • Audio Mixer: Configuration

    Input: 6 Analog Monaural / 6 Stereo Embedded Audio inputs

  • Audio Mixer: Oscillator

    100 Hz, 1 kHz, 10 kHz

  • Supported camera

    BRC series camera (VISCA protocol)

  • Input Language

    10 languages: English, Chinese (Simplified), Chinese (Traditional), Japanese, Korean, German, Spanish, Italian, Portuguese, French

  • Keyboard

    Built-in software keyboard

  • Video Signal (Inputs): HD/SD SDI

    BNC (x4), 75 Ohms, 1.5 Gbps, 270 Mbps
    SMPTE 292M, SMPTE 259M-C

  • Video Signal (Inputs): Composite

    Phono jack (x2)
    Video: 1.0 Vp-p 75 Ohms, negative sync

  • Video Signal (Inputs): RGB

    D-Sub Shrink 15-pin (x2) (Female)

  • Video Signal (Inputs): HDMI

    HDMI (Type A) (x2)

  • Video Signals (Outputs): HD/SD SDI

    BNC (x2) 75 Ohms, 1.5 Gbps, 270 Mbps
    SMPTE 292M, SMPTE 259M-C

  • Video Signals (Outputs): HD SDI

    BNC (x1) 75 Ohms, 1.5 Gbps, SMPTE 292M

  • Video Signals (Outputs): RGB

    D-Sub Shrink 15-pin (x1) (Female)

  • Video Signals (Outputs): HDMI

    HDMI (Type A) (x2)

  • Video Signals (Outputs): REF Out

    BNC (x1) Analog black burst signal
    NTSC: 0.286 Vp-p +/-2 dB, 75 Ohms, negative sync
    PAL: 0.3 Vp-p +/-2 dB, 75 Ohms, negative sync

  • Audio Signals: Analog Inputs 1-4

    XLR/TRS Combo Type (x4)
    Ref. Level: +4 dBu, -20 dBu, -44 dBu
    Input impedance: 3.3 kOhms or more
    Mic. Power: +48 V On/Off

  • Audio Signals: Analog Inputs 5-6

    Phono jack (x2)
    Reference input level: -10 dBu
    Input impedance: 10 kOhms or more

  • Audio Signals: PGM Out

    TRS phone (x2)
    Reference level: +4 dBu (10 kOhms load)
    Max. output level: +24 dBu
    Output impedance: 150 Ohms

  • Audio Signals: MIX Out

    Phono jack (x2)
    Reference level: -10 dBu (10 kOhms load)
    Max. output level: +10 dBu
    Output impedance: 470 Ohms

  • Audio Signals Output: Headphones

    1/4" Stereo Phone Jack Type (x1)
    Max. power: 70 mW (x2)
    Impedance: 47 Ohms

  • LAN

    RJ-45 (x2), 100BASE-TX, 1000BASE-T

  • USB3.0

    USB (Type A) (x4), USB 3.0 equivalent

  • Panel

    (i)15.6-inch
    High Brightness LCD 1920 x 1080 60 Hz

  • Speaker

    Built-In Speaker (x2) Size: 20 mm in diameter

  • Video Formats

    1080/59.94i Hz, 480/59.94i Hz, 1080/50i Hz, 576/50i Hz

  • Power Requirements

    DC 19.5V, 7.5A

  • Operating Temperature

    5deg.C to 35deg.C
    42deg.F to 95deg.F

  • Dimensions (W x H x D)

    415 x 95 x 336mm / 16.34 x 3.74 x 13.23"

  • Mass

    6.5kg / 14.3lbs

About Sony AWS-750

The Sony AWS-750 Anycast Touch is a compact, affordable, All-in-One live production solution with an intuitive touch panel operation. Anycast Touch instantly makes live production accessible to anyone who requires live broadcasting or webcasting. The portable system is designed to be incredibly easy to use. With no previous live production experience required, it is suitable for a wide range of customers, such as educational and government institutions, corporate organizations and event management companies. And as you can expect from Sony, Anycast Touch offers incredible clear and detailed pictures for live production.

Anycast Touch eliminates the need for any of the hardware typically required for professional live streaming. It includes a video switcher, encoder, recorder, audio mixer, titler and remote camera controller. The Anycast Touch allows for seamless video mixing between a number of video sources in a variety of formats. You can record up to four hours of video and audio on the internal HDD, create and add graphics elements to the image, control connected remote BRC cameras (pan, tilt and zoom), perform multiple effects and wipes to enhance the production and instantly stream the output over a WAN or the Internet. Additionally, a fully functioned six channel audio mixer is provided for a separate audio mix.

The Anycast Touch enables intuitive, easy operation and eliminates the cumbersome setup and signal adjustment process typically required when connecting various devices. Users can also store the setup information of all attached video sources, such as the camera input, title data and transition effects. Additionally, scene lists can be prepared beforehand, allowing users to simply switch scenes during an event with just a single tap.

Sony AWS-750 Features

  • Intuitive double touch-screen operation: The AWS-750 Anycast Touch has a very simple and easy-to-use operational style with an intuitive double touch-screen interface that requires no technical background to operate
  • Stylish and ultra portable design: The Anycast Touch is stylish, compact and ultra-portable. Taking it from one location to the other is easy. Just pack up and go. The all-in-one style system displays sources for input and streaming, for simple operation
  • All-in-one solution: Anycast Touch eliminates the need for any of the hardware typically required for professional live streaming. It includes a video switcher, encoder, recorder, audio mixer, titler and remote camera controller
  • Multiple video switching: The Anycast Touch features 6 video inputs and 5 video outputs with 1920 x 1080 10-bit processing and 1080i/59.94, 50, 480i/59.94 and 576i/50 operation. It permits seamless switching between camera, PC & Video sources (including audio)
  • Stereo audio mixing: The system allows stereo mixing by touch panel fader with limiter/comp/EQ and audio delay adjustments. It features 6 stereo audio inputs and 3 stereo audio outputs
  • Instant streaming function: The system allows stable real time streaming over the Internet, LAN and other dedicated lines
  • Camera remote control capability: The Anycast Touch allows operators to easily control one or more compatible pan/tilt/zoom cameras at remote locations. Sony offers a variety of compatible cameras such as BRC Series cameras
  • Internal recorder: The system records PGM output in the built-in 128 GB capacity solid state drive with up to 4 hours capacity. Recorded files can be exported and edited by various types of non-linear editor
  • Add still text to any picture, or use wipe and/or dissolve effects: Operators can generate texts to overlay onto the programme output with the touch-screen keyboard. 10 languages are available for the text-typing tool

Key Features

  • Intuitive double touch-screen operation
  • Stylish and ultra portable design
  • All-in-one solution
  • Multiple video switching
  • Stereo audio mixing
  • Instant streaming function

What's in the box:

  • Sony AWS-750 Anycast Touch Live Content Producer
  • AC Adapter
  • Sony 1 Year Warranty
