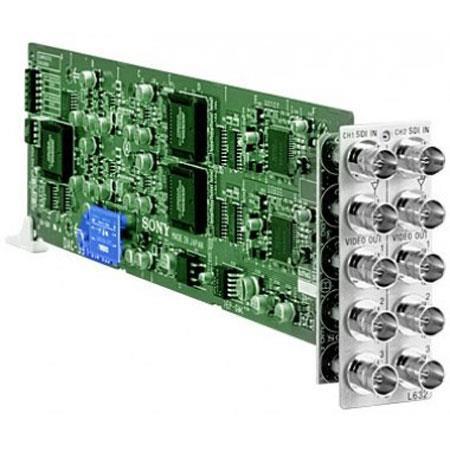

Sony SDI (4:2:2) to NTSC/PAL Composite Conversion Board for PFV-L10
See all Sony items
17% Off

Sony SDI (4:2:2) to NTSC/PAL Composite Conversion Board for PFV-L10 19" Rack Mountable Compact Interface Unit

SKU: SOBKPFL632 MFR: BKPFL632
Be the first to review this itemAsk a Question
$1,099.50
$1,331.00
Save: $231.5 (17%)
OR
$92/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Seamless SDI to NTSC/PAL conversion ensures reliable video signal adaptation.
  • Enjoy high resolution video output with this Sony conversion board's 10-bit processing.
  • This video switcher component offers wide compatibility with Sony's PFV-L10 interface unit.
  • Maintain low latency in your video workflow with this high-performance conversion board.
  • Get good value with this cost-effective solution for professional video signal management.
  • Simplify your setup with this compact, rack-mountable SDI to composite conversion board.
See More Product Details

Please Note

Financing Available: As low as 0% Financing for 12 months. For more info Please email us at sony@adorama.com
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Sony SDI (4:2:2) to NTSC/PAL Composite Conversion Board for PFV-L10 Specifications

  • Compatibility

    Sony PFV-L10 19" Rack Mountable Compact Interface Unit

  • Serial digital input

    SDI IN connector (BNC type) (2) 525/625 component serial digital signal conforming to SMPTE259M

  • Input return loss

    15 dB or more (at 5 MHz to 540 MHz)

  • Cable length

    200 m max. (when using a BELDEN 8281, Fujikura 5C2V or equivalent coaxial cable)

  • Serial digital output

    Active loop

  • Output return loss

    15 dB or more (at 5 MHz to 540 MHz)

  • Rise time/Fall time

    0.5 to 0.75 nsec (20 % and 80 % amplitude points)

  • Overshoot

    Less than 10 %

  • Alignment Jitter

    Less than 0.2 UIp

  • DC offset

    Less than 0 +/- 0.5 V

  • Analog output

    VIDEO OUT connectors (BNC type) (6; 3 for each channels) NTSC: 1.0 Vp

  • Sampling Frequency

    27.0 MHz

  • Resolution

    10 bits

  • Signal to Noise Ratio

    54 dB or more

  • Frequency Response

    +/- 0.5 dB

  • Y/C Delay

    DG/DP - Less than +/- 20 nsec

  • Power Requirements

    DG/DP - + 5 V DC: 1.0 A

  • Dimensions (W x H)

    Main Board: 10.75 x 3.12" / 27.30 x 7.92cm
    Connector Panel:1.31 x 3.32" / 3.32 x 8.43cm

  • Weight

    0.56lbs / 0.25kg

About Sony SDI (4:2:2) to NTSC/PAL Composite Conversion Board for PFV-L10

Let the Sony SDI (4:2:2) to NTSC/PAL Composite Conversion Board revolutionize your video conversion process. Specifically designed for the PFV-L10 compact interface unit, this high-quality conversion board seamlessly transforms a component SDI signal (4:2:2) into either an NTSC or PAL composite output.

Boasting the ability to ingest up to two signals simultaneously, this conversion board is a powerhouse of efficiency. Each signal is then meticulously split into three distinct outputs, ensuring optimal performance and versatility.

Whether you're working with professional video equipment or setting up a home entertainment system, this Sony SDI to NTSC/PAL Composite Conversion Board is an essential tool for achieving superior video quality. Its 19" rack-mountable design makes it an ideal fit for any setup, offering both convenience and space-saving benefits.

Experience the Sony commitment to quality and innovation with this SDI (4:2:2) to NTSC/PAL Composite Conversion Board, a vital component for any video conversion needs.

Sony SDI (4:2:2) to NTSC/PAL Composite Conversion Board for PFV-L10 Features

  • Two serial component inputs with active loop-through
  • Converts and distributes each input signal to three NTSC/PAL composite analog outputs
  • Accepts either 525-line or 625-line signals with auto selection function (manual selection also available with the on-board switch)
  • 7.5 IRE setup ON/OFF selectable for 525 signals
  • 8-bit processing for monitoring purpose
  • SDI input presence lamp
  • -5 V warning lamp

Warranty Information

This product has a limited warranty of 3 months for parts and 3 months for labor.
