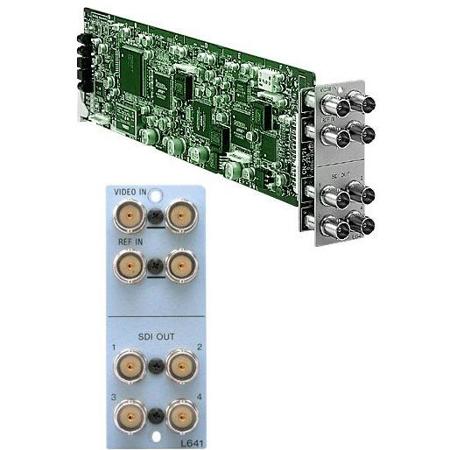

Sony NTSC/PAL Composite to SDI Conversion Board for PFV-L10 19" Rack Mountable Compact Interface Unit

SKU: SOBKPFL641 MFR: BKPFL641
Earn VIP Reward Points

Key Features

  • Easily convert NTSC/PAL composite video to SDI for high-quality broadcast signals.
  • Enjoy low latency video conversion with a processing delay of just 74-137 us.
  • Achieve reliable connection with a signal-to-noise ratio of 58 dB or more.
  • This video switcher board ensures wide compatibility with Sony PFV-L10 interface units.
  • Get good value with this compact, rack-mountable SDI conversion solution.
  • Experience easy setup with included test signal featuring 75% color bars.
See More Product Details

Please Note

Financing Available: As low as 0% Financing for 12 months. For more info Please email us at sony@adorama.com
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$179.99

4 Year

$215.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Sony NTSC/PAL Composite to SDI Conversion Board for PFV-L10 Interface Unit Specifications

  • Compatibility

    Sony PFV-L10 19" Rack Mountable Compact Interface Unit

  • Inputs/Outputs

    Composite: BNC (x1 Input NTSC/PAL)
    SDI: BNC (x4 Output)

  • Power Requirements

    +5 V DC: 1.4A (supplied from PFV-L Series Interface Unit)

  • Video characteristics

    Quantization 10 bits Sampling frequency Input: 28.636 MHz (NTSC input), 35.468 MHz (PAL input)
    Output: 13.5 MHz (Y), 6.75 MHz (B-Y/R-Y) Band width 5.75 MHz (Y) K factor (2T pulse) 1% or less Signal-to-noise ratio 58 dB or more (using Flat Field)

  • Memory

    4 fields

  • Processing delay

    74 us (NTSC)/137 us (PAL)

  • Phase adjustment range

    Line: -2 H, -1 H, +/-0 H, +1 H INPUT
    Lock mode: 0.1 to 9 us, 37 ns step External
    REF mode: -4.5 to +4.5 us, 37 ns step

  • Test signal

    75% color bars with 100% white

  • Operating temperature

    +5 deg.C to +40 deg.C (+41 deg.F to +104 deg.F)

  • Storage temperature

    -20 deg.C to +60 deg.C (-4 deg.F to +140 deg.F)

  • Operating humidity

    10% to 90% (no condensation)

  • Dimensions (W x H)

    Main Board: 10.75 x 3.12" / 27.30 x 7.92cm

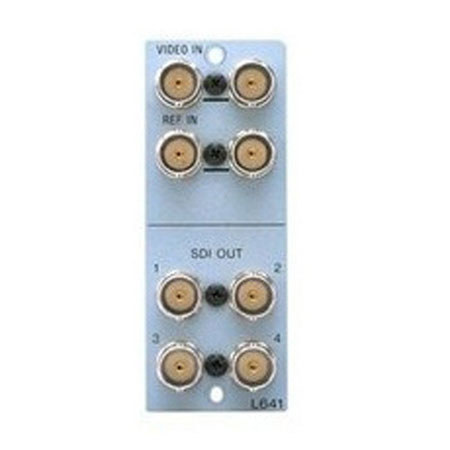

    Connector Panel: 1.31 x 3.32" / 3.32 x 8.43cm

  • Weight

    0.56lbs / 0.25kg

About Sony NTSC/PAL Composite to SDI Conversion Board for PFV-L10 Interface Unit

Explore the power and versatility of the Sony NTSC/PAL Composite to SDI Conversion Board, specifically designed for the PFV-L10 19" Rack Mountable Compact Interface Unit. This high-quality, durable conversion board is a must-have for professionals in the video industry.

The board seamlessly converts NTSC or PAL composite video signals into 4:2:2 component serial digital video (SDI), ensuring superior video quality and performance. Its compatibility with both NTSC and PAL video standards makes it a versatile choice for professionals operating in different regions around the globe.

Moreover, the compact design of this conversion board is rack-mountable, making it an ideal solution for streamlined installation and organization in professional settings. Experience the convenience and efficiency of the Sony NTSC/PAL Composite to SDI Conversion Board, a reliable tool for your video conversion needs.

Sony NTSC/PAL Composite to SDI Conversion Board for PFV-L10 Interface Unit Features

  • 10-bit 4:2:2 internal processing
  • Supports SMPTE259M-C
  • One equalized input with passive loop-through output
  • Four distributed outputs
  • Black burst reference input with passive loop-through output
  • 3-line adaptive comb filter
  • NTSC/PAL selection
  • Setup removal on/off selection for NTSC signal
  • Built-in frame synchronizer
  • On (External Reference mode)/Off (Input Lock mode) selection
  • Auto/Manual freeze selection (External reference mode only)
  • H/V phase adjustment
  • Color frame ID insertion
  • Maintains the content of the VBI to support Closed Caption
  • EDH insertion

Warranty Information

This product has a limited warranty of 3 months for parts and 3 months for labor.

Key Features

  • Easily convert NTSC/PAL composite video to SDI for high-quality broadcast signals.
  • Enjoy low latency video conversion with a processing delay of just 74-137 us.
  • Achieve reliable connection with a signal-to-noise ratio of 58 dB or more.
  • This video switcher board ensures wide compatibility with Sony PFV-L10 interface units.
  • Get good value with this compact, rack-mountable SDI conversion solution.
  • Experience easy setup with included test signal featuring 75% color bars.

What's in the box:

  • Sony NTSC/PAL Composite to SDI Conversion Board
  • Sony 90 Day Limited Warranty
