Sony SDI (525/625 Line) o NTSC/PAL Composite Conversion Board for PFV-L10
See all Sony items

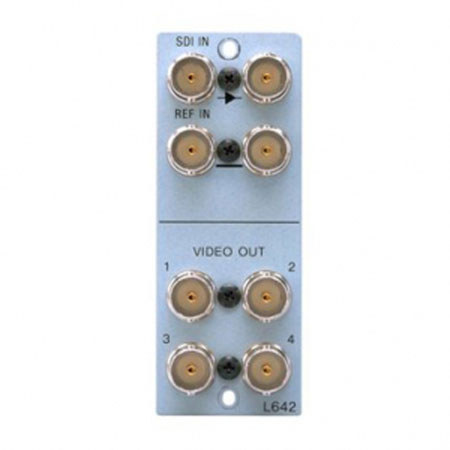

Sony SDI (525/625 Line) to NTSC/PAL Composite Conversion Board for PFV-L10 19" Rack Mountable Compact Interface Unit

SKU: SOBKPFL642
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Sony SDI (525/625 Line) o NTSC/PAL Composite Conversion Board for PFV-L10 Specifications

  • Compatibility

    Sony PFV-L10 19" Rack Mountable Compact Interface Unit

  • Inputs/Outputs

    SDI: BNC (x1 Input)
    Reference: BNC (x1 Input)
    Composite Video: BNCx4 (x1 Output)

  • Power Requirements

    5 VDC (Supplied from the PFV-L Series Interface Unit)

  • Dimensions (W x H)

    Main Board: 10.75 x 3.12" / 27.30 x 7.92cm
    Connector Panel: 1.31 x 3.32" (3.32 x 8.43cm)

  • Weight

    0.56lbs / 0.25kg

About Sony SDI (525/625 Line) o NTSC/PAL Composite Conversion Board for PFV-L10

The Sony SDI to NTSC/PAL Composite Conversion Board is compatible for the PFV-L10 compact interface unit. The board converts 525/625 line SDI video signals to analog NTSC or PAL composite out.

Sony SDI (525/625 Line) o NTSC/PAL Composite Conversion Board for PFV-L10 Features

  • High performance NTSC/PAL encoder
  • 12-bit internal processing
  • Supports SMPTE259M-C
  • One equalized input with active loop-through output
  • Four distributed outputs
  • Black burst reference input with passive loop-through output
  • NTSC or PAL selection
  • Setup on/off selection for NTSC signal
  • Built-in line synchronizer
  • H phase adjustment
  • Color frame ID extraction
  • Maintains the content of the VBI to support Closed Caption
  • EDH monitoring
  • Built-in test signal generator

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Supports SMPTE259M-C
  • One equalized input
  • H phase adjustment
  • EDH monitoring

What's in the box:

  • Sony SDI to NTSC/PAL Composite Conversion Board
  • Sony 90 Day Limited Warranty
