Sony Router X-Y Control Unit for Routing Switchers Specifications

  • Compatibility

    DVS-128 Routing Switcher
    DVS-RS1616 RS-422A Remote Routing Switcher
    DVS-TC3232 Time Code Routing Switcher
    HDS-X3400 Multi Bit-Rate Routing Switchers
    HDS-X3600 Multi Bit-Rate Routing Switchers
    HDS-X3700 Multi Bit-Rate Routing Switchers
    HDS-X5800 Multi Bit-Rate Routing Switchers

  • Control Signal Remote 1

    S-BUS (BNC type) (1)
    Data Transfer Method: BI-PHASE SPACE
    Data Transfer Rate: 312.5 kb/s
    Maximum Cable Length: 500m (1640.42ft)

  • Control Signal Remote 2

    D-sub 9-pin (1)
    Data transfer method: Conforms to the EIA RS-422A Cart
    Data transfer rate: 38.4 kb/s

  • Control Signal RS-232C

    D-sub 9-pin male (1)
    Data transfer method: 8-bit, no parity, 1 stop bit
    Data transfer rate: 19.2 kb/s

  • Power Requirements

    100 to 240 V AC, 50/60 Hz

  • Current Consumption

    0.25 A

  • Operating Temperature

    0 to 45 deg.C (32 to 113 deg.F)

  • Dimensions (W x H x D)

    440 x 44 x 120 mm (17.32 x 1.73 x 4.72")

  • Weight

    1.5kg (3.30lbs)

About Sony Router X-Y Control Unit for Routing Switchers

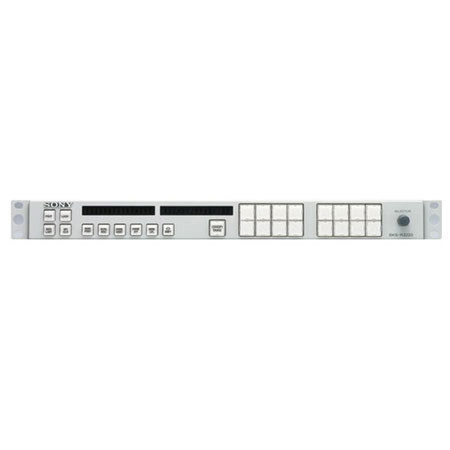

The Sony BKS-R3220 x-Y control unit controls matrix cross points in routers connected to an S-BUS system. Any combination of inputs and outputs, pre-defined with the control terminal, are controllable with a single 'take' button. The names of the selected sources and destinations are shown on the front panel displays. The shallow depth of the unit makes it easy to accommodate the BKS-R3220 in front of a desk-mounted switcher control panel.

Sony Router X-Y Control Unit for Routing Switchers Features

  • Router control in S-BUS systems
  • Fully compliant with expanded S-BUS systems
  • Two source/destination selection systems available
  • BPS (D) Selection (Button-Per-Source or Destination)
  • Type plus Number Selection
  • Button re-assignment using the Selector knob
  • Improved monitor function for the selection of destinations
  • Alternate source switching using Chop function
  • Sources selectable to levels
  • Sources searched by category
  • Access can be restricted to a defined block of crosspoints
  • Large selector buttons show source and destination name (Status shown by button color)
  • Several crosspoints switchable with a single button (Phantom function)
  • Route function for expanded sources
  • Number of sources and destinations controlled expandable with additional units
  • Control bridge between RS-422A (cart+ protocol) and S-BUS
  • Easy ROM update
  • Single cable connection
  • Reduced depth helps in desk mounting applications
