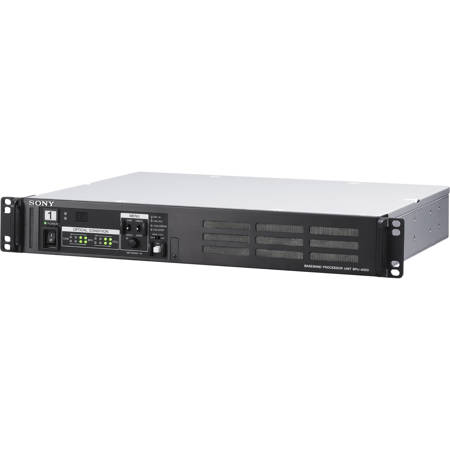

Sony BPU4000/S Baseband Processing Unit for HDC-4300 Production Camera
See all Sony items

Sony BPU4000/S Baseband Processing Unit for HDC-4300 Production Camera

SKU: SOBPU4000S
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Sony BPU4000/S Specifications

  • Camera Input/Output Connector

    1x Optical Fiber

  • CCU Input/Output Connector

    1x Optical Fiber

  • Remote Input/Output Connector

    1x 8-Pin multi-connector

  • LAN Input/Output Connector

    1x 8-pin

  • SDI Input

    2x BNC
    3G-SDI: SMPTE ST424/425 Level-B, 2.970/2.967Gbps
    HD-SDI: SMPTE ST292, 0.8 Vp-p,75Ohms,1.485Gbps/1.4835Gbps

  • Reference Input

    1x BNC
    HD: SMPTE ST274, tri-level sync, 0.6 Vp-p, 75Ohms
    SD: Black burst(NTSC: 0.286 Vp-p, 75Ohms, PAL: 0.3 Vp-p,75Ohms)

  • 3G/HD-SDI Output

    18x BNC
    3G-SDI: SMPTE ST424/425 Level-A/B, 0.8 Vp-p, 75Ohms, 2.970Gbps/2.967Gbps
    HD-SDI: SMPTE ST292, 0.8 Vp-p, 75Ohms, 1.485Gbps/1.4835Gbps, 3G-SDI/HD-SDI selectable

  • HD-SDI Output

    2x BNC
    HD: SMPTE ST292, 0.8 Vp-p, 75Ohms, 1.485Gbps/1.4835Gbps

  • Reference Output

    1x BNC
    HD: SMPTE ST274, tri-level sync, 0.6 Vp-p, 75Ohms
    SD: Composit sync, 0.3 Vp-p, 75Ohms
    HD Sync selectable

  • Power Requirements

    AC 100 to 240V, 50/60Hz

  • Operating Temperature

    41 to 104 deg. F / 5 to 40 deg. C

  • Storage Temperature

    -4 to 140 deg. F / -20 to 60 deg. C

  • Dimensions (W x H x D)

    16.69 x 2.6 x 15.55" / 424 x 66 x 395mm (excluding protrusions)

  • Weight

    Approx. 15lbs / 6.8kg

About Sony BPU4000/S

The BPU-4000 offers real-time 4K digital signal processing and the signal can be simultaneously down-converted to a HD signal and output when connected to the HDC-4300 via an optical fiber cable. The detail process can be optimally adjusted in each signal.

• Parallel processors for 4K/HD
• Down-converter from 4K to HD
• HD Cutout and HD High-fame-rate operation by installing optional software (SZC-2001 for HD Cutout function; SZC-4002 for High-frame-rate function)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Sony BPU4000/S Baseband Processing Unit
  • Set of Number Plates
  • Operation Guide
  • Operation Manual (CD-ROM)
  • Sony Warranty
