Sony C-800G Large Diaphragm Studio Tube Condenser Microphone PAC, 20Hz - 18kHz Frequency Response

SKU: SOC800GPAC

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Sony C-800G Specifications

  • Capsule Type

    Condenser

  • Polar Pattern

    Cardioid & Omni-directional user selectable

  • Frequency Response

    20Hz - 18kHz

  • Directivity

    Uni-directional/Omni-directional

  • Sensitivity

    (Uni) -32.0dB/Pa
    (Omni) -35.0dB/Pa

  • Dynamic Range

    113dB or more

  • S/N Ratio

    (Uni) 76dB or more
    (Omni) 73dB or more

  • Inherent Noise (0dB=20Pa)

    (Uni) Less than 18dBSPL (Omni) Less than 21dBSPL

  • Max SPL (dB SPL)(0dB=20P)

    (Uni) 131dB SPL (71 Pa) (Omni) 134dB SPL (100 Pa)

  • Connector

    MIC output; JR16RK-7P type

  • Cable Length

    Mic Cable: 26 feet / 7.92m

  • Power Requirements

    AC120V, 50/60Hz (AC-MC800G)

  • Dimensions

    Mic: 2.25" (dia.) x 7.62 x 9.37" / 5.71 x 19.35 x 23.79 cm

  • Weight

    Mic: 1 lb / 16 oz

  • UPC Code

    027242708327

About Sony C-800G

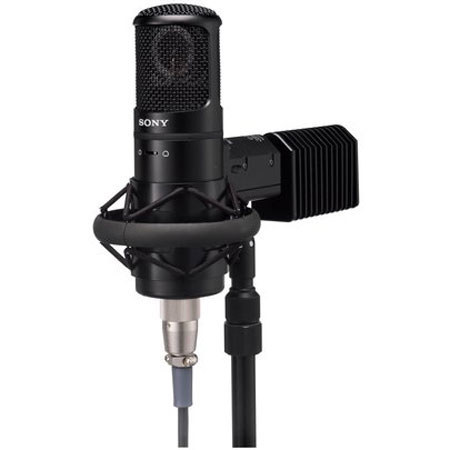

The Sony C-800G Studio Tube Condenser Microphone PAC is a tube condenser microphone kit designed for vocal and instrument recording where professional level signal reproduction is crucial. At the core of the C-800G's excellent sonic character is a 6AU6 vacuum tube, which provides outstanding warmth and presence to the input signal to make the microphone a viable solution for instrument and vocal recording.

The large diaphragm condenser element yields a true frequency response of 20Hz to 18kHz with a dynamic range of 113dB. The result is an even, flat frequency response that maintains detail with low signals and transients. Cardioid and Omni-directional polar patterns are user switchable at the front of the microphone. This allows complete pick-up control for instrument and vocal capturing. The microphone sports a Peltier-based cooling system, keeping the vacuum tube at a safe operating temperature and adding to the unique look of the microphone.

Sony C-800G Features

  • Vacuum Tube Electronics: At the core of the C-800G's excellent sonic character is a 6AU6 vacuum tube. The tube provides outstanding warmth and presence to the input signal making the C-800G a viable solution for instrument and vocal recording
  • Exceptional Signal Response: The large diaphragm condenser element yields a true frequency response of 20Hz to 18kHz with a dynamic range of 113dB. The result is an even, flat frequency response that maintains detail with low signals and transients
  • Switchable Polar Patterns: Cardioid and Omni-directional polar patterns are user switchable at the front of the microphone. This allows complete pick-up control for instrument and vocal capturing
  • Peltier-Based Cooling System: The microphone sports a Peltier-based cooling system, keeping the vacuum tube at a safe operating temperature and adding to the unique look of the microphone

Key Features

  • Vacuum Tube Electronics
  • Exceptional Signal Response
  • Switchable Polar Patterns
  • Peltier-Based Cooling System

What's in the box:

  • Sony C-800G Studio Tube Condenser Microphone PAC
  • Multi-Pin Cable
  • Power Cord
  • Cradle Suspension
  • Wind Screen
  • Shock Mount
  • Sony 1 Year Warranty
