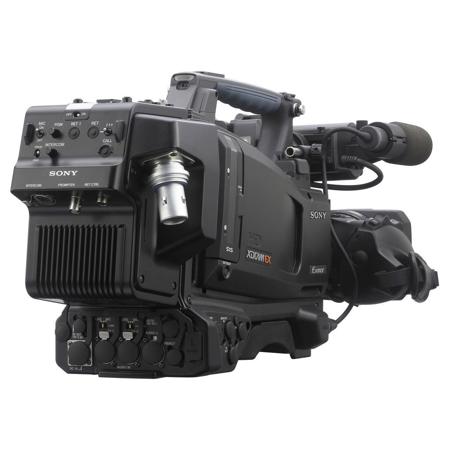

Sony CA-TX70 Digital Triax Camera Adaptor for HXC-D70 and PMW320/400/500
See all Sony items

Sony CA-TX70 Digital Triax Camera Adaptor for HXC-D70 and PMW320/400/500

SKU: SOCATX70
Be the first to review this item

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Sony CA-TX70 Specifications

  • Inputs/Outputs

    Camera/Camcorder: 1 x 50-pin
    CCU: Triax connector
    Prompter Output: 1 x BNC (1 Vp-p, 75 Ohms)
    Intercom: 1 x 5-pin XLR (Female)
    Return Control: 1 x 6-pin

  • Power Supply

    180V DC via CCU Connector

  • Power Consumption

    Max: 95W

  • Operating temperature

    14 deg. F to 113 deg. F (-10 deg. C to 45 deg. C)

  • Storage Temperature

    -4 deg. F to 140 deg. F (-20 deg. C to 140 deg. C)

  • Dimensions (W x H x D)

    5.6 x 6.9 x 5.5" (142.24 x 175.26 x 139.7 mm)

  • Weight

    3.64lbs (1.65kg)

  • UPC Code

    192223062542

0 Accessories for Sony CA-TX70 Digital Triax Camera Adaptor for HXC-D70 and PMW320/400/500

About Sony CA-TX70

The Sony CA-TX70 digital triax adaptor for the HXC-D70 studio camera and PMW-320/350/400/500 camcorders, allows connection to the HXCU-TX70 digital triax Camera Control Unit (CCU). With the CCU, it is possible to control the HXC-D70 and PMW-320/350/400/500 up to a maximum distance 1200 mt. with 14.5mm cable and 600 mt with 8.5mm cable, including the power and signals of Tally, Intercom, Video Return and also Prompter.

Operates with HXCU-TX70
The CA-TX70 works seamlessly with the HXCU-TX70 digital triax Camera Control Unit (CCU). The HKCU-FP2 optional front control panel can be attached onto the HXCU-TX70.

Digital triax connection
The CA-TX70 helps ensure the best picture quality and easy integration of the HXC-D70 and PMW-320/350/400/500 using conventional triax infrastructure up to a maximum distance 1200 mt. with 14.5mm cable and 600 mt with 8.5mm cable.

Connection for all signals
The CA-TX70 provides flexible integration and the possibility to extend the operation with all signals (Tally, Intercom, Video Return and Prompter) in full HD.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Sony CA-TX70 Digital Triax Camera Adaptor for HXC-D70 and PMW320/400/500
  • Cable Clamp Belt Set
  • Accessory Shoe Kit
  • CA Bracket
  • 2 x Screws for CA Bracket
  • Sony 1 Year Parts and 90 Day Labor Limited Warranty
