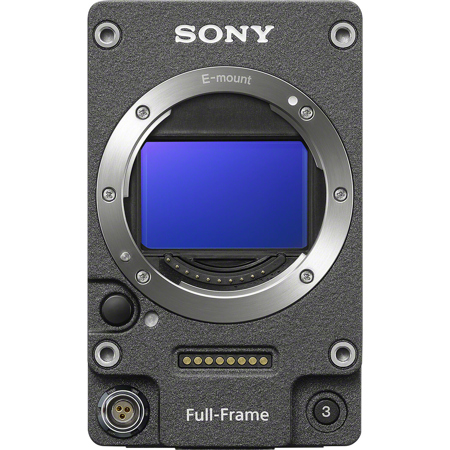

Sony VENICE 2 Extension System Mini

SKU: SOCBK3621XS MFR: CBK-3621XS
Earn VIP Reward Points

Key Features

  • Unleash your Sony VENICE 2's potential with this extension system for ultimate flexibility.
  • Achieve cinematic excellence with the VENICE 2, boasting a 35mm full-size CMOS sensor.
  • Capture stunning visuals with precise color using the included ND filter set for your videos.
  • Enjoy versatile lens options with both PL and E-mount compatibility on the VENICE 2.
  • Experience incredible image quality with ISO 800/3200 sensitivity on your Sony camera.
  • Compact and lightweight design makes the VENICE 2 extension system ideal for on-the-go shooting.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Compatibility
Learn
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Sony Extension System Mini Specifications

General

General

Jump to...
  • Compatibility

    Sony VENICE 2 8K / VENICE 2 6K

  • Imaging Device

    35 mm full size, single-chip CMOS imager sensor

  • Imaging Device Pixel Count

    50.0M (Total)

  • Drop in Filters

    Clear, 0.3 (1/2) 0.6 (1/4) 0.9 (1/8) 1.2 (1/16) 1.5 (1/32) 1.8 (1/64) 2.1 (1/128) 2.4 (1/256)

  • ISO Sensitivity

    ISO 800, ISO 3200

  • Latitude

    16 stops

  • Lens Mount

    PL Mount
    E-mount (without supplied PL lens mount adapter)

  • Flange focal Length

    PL Mount: 52mm
    E Mount: 18mm

  • Power consumption

    Approx. 15W with 4.5 m extension (supplied)
    Approx. 15 W with 12 m extension (optional CBK-12C3621)

  • Operating temperature

    32 deg F to 104 deg F (0 deg C to 40 deg C)

  • Storage temperature

    -4 Degree F to +140 Degree F (-20 Degree C to +60 Degree C)

Input/Outputs

Jump to...
  • DC Input/Output

    1x 24V Input Fischer 3-pin
    1x 24V Output Fischer 3-pin

  • Lens Meta Input

    1x LENS META IN LEMO 4-pin

  • Others

    1x MONITOR IN BNC unused

Physical

Jump to...
  • Color

    Black

  • Dimensions (W x H x D)

    Camera head: 2.52 x 4.06 x 2.37" (63.9 x 103.2 x 60.2mm)

  • Weight

    Camera Head: Approx. 19 oz (538.6g)
    Camera Head + PL Adapter: Approx. 2.31 lbs (1.05kg)
    Imager Block Adapter 4.5m: Approx. 30.33 oz (859.8g)
    Imager Block Adapter 12m: Approx. 2.95 lbs (1.34kg)
    Camera Body Adapter: Approx. 12.69 oz (359.7g)

Designed For Use With:

  • Sony VENICE 2

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

Models
Sony VENICE 2 Extension System Mini

SKU: SOCBK3621XS

MFR: CBK-3621XS

$25,000.00

Ships from Manufacturer

Usually ships within 2-5 Days. Delivery is subject to availability.

Sony BKMPJ20 Optional 3G HDSDi Card for VPL-FHZ700L and VPL-FH500L Projectors
$1,100.00

Temporarily On Backorder

Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.

Williams Sound Direct Burial Cable for Hearing Loop Installations, 656' Reel
$1,015.00

Ships from Manufacturer

Usually ships within 2-5 Days. Delivery is subject to availability.

CompatibilitySony VENICE 2--
Accessory TypeCables & AdaptersCables & Adapters, Connectivity & Interface EquipmentCables & Adapters

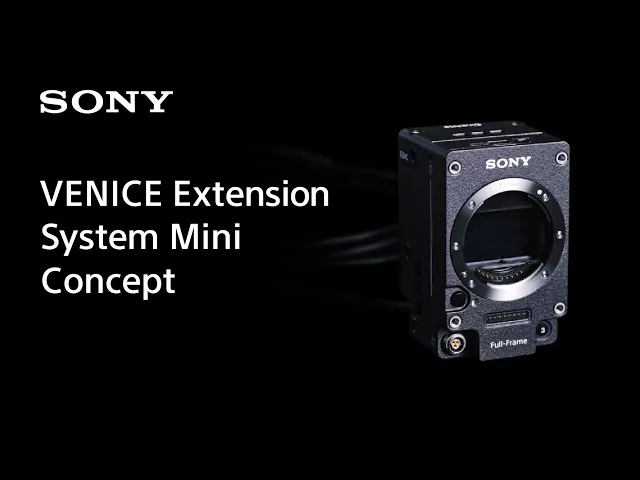

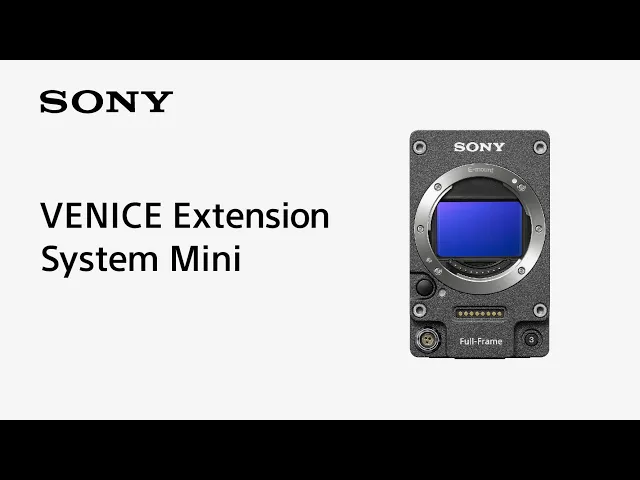

About Sony Extension System Mini

Go small, shoot big

Designed to deliver the next generation of visual content, in a super-compact form. The VENICE Extension System Mini preserves the image quality of VENICE 2, thanks to a built-in 8.6K full-frame CMOS sensor, while being approximately 70% smaller than the VENICE Extension System 2*.

* Volume ratio of the image block, excluding the cable unit.

Flexibility extends to every corner of the compact design. A thin, supple, detachable connector cable unlocks greater filmmaking freedom, as well as facilitates XR content creation and stitch shooting. A PL mount adapter supports more lens choices and metadata recording. Assignable buttons and numerous mounting holes allow cinematographers to rig up and film exactly how they want.

This compact system is perfect for handheld, gimbal, and POV shooting. Its radical, compact design will transform stereoscopic and 360° filming.

8.6K full-frame CMOS sensor

Big things come in small packages, and the VENICE Extension Mini proves it. With a built-in 8.6K full-frame CMOS sensor, it delivers the same breathtaking image quality, ensuring every shot is packed with detail, rich colors, and that sought-after cinematic depth.

Sony VENICE Extension Mini delivers breathtaking image quality with a built-in 8.6K full-frame CMOS sensor

70% smaller

The VENICE Extension Mini is a staggering 70% smaller than the VENICE Extension System 2, measuring just 2.52 × 4.06 × 2.37 inches and weighing as little as 1.19 lbs with an E-mount attached. That means you get the same pro-level performance in a form factor that fits into the palm of your hand.

Sony VENICE Extension Mini is a staggering 70 per cent smaller than the VENICE Extension System

Unmatched flexibility

A filmmaker’s dream, this camera head block comes with 15 built-in mounting holes (top, bottom, sides, and rear), making it easy to rig however you like. Need to tweak your setup on the fly? Two assignable buttons let you control functions like REC or False Color Display with a simple press.

Sony VENICE Extension Mini head block comes with 15 built-in mounting holes

Support for PL and E-mount lenses

The included PL mount adapter lets you swap between E-mount and PL-mount lenses effortlessly, opening up a world of creative possibilities. Plus, with flange back adjustment, you can fine-tune focus to perfection.

Sony VENICE Extension Mini includes PL mount adapter that lets you swap between E-mount and PL-mount lenses

Built-in gyro sensor

Keep your shots level and your tilts intentional. The built-in gyro sensor provides real-time orientation feedback, ensuring steady and precise cinematography. Additionally, the sensor data is captured in metadata, making post-production and VFX work a breeze.

Sony VENICE Extension Mini built-in gyro sensor provides real-time orientation feedback

Peerless durability

Built to withstand dust, moisture, and shocks, this tough little camera head block is ready for intense shooting conditions. And don’t worry about overheating — a built-in cooling fan keeps everything running smoothly so you can shoot without interruptions.

Sony VENICE Extension Mini is built to withstand dust, moisture and shocks

Flexible connector cable

Need more reach? The standard 14.76 ft detachable connector cable already gives you plenty of freedom, but for those ambitious, out-of-reach shots, Sony offers a 39.37 ft cable (sold separately) to really push the creative boundaries.

Sony VENICE Extension Mini offers a 39.37 ft cable to really push the creative boundaries

Drop-in ND filters

Lighting can be unpredictable, but Sony has you covered. The drop-in ND filter system lets you easily swap from clear to 2.4 filters and everything in between with ease! Need more options? Additional filters are available for purchase.

Sony VENICE Extension Mini drop-in ND filter system lets you easily swap from clear to 2.4 filters and everything in between with ease

Stereoscopic and 360° filmmaking

With dual camera head blocks, you can achieve stunning 3D depth, while 360° stitch shooting opens up unlimited creative potential.

Sony VENICE Extension Mini 360 degree stitch shooting opens up unlimited creative potential

Warranty Information

This product has a limited warranty of 12 months for parts and 3 months for labor.

Key Features

  • Unleash your Sony VENICE 2's potential with this extension system for ultimate flexibility.
  • Achieve cinematic excellence with the VENICE 2, boasting a 35mm full-size CMOS sensor.
  • Capture stunning visuals with precise color using the included ND filter set for your videos.
  • Enjoy versatile lens options with both PL and E-mount compatibility on the VENICE 2.
  • Experience incredible image quality with ISO 800/3200 sensitivity on your Sony camera.
  • Compact and lightweight design makes the VENICE 2 extension system ideal for on-the-go shooting.

What's in the box:

  • Sony VENICE 2 Extension System Mini
  • Sensor to Camera Cable (14.8')
  • ARRI PL Adapter
  • ND Filter Set (Clear/0.3/0.6/0.9/1.2/1.5/1.8/2.1/2.4)
  • VENICE 2 Body Cap
  • Set of 15 Shims (1/3 Arc)
  • E-Mount Lens Cap
  • PL-Mount Lens Cap
  • Sony 1 Year Limited Warranty
