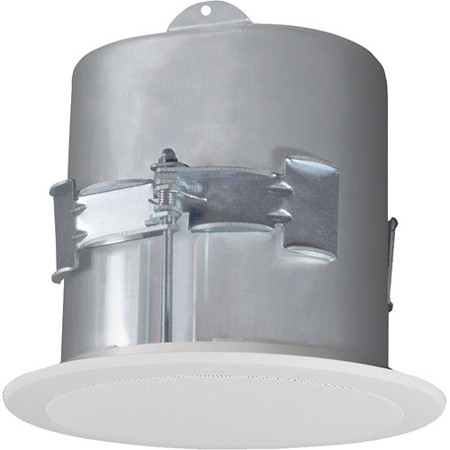

SoundTube CM400I 4" 2-Way In-Ceiling Speaker with BroadBeam, 20W RMS, White, Single

SKU: SOCM400IWH MFR: CM400I-WH
Earn VIP Reward Points

Key Features

  • Experience superior audio with this 4" SoundTube in-ceiling speaker.
  • Enjoy crystal-clear sound quality with a broad frequency response (90 Hz - 22 kHz).
  • This durable in-wall speaker delivers 20W RMS for immersive home theater sound.
  • Achieve optimal sound coverage with a wide 100-degree dispersion angle.
  • Seamlessly integrate this white in-ceiling speaker into any room's aesthetics.
  • Quick, easy installation with Euroblock connector and included tile bridge.
See More Product Details
Special Order?Estimated to Ship: 08/24/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$11.99

2 Year

$19.99

3 Year

$34.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

SoundTube CM400I Specifications

  • System Type

    4" coaxial, in-ceiling, ported (20W transformer for 25-;70.7-, 100V or transformer bypass)

  • Impedance

    4 Ohms (nominal)

  • Sensitivity

    90.0dB At 2.83 V/1m
    87.0dB At 1W/1m

  • Frequency Response

    90 Hz - 22 kHz(- 3dB)
    75 Hz - 22 kHz(-10dB)

  • Max. Program Power

    40W

  • Max. Continuous Power RMS

    20W

  • Max. Power SPL

    At 1m: 100.0dB

  • Coverage Angle

    100 deg. (-6dB at 2 kHz)
    65 deg. (-6dB at 10 kHz)
    95 deg. (Avg. 2 - 10 kHz)

  • Directivity Factor (Q)

    4.6 (avg. 100 Hz - 10 kHz); 4.3 (2 kHz)

  • Directivity Index (DI)

    5.6dB (avg. 100 Hz - 10 kHz); 6.3dB (2 kHz)

  • Tap Selector

    Five-position rotary switch with transformer bypass

  • Transducer

    Low-Frequency Driver: 102mm (4") polypropylene cone, butyl rubber surround; High-Frequency Driver: 25mm (1") convex aluminum tweeter

  • Low-Frequency Voice Coil

    19.0mm (0.75")

  • Crossover Frequency

    1.8 kHz

  • Network Type

    Low Pass: 12dB per octave, 2nd order
    High Pass: 12dB per octave, 2nd order

  • Enclosure Material

    Drawn steel backcan with ABS baffle

  • Grille

    Powder coated steel with integrated ABS bezel

  • Inputs

    Four-pin, 5.08mm Euroblock for individual or daisy chain connection

  • Mounting Hole Diameter

    167.6mm (6.60")

  • Min / Max Ceiling Thickness

    0.6mm (0.025") / 47.5mm (1.87")

  • Regulatory

    UL 1408 (UEAY), 2043 Approved; CE Approved

  • RoHS

    Approved

  • Dimensions (Dia.xH)

    Backcan: 153.7 x 166.4mm (6.05 x 6.55")
    Visible: 207.0 x 11.9mm (8.15 x 0.47")

  • Weight

    2.5kg (5.5 lbs)

  • UPC Code

    752830440388

About SoundTube CM400I

Overwhelm your senses with the Soundtube CM400I 4" 2-Way In-Ceiling Speaker. This sleek and modern speaker is designed to deliver an immersive audio experience right in your home or business. With its BroadBeam technology, it ensures optimal off-axis performance, providing a rich, clear sound from 2 to 10 kHz, as independently verified.

This elegant in-ceiling speaker is more than just a stylish addition to your space. It's engineered for effective low-end response, reaching as low as 75 Hz at -10 dB, ensuring you don't miss a beat. The CM400I's design incorporates a low-profile grille, seamlessly blending into your ceiling for a refined, unobtrusive look.

The speaker also features a five-position tap switch with a transformer bypass position, offering flexibility and control over your audio output. The high-quality CM400I comes with mounting hardware, including a fast and secure constant-tension fixed-wing mounting system, making installation a breeze.

Ideal for a range of applications, the CM400I is perfect for in-ceiling background to mid-level SPL applications. Whether you're playing music in a retail store, paging in a hospital, or setting the mood in a restaurant, this speaker delivers. For venues like courthouses, schools, hotels, casinos, museums, conference rooms, and churches, the CM400I ensures clear, high-quality sound.

When additional bass is required, pair the CM400I with SoundTube's CM1001d-T or SM1001p 10" subwoofers for an even more powerful audio experience, extending the low-end response down to 41 Hz at -10 dB. Experience the difference of the Soundtube CM400I 4" 2-Way In-Ceiling Speaker, where style meets superior sound.

SoundTube CM400I Features

  • One 4.0" (102mm) polypropylene woofer and one 1.0" (25mm) convex aluminum tweeter with FerroFluid cooling
  • Rapid installation blind-mount, fixedwing mounting mechanism with constant tension design affixing to ceiling thicknesses ranging from 0.025" (0.6mm) to 1.87" (47.5mm)
  • Easy access five-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position
  • Separate tool-free magnetic grille and bezel assembly for ease of install and in-field painting
  • Powder-coated steel grille for lasting durability
  • 90dB average sensitivity offers high-output capabilities and reduced amplification costs
  • High-quality white painted finish

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience superior audio with this 4" SoundTube in-ceiling speaker.
  • Enjoy crystal-clear sound quality with a broad frequency response (90 Hz - 22 kHz).
  • This durable in-wall speaker delivers 20W RMS for immersive home theater sound.
  • Achieve optimal sound coverage with a wide 100-degree dispersion angle.
  • Seamlessly integrate this white in-ceiling speaker into any room's aesthetics.
  • Quick, easy installation with Euroblock connector and included tile bridge.

What's in the box:

  • SoundTube CM400I 4 " 2-Way In Ceiling Speaker
  • Tile Bridge
  • Euroblock Connector
  • UL Cover Plate
  • SoundTube 5 Year Limited Warranty
