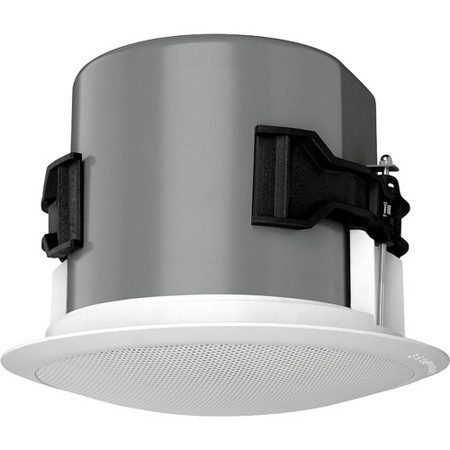

SoundTube CM500I 5.25" In-Ceiling Speaker with BroadBeam, 75W RMS, White, Single

SKU: SOCM500IWH MFR: CM500I-WH
Earn VIP Reward Points

Key Features

  • Experience superior audio with this SoundTube in-ceiling speaker, perfect for home theaters.
  • Enjoy crystal-clear sound quality with the 5.25" coaxial design, enhancing your listening experience.
  • Achieve optimal sound dispersion with BroadBeam technology, ensuring consistent audio coverage.
  • This durable in-ceiling speaker is easy to install, fitting ceilings from 0.25" to 1.91" thick.
  • With a power rating of 75W RMS, this speaker delivers robust sound for immersive audio.
  • Create a seamless aesthetic with the white, powder-coated steel grille that blends into any decor.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$18.99

2 Year

$31.99

3 Year

$54.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

SoundTube CM500I Specifications

  • System Type

    5.25" coaxial, in-ceiling, ported (33-watt transformer for 25/70.7/100-volt or transformer bypass)

  • Impedance

    8 Ohms (nominal)

  • Sensitivity

    86.5dB At 2.83V/1m: 86.5dB At 1W/1m

  • Frequency Response

    75Hz-22kHz (-3dB)
    55Hz - 22kHz (-10dB)

  • Max. Program Power

    150W

  • Max. Continuous Power RMS

    75W

  • Max. Power SPL

    At 1m: 105.5dB

  • Coverage Angle

    95 deg. (-6dB at 2 kHz)
    125 deg. (-6dB at 10 kHz)
    105 deg. (averaged from 2 to 10 kHz)

  • Directivity Factor (Q)

    4.8 (averaged 100 Hz - 10 kHz); 9.5 (2 kHz)

  • Directivity Index (DI)

    6.1dB (averaged 100 Hz - 10 kHz); 9.8dB (2 kHz)

  • Tap Selector

    Six-position tap switch with transformer bypass position

  • Transducer

    Low-Frequency Driver: 133mm (5.25") Polypropylene cone, butyl rubber surround
    High-Frequency Driver: 25mm (1") Convex titanium tweeter with waveguide

  • Low Frequency Voice Coil

    25.4mm (1.0")

  • Crossover Frequency

    3.0 kHz

  • Network Type

    Low Pass: 12dB per octave, 2nd order
    High Pass: 12dB per octave, 2nd order

  • Enclosure Alignment

    Ported

  • Enclosure Material

    Drawn aluminum backcan with ABS baffle

  • Motor-board

    Cast aluminum

  • Grille

    Steel with powder-coat finish

  • Inputs

    4x Pin, 5.08mm Euroblock for individual or daisy chain connection

  • Min / Max Ceiling Thickness

    6.4mm (0.25") / 48.5mm (1.91")

  • Regulatory

    UL 1480 (UEAY) and 2043 Approved: CE Approved

  • RoHS

    Approved

  • Dimensions (Dia.xH)

    Backcan: 219.2 x 196.9mm (8.63 x 7.75")
    Visible: 272.0 x 24.4mm (10.71 x 0.96")

  • Weight

    3.4kg (7.5 lbs)

  • UPC Code

    752830451285

About SoundTube CM500I

What sets the CM500i apart is its sophisticated engineering, which combines a 5.25" two-way speaker system with SoundTube's exclusive BroadBeam waveguide technology. This advanced tweeter system ensures a rich, dynamic audio experience with a broad operating bandwidth and exceptional off-axis performance, verified from 2 to 10 kHz. The speaker's adept low-end response reaches down to 55 Hz, making it a versatile choice for a variety of audio environments.

Crafted with a modern and sleek aesthetic, the CM500i features a low-profile grille that blends seamlessly into any ceiling, offering an elegant and stylish look that complements contemporary interior designs. The high-quality build is evident in every aspect of the speaker, from the proprietary motor-board to the precision-engineered components that ensure long-lasting performance.

Installation is streamlined and secure, thanks to the included mounting hardware and the constant-tension, fixed-wing mounting system, which allows for a fast and reliable setup. The speaker also includes a six-position tap switch with a transformer bypass position, providing flexibility and ease of use for different audio setups.

The CM500i is designed for in-ceiling background to mid-level Sound Pressure Level (SPL) applications, making it an ideal choice for delivering music and paging in a wide range of venues. Whether it's for courthouses, schools, retail stores, grocery stores, restaurants, hotels, casinos, museums, conference rooms, or churches, this speaker is engineered to provide clear and consistent audio.

For those seeking enhanced bass performance, pairing the CM500i with SoundTube's CM1001d-T 10" subwoofer will extend the low-end response to 41 Hz, creating a full-spectrum audio solution. The combination of discreet in-ceiling placement and superior sound quality makes the CM500i a premier choice for audio professionals and enthusiasts who demand the best in their sound systems.

SoundTube CM500I Features

  • Patented BroadBeam waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage (2 to 10 kHz, independently verified)
  • One 5.25" (133mm) polypropylene woofer and one 1" (25mm) convex titanium tweeter with FerroFluid cooling mounted to a proprietary cast-aluminum baffle and heat sink
  • Rapid-installation, blind-mount, fixedwing mounting mechanism with constant-tension design affixing to ceiling thicknesses ranging from 0.25" (6.4mm) to 1.91" (48.5mm)
  • Easy-access six-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position
  • Separate tool-free magnetic grille and bezel assembly with integrated safety cable for ease of install and in-field painting
  • Steel grille with protective powder-coated finish for lasting durability
  • Average sensitivity of 86.5dB offers high output capabilities and reduced amplification costs
  • High-Quality White painted finish

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience superior audio with this SoundTube in-ceiling speaker, perfect for home theaters.
  • Enjoy crystal-clear sound quality with the 5.25" coaxial design, enhancing your listening experience.
  • Achieve optimal sound dispersion with BroadBeam technology, ensuring consistent audio coverage.
  • This durable in-ceiling speaker is easy to install, fitting ceilings from 0.25" to 1.91" thick.
  • With a power rating of 75W RMS, this speaker delivers robust sound for immersive audio.
  • Create a seamless aesthetic with the white, powder-coated steel grille that blends into any decor.

What's in the box:

  • SoundTube CM500I 5.25 " In-Ceiling Speaker
  • Tile Bridge
  • Conduit Plate
  • Euroblock Connector and Installation Aid
  • SoundTube 5 Year Limited Warranty
