SoundTube CM62-BGM Specifications

About SoundTube CM62-BGM

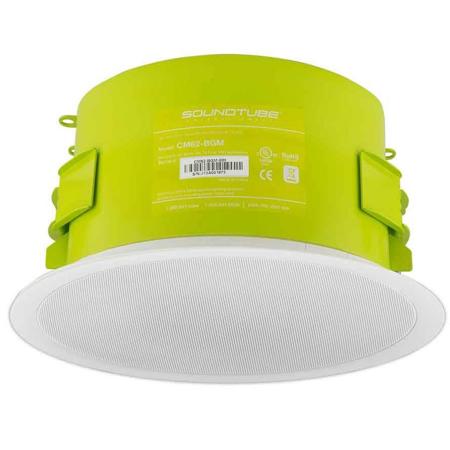

The CM62-BGM is a 6.5" coaxial two-way blind-mount in-ceiling speaker which delivers true high-efficiency and performance across the operating bandwidth. By incorporating a 6.5" polypropylene driver with a rubber surround and a 1" silk dome tweeter in a drawn steel backcan with a tuned port, this speaker delivers maximum frequency response (50 Hz - 22 kHz, - 10 dB) in an integrated enclosure design.

Mounting hardware is included and features a constant-tension fixed-wing mounting system with a 21-gauge "full-metal" steel tile bridge ensuring rapid and secure installation in any sheetrock or drop-tile application. For easy ordering, stocking and installation, this series includes a color-coded (green) tile bridge and optional pre-construction bracket, as well as a six-position tap switch for 25-, 70.7- and 100- volt applications with a transformer bypass position.

Applications
Developed specifically for paging and background music applications where cost, quality and fit are paramount, the CM62-BGM is ideal for hotels, education, hospitals, retail stores, restaurants, airports, churches or boardrooms. Indeed, the entire CM-BGM series is engineered for installations where high-efficiency, added bass response and rapid installation are critical attributes. For applications requiring additional bass response, SoundTube's CM1001d subwoofer provides true low-end response down to 50 Hz.

SoundTube CM62-BGM Features

  • One 6.5" (165mm) polypropylene woofer with rubber surround and one 1" (25.4mm) silk dome tweeter
  • BroadBeam Ring technology for midrange clarity and smooth off axis performance
  • Easy-access six-position tap switch for 25/70.7/100-volt and transformer bypass settings allows for easy ordering, stocking and installation
  • Tuned port on baffle for added musicality and bass response down to 50 Hz (-10dB )
  • Reduced amplification costs and maximum efficiency of 81.4dB sensitivity 1 Ohms impedance
  • Incorporates a painted steel grille for lasting durability
  • Adaptable to material thicknesses ranging from 0.035" (0.9 mm) to 1.6" (40.6mm)
  • High-quality white painted finish

What's in the box:

  • SoundTube CM62-BGM 6.5 " In Ceiling Speaker
  • Tile Bridge
  • UL-Listed Flex Conduit Clamp
  • Paint Shield
  • SoundTube 5 Year Limited Warranty
