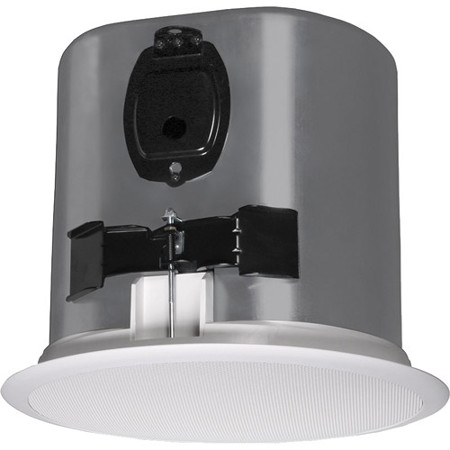

SoundTube CM800D 8" In Ceiling Speaker with Deep Can and BroadBeam, 125W RMS, White, Single

SKU: SOCM800DWH

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

SoundTube CM800D 8" In Ceiling Speaker with Deep Can & BroadBeam, White, Single Specifications

  • System Type

    8" coaxial, in-ceiling, ported (120W transformer for 25/70.7/100V or transformer bypass)

  • Impedance

    8 Ohms (nominal)

  • Sensitivity

    At 2.83V/1m: 90.5dB
    At 1W/1m: 90.5dB

  • Frequency Response

    73 Hz - 22 kHz (- 3dB)
    56 Hz - 22 kHz (-10dB)

  • Max. Program Power

    250W

  • Max. Continuous Power RMS

    125W

  • Max. Power SPL

    At 1m: 111.5dB

  • Coverage Angle

    125 deg. (-6dB at 2 kHz)
    95 deg. (-6dB at 10 kHz)
    125 deg. (averaged from 2 to 10 kHz)

  • Directivity Factor (Q)

    3.8 (averaged 100 Hz - 10 kHz); 4.9 (2kHz)

  • Directivity Index (DI)

    5.3dB (averaged 100 Hz - 10 kHz); 6.9dB (2kHz)

  • Tap Selector

    Five-position rotary switch with transformer bypass position

  • Transducer

    Low-Frequency Driver: 203mm (8") Polypropylene cone, butyl rubber surround
    High-Frequency Driver: 25mm (1") Convex titanium tweeter with waveguide

  • Low-Frequency Voice Coil

    30.4mm (1.2")

  • Crossover Frequency

    3.0 kHz

  • Network Type

    Low Pass: 12dB per octave, 2nd order
    High Pass: 12dB per octave, 2nd order

  • Enclosure Material

    Drawn steel backcan with ABS baffle

  • Motor-board

    Cast aluminum

  • Grille

    Steel with powder-coat finish with ABS bezel

  • Inputs

    Four-pin, 5.08mm Euroblock for individual or daisy chain connection

  • Mounting Hole Diameter

    323.9mm (12.75")

  • Min / Max Ceiling Thickness

    6.4mm (0.25") - 48.5mm (1.91")

  • Regulatory

    UL 1480 (UEAY) and 2043 Approved; CE Approved

  • RoHS

    Approved

  • Dimensions (Dia.xH)

    Backcan: 296.7 x 316.5mm (11.68 x 12.46")
    Visible: 374.9 x 27.4mm (14.76 x 1.08")

  • Weight

    8.5kg (18.8 lbs)

  • UPC Code

    752830448780

About SoundTube CM800D 8" In Ceiling Speaker with Deep Can & BroadBeam, White, Single

The CM800d is an 8", two-way, blind-mount, in-ceiling speaker that delivers extended low-end response (56 Hz) and optimal off-axis performance (2 to 10 kHz, independently verified). SoundTube's proprietary BroadBeam waveguide tweeter system delivers consistent high-performance audio across the operating bandwidth. The CM800d speaker design incorporates an extra deep steel backcan (12.46 in.), a low-profile grille, a proprietary motor-board and a five-position tap switch with transformer bypass position. Mounting hardware is included and features a fast and secure constant-tension fixed-wing mounting system.

Applications
Designed for in-ceiling background to foreground SPL applications, the CM800d delivers a broad dispersion pattern, true low-end response and high sensitivity. The CM800d is ideal for casinos, convention centers, warehouses, nightclubs, gyms, aerobic rooms, airports, super stores, arenas, theme parks, transportation hubs, shipping centers, stadiums and applications requiring background to foreground SPL. For applications where additional bass is required, SoundTube's CM1001d-T 10" subwoofer provides enhanced low-end response down to 41 Hz.

SoundTube CM800D 8" In Ceiling Speaker with Deep Can & BroadBeam, White, Single Features

  • Patented BroadBeam waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage (2 to 10 kHz, independently verified)
  • A 12.46" steel DeepCan provides additional bass response
  • One 8" (203mm) polypropylene woofer and one 1" (25mm) convex titanium tweeter with FerroFluid cooling mounted to a proprietary cast-aluminum baffle and heat sink
  • Rapid-installation, blind-mount, fixed wing mounting mechanism with constant-tension design affixing to ceiling thicknesses ranging from 0.25" (6.4mm) to 1.91" (48.5mm)
  • Easy-access five-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position
  • Separate tool-free magnetic grille and bezel assembly for ease of install and infield painting
  • Steel grille with protective powder-coated finish for lasting durability
  • Sensitivity of 90.5dB (1W/1m) offers high-output capabilities and reduced amplification costs
  • High-quality white painted finish

What's in the box:

  • SoundTube CM800D 8 " In Ceiling Speaker
  • Tile Bridge
  • Conduit Plate
  • Euroblock Connector and Installation Aid
  • SoundTube 5 Year Limited Warranty
