SoundTube CM82-EZ-FS Specifications

  • System Type

    8" coaxial, in-ceiling, sealed (10W transformer for 25/70.7/100V applications)

  • Impedance

    16 Ohms (nominal)

  • Sensitivity

    At 2.83 V/1m: 86dB
    At 1W/1m: 89dB

  • Frequency Response

    92 Hz - 18 kHz (- 3dB)
    65 Hz - 22 kHz (-10dB)

  • Max. Program Power

    128W

  • Max. Continuous Power RMS

    64W

  • Max. Power SPL

    At 1m: 99.0dB

  • Coverage Angle

    105 deg. (-6dB at 2 kHz)
    40 deg. (-6dB at 10 kHz)
    95 deg. (averaged 2-10 kHz)

  • Directivity Factor (Q)

    5.4 (averaged 100 Hz - 10 kHz) ; 7.2 (2 kHz)

  • Directivity Index (DI)

    5.5dB (averaged 100 Hz - 10 kHz) ; 8.6dB (2 kHz)

  • Tap Selector

    Five-position rotary switch

  • Transducer

    Low-Frequency Driver: 203mm (8") Polypropylene cone, butyl rubber surround
    High Frequency Driver: 25.4mm (1") silk dome tweeter

  • Low-Frequency Voice Coil

    25.4mm (1")

  • Crossover Frequency

    3.0 kHz

  • Network Type

    Low Pass: 6dB per octave, 1st order
    High Pass: 6dB per octave, 1st order

  • Enclosure Material

    Drawn steel backcan with ABS baffle

  • Grille

    Steel with painted finish

  • Inputs

    Ceramic terminal strip

  • Mounting Hole Diameter

    266.7mm (10.5")

  • Min - Max Ceiling Thickness

    0.9mm (0.04") - 40.6mm (1.6")

  • Regulatory

    UL 1480 (UUMW) and 2043 listed: CE Approved

  • RoHS

    Approved

  • Dimensions (Dia.xH)

    Backcan: 245.6 x 146.1mm (9.67 x 5.75")
    Visible: 298.5 x 8.6mm (11.75 x 0.34")

  • Weight

    4.1kg (9 lbs)

  • UPC Code

    644216197507

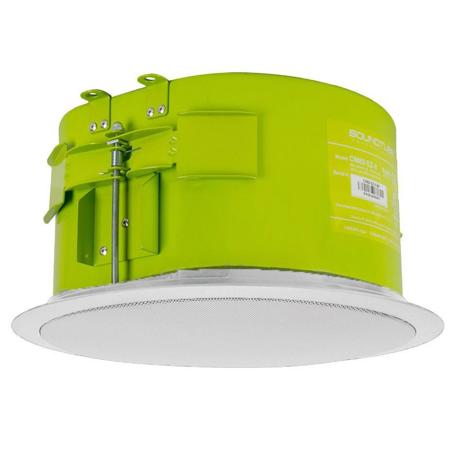

About SoundTube CM82-EZ-FS

The CM82-EZ-FS is an 8", coaxial, two-way, blind-mount, in-ceiling speaker which delivers true high efficiency and performance across the operating bandwidth. By incorporating an 8" polypropylene driver with a butyl rubber surround in a sealed drawn steel backcan, this speaker delivers maximum frequency response (65 Hz - 22 kHz, - 10 dB) in an integrated enclosure design

Mounting hardware is included and features a constant-tension, fixed-wing mounting system with a 21-gauge "full-metal" steel tile bridge ensuring rapid and secure installation in any sheetrock or drop-tile application. For easy ordering, stocking and installation, this series includes a color-coded (green) tile bridge, optional preconstruction bracket and five-position tap switch for 25-, 70.7- and 100-volt applications.

Applications
Developed specifically for paging and background music applications where cost, quality and fit are paramount, the CM82-EZ-FS is ideal for hotels, education, healthcare, retail stores, restaurants, airports, churches or boardrooms. Indeed, the entire CM-EZ-FS series is engineered for installations where code requires UL 1480 UUMW listing, yet speech intelligibility, high-efficiency and rapid installation are critical attributes. The CM-EZ-FS series is suitable for use in fire signaling and mass notification systems. For applications requiring additional bass response, SoundTube's CM1001d-T subwoofer provides true low-end response down to 41 Hz.

SoundTube CM82-EZ-FS Features

  • One 8" (203mm) polypropylene woofer with butyl rubber surround and one 1" (25.4mm) silk dome tweeter
  • Easy-access five-position tap switch for 25/70.7/100-volt settings allows for easy ordering, stocking and installation
  • Reduced amplification costs and maximum efficiency 89.0dB sensitivity, 16 Ohms impedance and a sealed enclosure
  • Superior voice intelligibility with an average coverage angle of 95 deg. (2-10 kHz, independently verified)
  • Incorporates a painted steel grille with rust inhibitor for lasting durability
  • Adaptable to ceiling thicknesses ranging from 0.04" (0.9mm) to 1.6" (40.6mm)
  • 10 MuF capacitor provided on input circuit for use with DC supervision circuits
  • High-quality white painted finish

Key Features

  • One 8" (203mm) polypropylene woofer with butyl rubber surround and one 1" (25.4mm) silk dome tweeter
  • Five-position tap switch for 25/70.7/100-volt settings allows for easy ordering
  • Maximum efficiency 89.0dB sensitivity, 16 Ohms impedance and a sealed enclosure
  • Superior voice intelligibility with an average coverage angle of 95 deg. (2-10 kHz)
  • Adaptable to ceiling thicknesses ranging from 0.04" (0.9mm) to 1.6" (40.6mm)

What's in the box:

  • SoundTube CM82-EZ-FS 8 " 2-Way In Ceiling Speaker
  • Tile Bridge
  • UL-Listed Flex Conduit Clamp
  • Paint Shield
  • SoundTube 5 Year Limited Warranty
