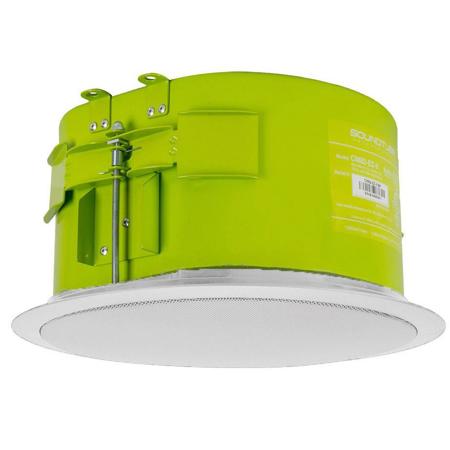

SoundTube CM82-EZ-II 8" 2-Way In Ceiling Speaker in Black, 64W RMS, White, Single

SKU: SOCM82EZIIWH MFR: CM82-EZ-II-WH
Earn VIP Reward Points

Key Features

  • Experience superior audio with this 8" SoundTube in-ceiling speaker for crystal-clear sound.
  • Enjoy wide sound dispersion with a 105-degree coverage angle, perfect for home theater use.
  • This durable in-ceiling speaker delivers 64W RMS power, ensuring robust and reliable performance.
  • Achieve seamless integration with the paintable steel grille, blending into any room's aesthetics.
  • Benefit from easy installation with included tile bridge and cutout template for quick setup.
  • Customize your sound with a six-position tap selector, optimizing audio for any environment.
See More Product Details
Special Order?Estimated to Ship: 09/04/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$9.99

2 Year

$15.99

3 Year

$27.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

SoundTube CM82-EZ-II Specifications

  • System Type

    8" coaxial, in-ceiling, sealed (64W transformer for 25/70.7/100V or transformer bypass)

  • Impedance

    16 Ohms (nominal)

  • Sensitivity

    At 2.83V/1m: 86dB
    At 1W/1m: 89dB

  • Frequency Response

    92 Hz - 18 kHz (- 3dB)
    65 Hz - 22 kHz (-10dB)

  • Max. Program Power

    128W

  • Max. Continuous Power RMS

    64W

  • Max. Power SPL

    At 1m: 107dB

  • Coverage Angle

    105 deg. (-6dB at 2 kHz)
    40 deg. (-6dB at 10 kHz)
    95 deg. (averaged 2-10 kHz)

  • Directivity Factor (Q)

    5.4 (averaged 100 Hz - 10 kHz); 7.2 (2 kHz)

  • Directivity Index (DI)

    5.5dB (averaged 100 Hz - 10 kHz); 8.6dB (2 kHz)

  • Tap Selector

    Six-position rotary switch with transformer bypass position

  • Transducer

    Low-Frequency Driver: 203mm (8") polypropylene cone, butyl rubber surround
    High Frequency Driver: 25.4mm (1.0") silk dome tweeter

  • Low-Frequency Voice Coil

    25.4mm (1.00")

  • Crossover Frequency

    3.0 kHz

  • Network Type

    Low Pass: 6dB per octave, 1st order
    High Pass: 6dB per octave, 1st order

  • Enclosure Material

    Drawn steel backcan with ABS baffle

  • Grille

    Steel with painted finish

  • Inputs

    4 position ceramic terminal strip

  • Mounting Hole Diameter

    266.7mm (10.50")

  • Min - Max Ceiling Thickness

    0.9mm (0.04") - 40.6mm (1.60")

  • Regulatory

    UL 1480 (UEAY) and 2043 Approved: CE Approved

  • RoHS

    Approved

  • Dimensions (Dia.xH)

    Backcan: 245.6 x 146.1mm (9.67 x 5.75")
    Visible: 298.5 x 8.6mm (11.75 x 0.34")

  • Weight

    4.1kg (9 lbs)

  • UPC Code

    752830444782

About SoundTube CM82-EZ-II

It's time to elevate your audio experience with the CM82-EZ-II, an 8" coaxial, two-way, blind-mount, in-ceiling speaker. This sleek and modern speaker is designed by Soundtube, a brand synonymous with high-quality audio equipment. With its discreet in-ceiling design, it seamlessly blends into your room's aesthetics, offering a stylish solution for your audio needs.

The CM82-EZ-II is more than just a pretty face. It's a powerhouse, delivering true high efficiency and performance across its operating bandwidth. The speaker incorporates an 8" polypropylene driver with a butyl rubber surround, housed in a sealed drawn steel backcan. This design ensures maximum frequency response, ranging from 65 Hz to 22 kHz, all within an integrated enclosure.

Installation is a breeze with the included mounting hardware. The speaker features a constant-tension, fixed-wing mounting system and a 21-gauge "full metal" steel tile bridge, ensuring rapid and secure installation in any sheetrock or drop-tile application. The speaker comes with a color-coded (green) tile bridge, an optional pre-construction bracket, and a six-position tap switch for 25-, 70.7- and 100-volt applications, complete with a transformer bypass position.

The CM82-EZ-II is not just a speaker; it's a versatile audio solution. Developed specifically for paging and background music applications, it's the perfect choice for environments where cost, quality, and fit are paramount. Whether it's a hotel, educational institution, healthcare facility, retail store, restaurant, airport, church, or boardroom, this speaker delivers clear, high-quality sound. For those requiring additional bass response, pair it with SoundTube's CM1001d-T subwoofer for true low-end response down to 41 Hz. Experience the difference with the CM82-EZ-II in-ceiling speaker.

SoundTube CM82-EZ-II Features

  • One 8" (203mm) polypropylene woofer with butyl rubber surround and one 1" (25.4mm) silk dome tweeter
  • Easy-access six-position tap switch for 25/70.7/100-volt and 16-ohm transformer bypass settings allows for easy ordering, stocking and installation
  • Reduced amplification costs and maximum efficiency 89.0dB sensitivity, 16 Ohms impedance and a sealed enclosure
  • Superior voice intelligibility with an average coverage angle of 95 deg. (2-10 kHz, independently verified)
  • Cost-effective 16 ohm settings allows for the use of multiples of two, four, or six speakers in a system using a standard amplifier without a transformer
  • Incorporates a painted steel grille with rust inhibitor for lasting durability
  • Adaptable to ceiling thicknesses ranging from 0.04" (0.9mm) to 1.6" (40.6mm)
  • High-quality white painted finish

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience superior audio with this 8" SoundTube in-ceiling speaker for crystal-clear sound.
  • Enjoy wide sound dispersion with a 105-degree coverage angle, perfect for home theater use.
  • This durable in-ceiling speaker delivers 64W RMS power, ensuring robust and reliable performance.
  • Achieve seamless integration with the paintable steel grille, blending into any room's aesthetics.
  • Benefit from easy installation with included tile bridge and cutout template for quick setup.
  • Customize your sound with a six-position tap selector, optimizing audio for any environment.

What's in the box:

  • SoundTube CM82-EZ-II 8 " 2-Way In Ceiling Speaker
  • Tile Bridge
  • UL-Listed Flex Conduit Clamp
  • Paint Shield
  • Cutout Template
  • Two Wire Nuts
  • SoundTube 5 Year Limited Warranty
