SoundTube CM82-EZs Specifications

  • Color

    Black

  • Enclosure Properties

    ABS Glass Fiber Reinforced, Injection Molded, Sealed

  • Enclosure Volume

    350 cu in (5735.47 cu cm)

  • Source Inputs

    18 AWG Wire Leads

  • Coverage Angle (-6dB @ 2kHz)

    40 Degree

  • Crossover Frequency

    3.0 kHz

  • Directivity Factor (Q)

    5.4 and 7.2 (Averaged 100Hz - 10kHz, @ 2kHz)

  • Directivity Index (DI) dB

    5.5 dB (Averaged 100Hz - 10kHz, @ 2kHz)

  • Frequency Response ( +/- 3 dB)

    92 Hz - 18 kHz

  • Grille Properties

    Black, Standard-Flange, Friction-Fit, Paintable, Painted, Steel

  • Low Frequency Voice Coil

    1" (25.4mm)

  • Low Pass Crossover

    6 dB per octave 1st order

  • Magnetically Boosted

    No

  • Max. Continuous Power RMS

    64W

  • Max. Program Power

    128 W

  • Impedance

    Minimum: 17.2 Ohm
    Nominal: 16 Ohm

  • Network Type

    High Pass: 6 dB per octave 1st order

  • Driver

    Tweeter: 1" Silk Dome
    Woofer: 6.5" Treated Fiber Cone w/ Cloth Surround

  • Sensitivity

    At 1W/1M: 89 dB
    At 2.83V/1M: 86 dB

  • Tap Selector

    Rotary Switch

  • Transformer Taps (25V/70.0V/100V)

    8W/64W/64W

  • Ceiling Thickness

    Maximum: 1.6" (40.64mm)
    Minimum: 0.035" (0.89mm)

  • Dimensions (Diameter x H)

    Backcan: 9.67 x 3.75" (245.6 x 95.3mm)
    Visible: 11.75 x 0.34" (298.5 x 8.6mm)
    Cutout Diameter: 10.5" (266.7mm)

  • UPC Code

    644216223305

About SoundTube CM82-EZs

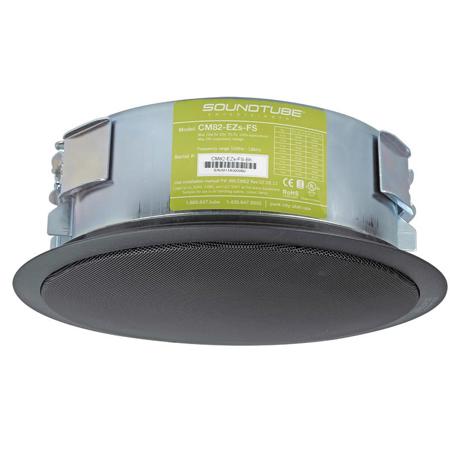

The CM82-EZs is an 8-inch, coaxial, two-way, blind-mount, in-ceiling speaker which delivers true high efficiency and performance across the operating bandwidth. By incorporating an 8-inch polypropylene driver with a butyl rubber surround in a sealed drawn steel backcan, this speaker delivers maximum frequency response (82 Hz 22 kHz, - 10 dB) in an integrated enclosure design. Developed specifically for paging and background music applications where cost, quality and fit are paramount, the CM82-EZs is ideal for hotels, education, hospitals, retail stores, restaurants, airports, churches or boardrooms. Indeed, the entire CM-EZ series is engineered for installations where high efficiency and rapid installation are critical attributes. For applications requiring additional bass response, SoundTube's CM1001d-T and SM1001p subwoofers provide true low-end response down to 41 Hz.

What's in the box:

  • CM82-EZs 8 " Coaxial 2-Way In-Ceiling Speaker with Short Can (Black)
  • Cover Plate
  • Grille
  • Paint Mask
  • SoundTube 5 Year Limited Warranty
