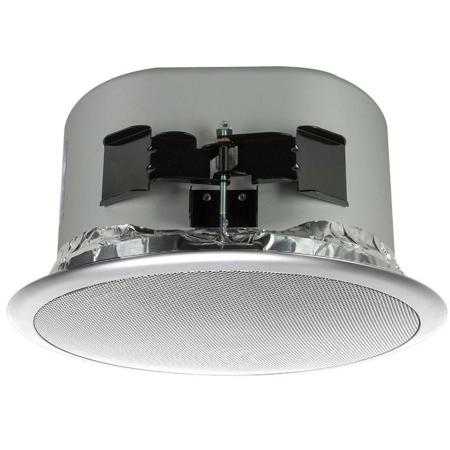

SoundTube CM890I 8" 2-Way High Power In Ceiling Speaker, 125W RMS, White, Single

SKU: SOCM890IWH MFR: CM890I-WH
Earn VIP Reward Points

Key Features

  • Experience superior audio with this SoundTube in-ceiling speaker, perfect for home theaters.
  • Enjoy powerful, clear sound with a 125W RMS, ideal for immersive home audio experiences.
  • This high-performance speaker delivers exceptional sound quality across a wide frequency range.
  • Achieve seamless integration with its paintable grille, blending with any room's aesthetics.
  • Benefit from easy installation and secure mounting with the included tile bridge & conduit plate.
  • Create a professional sound system with its Euroblock connector for simple daisy-chain connections.
See More Product Details
Special Order?Estimated to Ship: 09/09/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$54.99

3 Year

$79.99

4 Year

$99.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

SoundTube CM890I Specifications

  • System Type

    8", coaxial, in-ceiling, high-SPL, ported (66W transformer for 25/70.7/100V or transformer bypass)

  • Impedance

    8 Ohms (nominal)

  • Sensitivity

    At 2.83V/1m 93.0dB
    At 1W/1m 93.0dB

  • Frequency Response

    80 Hz - 22 kHz (- 3dB)
    62 Hz - 22 kHz (-10dB)

  • Max. Program Power

    250W

  • Max. Continuous Power RMS

    125W

  • Max. Power SPL

    At 1m: 114.0dB

  • Coverage Angle

    115 deg. (-6dB at 2 kHz)
    80 deg. (-6dB at 10 kHz)
    105 deg. (averaged from 2 to 10 kHz)

  • Directivity Factor (Q)

    4.4 (averaged 100 Hz - 10 kHz); 5.5 (2kHz)

  • Directivity Index (DI)

    7.4dB (averaged 100 Hz - 10 kHz); 5.5dB (2kHz)

  • Tap Selector

    Six-position rotary switch with transformer bypass position

  • Transducer

    Low-Frequency Driver: 203mm (8") treated paper cone, cloth surround
    High-Frequency Driver: 36mm (1.42") titanium compression driver with waveguide

  • Low-Frequency Voice Coil

    34mm (1.34")

  • Crossover Frequency

    2.2 kHz

  • Network Type

    Low Pass: 12dB per octave, 2nd order
    High Pass: 12dB per octave, 2nd order

  • Enclosure Material

    Drawn aluminum backcan with ABS baffle

  • Motor-board

    Cast aluminum

  • Grille

    Steel with powder-coat finish

  • Inputs

    Four-pin, 5.08mm Euroblock for individual or daisy chain connection

  • Mounting Hole Diameter

    323.9mm (12.75")

  • Min / Max Ceiling Thickness

    6.4mm (0.25") - 48.5mm (1.91")

  • Regulatory

    UL 1480 (UEAY) and 2043 Approved: CE Approved

  • RoHS

    Approved

  • Dimensions (Dia.xH)

    Backcan: 296.7 x 201.7mm (11.68 x 7.94")
    Visible: 374.9 x 27.4mm (14.76 x 1.08")

  • Weight

    6.5kg (14.3 lbs)

  • UPC Code

    644216198306

About SoundTube CM890I

Become immersed in superior sound quality with the CM890I 8" 2-Way High Power In-Ceiling Speaker. This high-efficiency, high-SPL loudspeaker is designed for both distributed and 8-ohm applications, making it a versatile choice for various audio needs.

The CM890I is more than just a speaker; it's an acoustic powerhouse. It features a dedicated 8" treated fiber driver and a high-power compression transducer, both working in harmony to deliver crystal-clear sound. The BroadBeamHP waveguide technology ensures a consistent dispersion pattern, providing superb intelligibility, perfect for foreground music, sound reinforcement, and PA markets.

This in-ceiling speaker is equipped with a 66-watt transformer, complete with a six-position tap switch and transformer bypass position. This feature allows for greater control and customization of your audio experience.

The CM890I comes with mounting hardware and a tile-bridge, ensuring a quick and secure installation process. The constant-tension fixed-wing mounting system guarantees stability and durability, making it a reliable choice for any setting.

Engineered for installations requiring full-range background or foreground music, as well as paging, the CM890I delivers a smooth and even coverage pattern. It's the ideal choice for high-SPL or long-throw applications, such as casinos, convention centers, warehouses, nightclubs, gyms, aerobic rooms, airports, super stores, arenas, theme parks, transportation hubs, shipping centers, stadiums, and more.

For those seeking a deeper bass response, the CM890I pairs perfectly with SoundTube's CM1001d-T 10" subwoofer, which provides a low-end response down to 41 Hz. Experience the power and clarity of the CM890I 8" 2-Way High Power In-Ceiling Speaker, and elevate your audio experience to new heights.

SoundTube CM890I Features

  • Patented BroadBeamHP waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage (2 to 8 kHz, independently verified)
  • A 66-watt transformer and high output (114dB ) for the sound reinforcement and PA markets
  • One 8" (203mm) treated fiber driver and one compression driver with a 1" (25.4mm) exit mounted to a proprietary cast-aluminum baffle and heat sink
  • Rapid-installation, blind-mount, fixedwing mounting mechanism with constant-tension design affixes to ceiling thicknesses ranging from 0.25" (6.4mm) to 1.91" (48.5mm)
  • Easy access six-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position
  • Separate tool-free magnetic grille and bezel assembly with integrated safety cable for ease of install and in-field painting
  • Average sensitivity of 93.0dB offers high output capabilities and reduced amplification costs
  • High-quality white painted finish

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience superior audio with this SoundTube in-ceiling speaker, perfect for home theaters.
  • Enjoy powerful, clear sound with a 125W RMS, ideal for immersive home audio experiences.
  • This high-performance speaker delivers exceptional sound quality across a wide frequency range.
  • Achieve seamless integration with its paintable grille, blending with any room's aesthetics.
  • Benefit from easy installation and secure mounting with the included tile bridge & conduit plate.
  • Create a professional sound system with its Euroblock connector for simple daisy-chain connections.

What's in the box:

  • SoundTube CM890I 8 " 2-Way High Power In Ceiling Speaker
  • Tile Bridge
  • Conduit Plate
  • Euroblock Connector and Installation Aid
  • SoundTube 5 Year Limited Warranty
