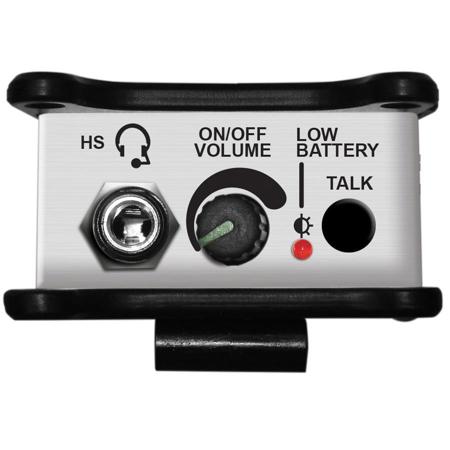

Sonifex CM-BH4WX Belt-Pack 4-Wire Headphone Amp with 4-Pin XLR Headset Socket
See all Sonifex items

Sonifex CM-BH4WX Belt-Pack 4-Wire Headphone Amplifier with 4-Pin XLR Headset Socket

SKU: SOCMBH4WX
(1)

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2017-09-20T18:46:25

Rated 5 out of 5

Fantastic! Used as a 4 wire connection to an intercom matrix!

Product worked without any issues. Battery lasted for at least 8 hours. (That's as long as I was using it.) Connected the unit to a 4 wire matrix intercom system to bypass the need for a 2 wire com converter. Worked with the 4 wire intercom headsets from the clear-com belt pack I was eliminating. Also worked well as a testing tool to send audio through the mixer and to listen to mic/line XLR connection.

Kevin D.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Sonifex CM-BH4WX Specifications

  • Mic Input Impedance

    1k5Ohms Unbalanced for 200Ohms dynamic microphone

  • Limiter Input Threshold

    -60dBu

  • Line Output Level

    +2dBu

  • Line Output Impedance

    150Ohms Transformer balanced

  • Line Input Impedance

    >10kOhms Transformer balanced

  • Input Gain/Volume

    Adjustable off to +10dB

  • Maximum Input Level

    +24dBu

  • Maximum HP Output Level

    +7dBu (ref 9V battery voltage, <1% THD, 100Ohms load)

  • Minimum HP Impedance

    100Ohms

  • Connections: Line Input

    1x XLR 3 pin female socket (balanced)

  • Connections: Line Output

    1x XLR 3 pin male plug (balanced)

  • Connections: Headset

    1x XLR 4 pin male plug (balanced)

  • Equipment Type

    Belt-pack 4-wire headphone amplifier with 4 pin XLR headset connector

  • Dimensions (W x D x H)

    4.92 x 2.64 x 1.89" / 12.5 x 6.7 x 4.8cm

  • Weight

    0.66lbs / 0.3kg

  • UPC Code

    192223054646

About Sonifex CM-BH4WX

FEATURED REVIEWS

Fantastic! Used as a 4 wire connection to an intercom matrix!

By Kevin D.

Product worked without any issues. Battery lasted for at least 8 hours. (That's as long as I was using it.) Connected the unit to a 4 wire matrix intercom system to bypass the need for a 2 wire com converter. Worked with the 4 wire intercom headsets from the clear-com belt pack I was eliminating. Also worked well as a testing tool to send audio through the mixer and to listen to mic/line XLR connection.

This is a version of the CM-BH4W with a 4 pin XLR headset connection instead of a stereo jack connector. In all other respects it is the same as the CM-BH4W.

The XLR connections are:
• Pin 1: Microphone non-phase (-)
• Pin 2: Microphone phase (+)
• Pin 3: Headphone non-phase (-)
• Pin 4: Headphone phase (+)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Sonifex CM-BH4WX Belt-Pack 4-Wire Headphone Amplifier with 4-Pin XLR Headset Socket
  • Sonifex 2 Year Warranty (1 Year + 1 Year with Registration)
