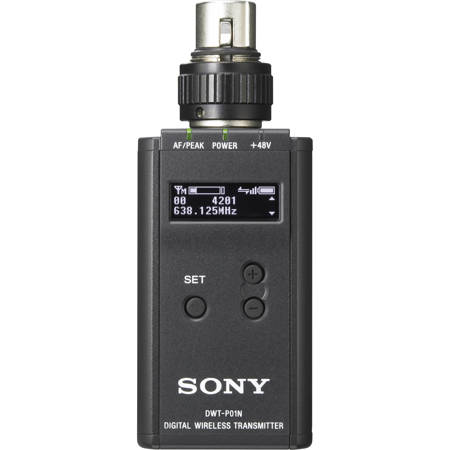

Sony 14-25 UHF-TV Channels 470-542MHz Digital Wireless Microphone Plug-On Transmitter

High quality wide-band transmitter with three codec modes providing short audio latency and more reliable transmission. The DWT-P01N XLR plug-on transmitter forms part of the DWX N series digital wireless microphone system that offers high-quality full-digital operation shorter audio latency and more reliable RF transmission mode-a perfect match for high-quality ENG/EFP applications. The DWX N series system delivers superb-quality wireless transmission of 24-bit digital audio. Thanks to its improved codec and new hardware, it can provide higher sound quality with lower audio latency.

• Three codec modes designed for wide variety of applications
• Low audio latency and high quality sound
• More reliable RF transmissions expands the operation range
• Compatibility with DWX series

Low noise head amplifier
Low noise head amplifier achieves -128 dBu noise floor.

Flexible audio input control
48 dB at 3 dB steps audio attenuation supported. Line / Microphone input supported. Transmitter audio attenuation can be controlled from receiver side using Sony wireless remote control system.

Flexible battery options
The DWT-P01N is able to accept a variety of AA type batteries, such as alkaline, lithium, NiMH, etc.

Selectable output power
Various output powers are selectable to provide the user with options for stable multi-channel or long distance operation. (1/10/50 mW).

Versatile display using organic LED display
A variety of information is obtained at a glance from the new OLED display panel, such as the reception channel, Audio and RF signal status, user name, user group, Lock etc.

Wireless remote control
A duplex wireless remote control system is supported. The DWT-B01N is able to be controlled via the DWR-S02DN receiver. Settings that are changed on the receiver are automatically sent and changed on the paired DWT-P01N transmitter.

Wide operating frequency ranges
DWT-P01N can operate over a 72 MHz frequency band.

Note

This model is available in multiple versions to support the widest possible range of operating frequencies. Please refer to product specifications for more information.
