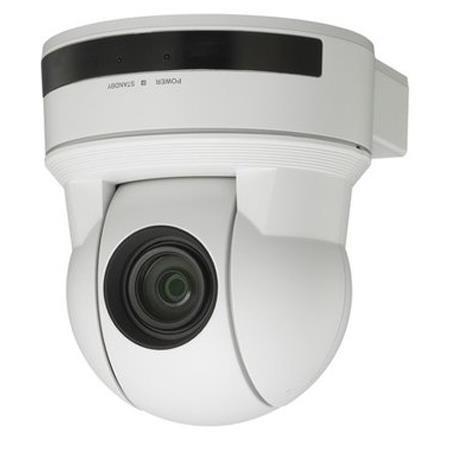

Sony EVI-D90 SD PTZ Camera with RC2-SDX Cable Solution Kit, 28x Optical Zoom, White

SKU: SOEVID90WP2 MFR: EVID90W/PAC2
Earn VIP Reward Points

Key Features

  • Capture clear footage with this PTZ camera's 28x optical zoom, perfect for large events.
  • Enjoy versatile connectivity with SD video output for seamless integration with systems.
  • The Sony EVI-D90 offers reliable performance with pan/tilt functions for full room coverage.
  • Achieve optimal focus with auto, manual, and one-push AF, ensuring sharp video quality.
  • This PTZ camera excels in low light, capturing detailed video even in dim environments.
  • Remotely control the camera via RS-232C/RS-422, making operation simple and efficient.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Sony EVI-D90 + RC2-SDX Specifications

  • Camera: Image sensor

    1/4-type CCD

  • Camera: Signal system

    NTSC/PAL

  • Camera: Lens

    Focal length: f= -3.5mm (Wide) to 98.0mm (Tele), F1.35 to F3.7
    Optical zoom: 28x
    Digital zoom: 12x

  • Camera: Min. Object Distance

    10mm (wide) - 1500mm (tele)
    Default: 300mm

  • Camera: Horizontal viewing angle

    55.8 deg. (wide) to 2.1 deg. (tele)

  • Camera: Focus system

    Auto, One-push AF, Manual, Infinity

  • Camera: Min. illumination

    0.65 lx (F1.35, 50 IRE)

  • Camera: Shutter speed

    1 to 1/10000 s

  • Camera: Gain

    Auto / Manual / Max. AE Gain Limit (-3 to +28dB, 2dB steps)

  • Camera: White balance

    Auto, Indoor, Outdoor, One-push, Manual

  • Camera: Wide-D

    Yes

  • Camera: Exposure control

    Auto, Manual, Priority mode (shutter priority & iris priority), Bright, EV compensation, Slow Shutter AE

  • Camera: S/N ratio

    More than 50dB

  • Camera: Pan/Tilt Angle

    Pan: +/-170 deg.
    Tilt: +90 deg. / -20 deg.

  • Camera: Pan/Tilt Maximum speed

    Pan: 100 deg./sec
    Tilt: 90 deg./sec

  • Camera: Preset positions

    6

  • Camera: Video output

    SD: VBS, Y / C

  • Camera: Interface

    RS-232C/RS-422

  • Camera: Protocol

    VISCA

  • Camera: Power requirements

    DC 12V

  • Camera: Power consumption

    8W

  • Camera: Operating temperature

    32 to 104 deg. F / 0 to 40 deg. C

  • Camera: Storage temperature

    -4 to 140 deg. F / -20 to 60 deg. C

  • RC2-SDX Kit: Cameras Supported

    Sony EVI-D70
    Sony EVI-D80
    Sony EVI-D90
    EVI-D100
    BRC-300 (SD)

  • RC2-SDX Kit: Codec Supported

    Generic S-Video or Composite & Control Device

  • Dimensions (W x H x D)

    Camera: 145 x 164 x 164mm / 5.71 x 6.46 x 6.46"
    RC2-HE: 3.75 x 1.5 x 3.62" / 9.53 x 3.81 x 9.21cm
    RC2-CE: 3.62 x 0.87 x 1.75" / 9.19 x 2.22 x 4.45cm

  • Weight

    Camera: 1460g / 51.50oz

About Sony EVI-D90 + RC2-SDX

The EVI-D90 SD PTZ Camera with RC2-SDX Cable Solution Kit is a high-quality, advanced surveillance solution designed for optimal performance in a variety of applications. This innovative camera, encased in a sophisticated white housing, boasts a remarkable 28x optical zoom, enabling you to capture detailed images from a distance and frame your shots with precision.

The EVI-D90 SD PTZ Camera is compatible with both NTSC and PAL systems, making it a versatile choice for diverse regional and application needs. It employs the RS-232C/RS-422 VISCA protocol interface, ensuring seamless connectivity with a wide range of peripheral system devices.

This camera stands out with its new CCD and CMOS sensors, offering enhanced sensitivity compared to previous EVI SD cameras. With its high-speed pan, tilt, and zoom functionality, it provides comprehensive coverage and control, making it a valuable addition to any surveillance system.

The EVI-D90 SD PTZ Camera is also ceiling mountable, offering flexible installation options to suit your specific needs. It features a low minimum illumination and a resolution of 550 TV lines, ensuring clear, high-quality footage even in low-light conditions. The E-flip function, image stabilization, and the option to choose between interlace and progressive scan mode further enhance its functionality.

The included RC2-SDX Cable Solution Kit ensures easy and efficient camera control. It supports dual CAT5e or CAT6, camera power, analog video, wired and modulated IR, and Visca Control Loop. This durable and sophisticated camera is designed to provide reliable, high-quality surveillance for large areas such as parking lots, buildings, and outdoor spaces.

Sony EVI-D90 + RC2-SDX Features

  • Advanced 28x optical zoom for detailed long-range surveillance
  • Dual system compatibility with NTSC and PAL
  • High-speed PTZ functionality for comprehensive area monitoring
  • Enhanced low-light performance with 550 TV lines resolution
  • Ceiling mountable design for versatile installation options
  • Integrated RC2-SDX Cable Solution Kit for streamlined control

Warranty Information

This product has a limited warranty of 36 months for parts and 3 months for labor.

Key Features

  • Capture clear footage with this PTZ camera's 28x optical zoom, perfect for large events.
  • Enjoy versatile connectivity with SD video output for seamless integration with systems.
  • The Sony EVI-D90 offers reliable performance with pan/tilt functions for full room coverage.
  • Achieve optimal focus with auto, manual, and one-push AF, ensuring sharp video quality.
  • This PTZ camera excels in low light, capturing detailed video even in dim environments.
  • Remotely control the camera via RS-232C/RS-422, making operation simple and efficient.

What's in the box:

  • Sony EVI-D90 SD PTZ Camera
  • RC2D-HE Head-End Module
  • RC2D-CE Camera Module
  • RC2-103 3' HD15 to 4 Pin Mini & RCA Head-End Cable
  • RC2-003 1' RJ45/10 to 8 Pin Mini-Din Camera Cable
  • RC2-005 1' 4 Pin Mini to 8 Pin Mini Din Camera Cable
  • WPS-12 Power Supply
  • Sony 3 Year Warranty
