Sony EVI-HD3V 720p HD PTZ Camera with RC4-SHD Single Cable Solution Kit, 10x Optical Zoom

EZ-2-Connect PTZ Camera Solution featuring EVI-HD3V PTZ Camera with RC4-SHD Kit.

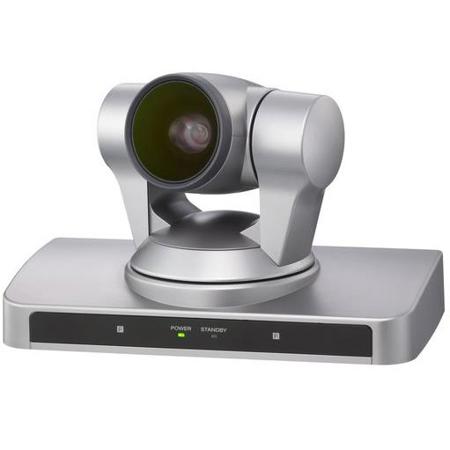

EVI-HD3V 720p HD PTZ Camera
Sony, the world's leading robotic camera manufacturer, is expanding its HD Pan/Tilt/Zoom (P/T/Z) camera lineup with two new HD robotic cameras ideally suited for videoconferencing, distance learning, corporate training and courtrooms. Whether you need standard definition, 720p, 1080i or 1080p for your application, there is a Sony P/T/Z HD camera to capture your true-to-life images. The all-in-one design of the EVI-HD7V and EVI-HD3V P/T/Z cameras combines Sony's expertise in HD technology with its renowned low-noise pan/tilt mechanism. The capture of intricate visual details creates the feeling of being in the same room with remote participants around the globe. The EVI-HD7V achieves digital image acquisition of up to 1080p/601 for exceptional picture quality. The EVI-HD3V provides superb image quality of up to 720p/60 at an affordable price. Both cameras are equipped with a DVI-I interface, enabling easy connection to a PC monitor.

720p/60
The EVI-HD3V produces stunning HD images of up to 720p/60, while offering powerful cost benefits to reduce total system cost.

DVI-I Interface
Thanks to its DVI-I interface, the EVI-HD3V is ideally suited for easy connection to a HD or PC monitor equipped with today's popular digital or analog interfaces such as DVI-D and analog component - all of which provide high-quality digital display.

Flexibility and Choice of Video Outputs From SD to Full HD
The EVI-HD Series provides multiple formats for natural and smooth video images.

High-quality Image Transmission
The EVI-HD7V and EVI-HD3V are both equipped with a DVI-I interface that is designed to maximize high video quality of digital displays. This digital interface is capable of displaying both digital and analog signals (output is selectable from Y/Pb/Pr and RGB). The EVI-HD1 features an HD-SDI interface, enabling long-distance transmission of HD images without degrading the picture quality.

Connection of EVI-HD7V/HD3V to HD Monitor
By selecting Y/Pb/Pr in color coding of EVI-HD7V/HD3V, analog component signals can be output to an HD monitor.

Wide-range, Quiet and Quick Pan/Tilt Movement
All models in the EVI-HD Series utilize a direct drive motor mechanism for achieving high-speed, quiet and smooth P/T/Z operations to capture images. These cameras cover a wide shooting range, ideal for capturing extensive areas where face-to-face discussions are critical. The face-to-face experience is enhanced by the unique quiet operation of the direct drive pan/tilt mechanism.

10x Optical (40x with Digital Zoom)
All models in the EVI-HD Series are equipped with a 10x optical zoom lens. They have a 40x zoom ratio with 4x digital zoom lens. This fast and stable auto-focus lens can clearly capture small and intricately featured objects.

RS-232C Remote Control (VISCA Protocol)
The EVI-HD Series enables camera settings and P/T/Z control functions to be performed remotely at any location and at high communication speeds via the RS-232C interface.

Six Position Presets
All models in the EVI HD Series can store up to a maximum of six preset settings for P/T/Z, focus position, exposure mode and white balance mode.

Customizable Settings via On-screen Menu using IR Remote Commander Unit
Users are able to adjust various camera settings using an IR Remote Commander unit. The easy-to-use supplied IR Remote Commander unit is useful for full operation of the EVI-HD Series from various locations within a room.

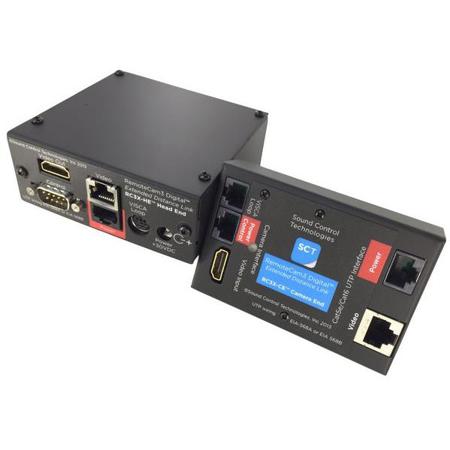

RC4-SHD Single Cable Solution Kit
• Single CAT5e or CAT6
• Camera power
• Digital video
• Camera control
• Wired & Modulated IR
• Visca Control Loop
