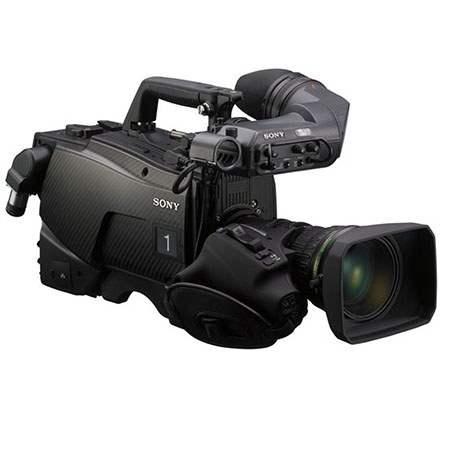

Sony HDC2500L Multiformat Camera System, 2/3" CCD, 1080p Effective Pixels

SKU: SOHDC2500L MFR: HDC2500L
Earn VIP Reward Points

Key Features

  • Capture stunning HD footage with the Sony HDC2500L's superior image quality.
  • Enjoy flexible format options; this professional camcorder supports 1080i/p and 720p.
  • Achieve exceptional audio clarity using the XLR mic inputs for broadcast-quality sound.
  • The HDC2500L's robust build ensures durability, perfect for demanding field productions.
  • Utilize slow & quick motion function to enhance creativity and capture dynamic shots.
  • Seamlessly integrate with broadcast systems using genlock and comprehensive I/O options.
See More Product Details

Please Note

Financing Available: As low as 0% Financing for 12 months. For more info Please email us at sony@adorama.com
Temporarily On Backorder?Expected Availability: 09/2025Request assistance or get notified
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Gary C : Does it have a tilt screen for vlogging?ANDREW R : No, I don't believe so.

Reviews about this item

Review Summary

Sony HDC2500L Specifications

  • Built-in-Filters

    ND)1: CLEAR, 2: 1/4ND, 3: 1/16ND 4: 1/16ND, 5: 1/64ND
    CC)A: CROSS, B: 3200 K, C: 4300 K,D: 6300 K, E: 8000 K

  • Dynamic Range

    6

  • Effective Picture Elements

    1920 x 1080 (H x V)

  • Gain Selection

    -6,-3,0,+3,+6,+9,+12 (standard)

  • Horizontal Resolution

    1000tvl

  • Lens Mount

    B4

  • Modulation Depth

    Y: 50% at 27.5 MHz (800 TV lines with typical lens)

  • Optical System

    F1.4 prism system

  • Pickup Device

    3-chip 2/3-inch type CCD (IT)

  • S/N Ratio

    60db(Typical) 64db with NS

  • Sensitivity

    F10 (1080i/59.94 mode), F11 (1080i/50 mode) (at 2000 lx, 3200 K, 89.9% reflectance)

  • Slow & Quick Motion Function

    Double -speed slowmotion

  • Format

    1080i/50, 1080i/59.94, 720p/59.94, 720p/50,1080p/23.98, 1080p/25, 1080p/29.97,1080p/50, 1080p/59.94

  • Operating temperature

    -20 deg. C to +45 deg. C (-4 deg. F to +113 deg. F)

  • Power Requirements

    240 V AC, 1.4 A (max.), 180 V DC, 1.0 A (max.), 12 V DC, 7 A (max.)

  • Storage Temperature

    -20 deg. C to +60 deg. C (-4 deg. F to +140 deg. F)

  • Input Connectors Audio Input

    (Ch1, Ch2) XLR 3-pin (x2) (female)

  • DC IN

    XLR 4-pin (x1)

  • Genlock/Return IN

    BNC (x1), 1 Vp-p, 75 O

  • Return Control

    6-pin (x1)

  • Input/Output Connectors CCU

    Optical / electrical multi-connector (x1)

  • Crane

    12-pin (x1)

  • Intercom

    Intercom 1 / Intercom 2 XLR 5-pin (x2) (female)

  • Lens

    12-pin (x1)

  • Prompter

    Prompter output / Genlock input BNC (x1), 1 Vp-p, 75 Ohms
    Prompter output / Return input BNC (x1), 1 Vp-p, 75 Ohms

  • Remote

    8-pin (x1)

  • Tracker

    10-pin (x1)

  • Audio Out

    Mic input XLR 3-pin (x1) (female)

  • DC Out

    mini type 4-pin (x1) (DC 10.5 V to 17V, max. 0.5 A) 2-pin (x1) (DC 10.5 V to 17V, max. 2.5 A)

  • Earphone

    Stereo mini-jack 3-pin (x1)

  • HD-SDI Out (Dual Link)

    SDI 1 BNC (x1) (3G / HD-SDI output)
    SDI 2 BNC (x1) (HD-SDI input / output)
    SDI monitor output BNC (x1) (HD-SDI / SD-SDI)

  • Memory Stick

    Type A 4-pin (x1)

  • Test Out

    BNC (x1), 1 Vp-p, 75 Ohms

  • Weight

    4.5kg (9.92lbs)

Models
Sony HDC2500L Multiformat Camera System, 2/3" CCD, 1080p Effective Pixels
$74,864.95

$93,000.00

Save:$18,135.05 (20%)

Temporarily On Backorder

Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.

Sony HDC2400L Multiformat Camera System, 2/3" CCD, 1080p Resolution
$70,000.00

Temporarily On Backorder

Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.

Sony HDC-2570 Multiformat Camera System, 2/3" CCD, 1080p Effective Pixels
$69,125.00

$79,000.00

Save:$9,875.00 (12%)

Temporarily On Backorder

Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.

Special FeaturesGenlockable, Interchangeable Lenses, XLR Mic InputInterchangeable Lenses, XLR Mic InputXLR Mic Input
ResolutionHigh DefinitionHigh DefinitionHigh Definition
Kit StyleBaseBaseBase
ConfigurationCamcorder BundleCamcorder BundleCamcorder Bundle
Sensor TypeCCDCCDCCD
Sensor Size2/3"2/3"2/3"
Lens IncludedBody OnlyBody OnlyBody Only
Recording MediaMemory StickMemory StickMemory Stick

About Sony HDC2500L

The Sony HDC-2500L Multiformat Camera System is a versatile and powerful solution for high-definition studio operations. This camera system is part of the HDC-2000 series, which includes the HDC-2400 full-size studio model and the HDC-2550 triax-based portable camera. These cameras are designed to work seamlessly with a conventional triax-based infrastructure, providing flexibility for a wide range of shooting applications.

The HDC-2500L camera system boasts a newly developed 2/3-inch type 2.2-megapixel full-HD progressive CCD, based on Sony's HAD sensor technology. This advanced sensor offers a high sensitivity of F11 (1080/50i) or F10 (1080/59.94i) at 2,000 lx, ensuring superior picture quality even in challenging lighting conditions. The camera also supports a wide variety of capturing formats, including 1080/50i, 1080/59.94i, 1080/23.98p, 1080/24p, 1080/25p, and 1080/29.97p, offering versatility for different shooting requirements.

The HDC-2500L camera system incorporates a high-performance 16-bit A/D converter, which allows images captured by the high-performance CCD to be processed with maximum precision. This results in faithful reproduction of gradation in mid-to-dark-tone areas of the picture. The camera also features a state-of-the-art DSP (Digital Signal Processing) LSI, which can accommodate up to 1080/50p and 1080/59.94p progressive formats and 16-bit resolution, maximizing the high-clarity images captured by the CCD.

The HDC-2500L camera system is equipped with a 3-Gbps high bitrate fiber transmission system as a standard feature, enabling users to shoot in various capturing formats. The camera comes with a SMPTE-standard optical fiber interface for connecting its associated HDCU-2000 or HDCU-2500 Camera Control Unit. This feature allows the camera to transmit all-digital bi-directional video and audio signals, a control line, and a prompter line over extremely long distances.

The HDC-2500L camera system is designed to be compact and lightweight, weighing approximately 4.5 kg (9 lb 15 oz), making it highly mobile for field operations. The camera's low-profile body minimizes the parallax between the optical axis of the camera head and the large viewfinder, while its low-center of gravity design allows the operator to comfortably carry the camera on their shoulder.

The HDC-2500L camera system comes with a multitude of advanced features, including a Noise Suppression function, a Double-speed Acquisition function for excellent slow-motion picture quality, a Network TRUNK function for data transmission between the camera and the CCU at up to 1 Gbps, and a Digital Extender function that enables images at the center of the shot to be digitally doubled in size without any loss in image sensitivity.

With its innovative high performance, advanced operability, and superior picture quality, the Sony HDC-2500L Multiformat Camera System is an outstanding acquisition tool for a broad range of HD production applications.

Sony HDC2500L Features

  • Newly developed 2/3-inch progressive CCD
  • Newly developed LSI( 16bits A/D)
  • 3G transmission
  • All Psf signal format operation including 1080/60p,23.98psf and 444
  • 2X slow-motion
  • Carbon Graphite side panel
  • Compact and lightweight
  • Ergonomic design
  • Enhanced creative features including Multi-Matrix, Digital Extender, Skin-Tone Detail, Hyper Gamma and Adaptive Matrix

Warranty Information

This product has a limited warranty of 24 months for parts and 3 months for labor.
