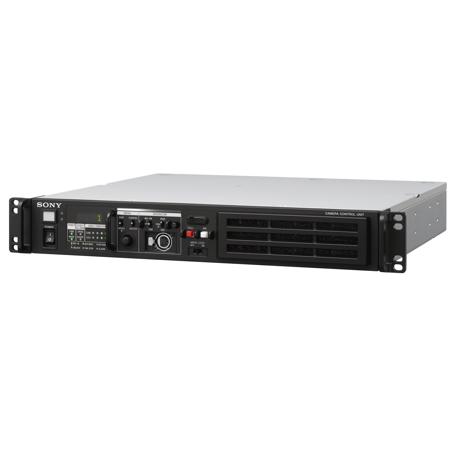

Sony HDCU-3170 HD Digital IP Capable Triax Camera Control Unit

Because of its advanced features and high-quality performance, the HDCU-3170 HD Digital IP Capable Triax Camera Control Unit is an indispensable tool for controlling Sony HDC-3170 system cameras. This efficient unit enhances IP live production capabilities across a broad spectrum of broadcast and studio system cameras. Primarily designed for triax operation, the HDCU-3170 can be upgraded with the HKCU-FB30 fiber option board, making it compatible with both triax and fiber systems. This feature is particularly beneficial for production companies and OB trucks operating in stadiums and venues with varying transmission systems.

The HDCU-3170 connects to compatible cameras via a triax cable. This compact 1.5U unit not only supplies power to the camera but also performs signal processing and interfaces with external equipment. With the addition of optional boards and kits, the HDCU-3170 supports various interfaces, including 3G SDI and IP. When used with HDC-3500 series system cameras, the CCU can provide simultaneous outputs of HD, HDR, and SDR.

The HDCU-3170 CCU, when combined with the HKCU-SFP30 option board designed for the SMPTE ST 2110 Professional Media Over Managed IP Network suite of standards, supports essential functionalities required for live IP production, including tally, intercom, and return.

The compact 1.5U Camera Control Unit creates a standardized 19-inch rack system, making it an ideal choice for space-limited production areas. The optional HKCU-SFP30 interface kit enhances the unit's IP functionality for live production, including ST2110 output and return, NMOS IS-04/05, and tally, intercom, and return over IP.

Equipped with eight built-in SDI outputs, including four 3G-SDI outputs, the HDCU-3170 offers extra production flexibility. With the optional HKCU-SFP30, it supports long-distance signal transmission up to 10km over single-mode fiber, making the CCU an ideal solution for space-limited environments such as OB vehicles. This durable and reliable unit is a testament to Sony's commitment to producing high-quality electronics.
