Sony HDR-PJ540E -PAL- 32GB Full HD Handycam Camcorder with Built-in Projector, 9.2MP Stills, 30x Optical/350x Digital Zoom, 3.0" LCD Display, HDMI/USB 2.0

SKU: SOHDRPJ540E

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

2015-01-11T19:00:00

Rated 5 out of 5

perfect

the lenz, the projector, the built-in flash drive, the wifi and NFC is great

freddienii

Sony HDR-PJ540E Specifications

  • Sensor

    1x 1/5.8" CMOS Sensor

  • Backside Illumination

    Yes

  • Color Filter

    RGB

  • Pixel Gross

    2,510,000

  • Effective Pixels

    2,290,000 at Video 16:9 (Image Stabilizer Off)
    2,290,000 at Photo 16:9
    1,710,000 at Photo 4:3

  • Focal Length

    1.8 - 57

  • 35mm Equivalent Focal Length

    26.8 - 804 at Aspect Ratio: 16:9 Video mode
    26.8 - 804 at Aspect Ratio: 16:9 Photo Mode
    32.8 - 984 at Aspect Ratio: 4:3 Photo mode

  • Maximum Aperture

    1.8 - 4

  • Focusing Distance

    0.4" / 1.0 cm - Infinity

  • Zoom

    Optical: 30x
    Digital: 350x
    Intelligent: 60x

  • Filter Size

    46 mm

  • Recording: System

    PAL

  • Recording: Media

    Internal Flash Memory, microSD/SDHC/SDXC 32GB
    Memory Stick Micro

  • Recording: Time 1

    Internal Flash Memory32 GB
    1920 x 1080(2 ch) PS: 2 hr 30 min
    1920 x 1080(2 ch) HD FX: 2 hr 35 min Dual Video REC ON
    1920 x 1080(2 ch) HD FX: 3 hr Dual Video REC OFF
    1920 x 1080(2 ch) HD FH: 3 hr 25 min Dual Video REC ON
    1920 x 1080(2 ch) HD FH:4 hr 5 min Dual Video REC OFF

  • Recording: Time 2

    1440 x 1080 (2 ch) HD HQ: 5 hr 20 min Dual Video REC ON
    Internal Flash Memory 32 GB
    1440 x 1080 (2 ch) HD HQ: 7 hr 10 min Dual Video REC OFF
    1440 x 1080 (2 ch) HD LP: 7 hr 50 min Dual Video REC ON
    1440 x 1080 (2 ch) HD LP: 12 hr 20 min Dual Video REC OFF

  • Recording: Video Format

    High Definition
    AVCHD (MPEG4)
    1920 x 1080p / 50 fps (28Mbps)
    1920 x 1080i / 50 fps (24Mbps)
    1920 x 1080p / 50 fps (24Mbps)
    1920 x 1080p / 25 fps (17Mbps)
    1920 x 1080i / 50 fps (17Mbps)
    1440 x 1080i / 50 fps (9Mbps)
    1440 x 1080i / 50 fps (5Mbps)
    High Definition
    MP4
    1280 x 720p / 25 fps (3Mbps)

  • Recording: Aspect Ratio

    16:9
    4:3

  • Recording: Still Image Resolution

    JPEG: 9.2 Megapixel, 4032 x 2272 (16:9)
    JPEG: 6.9 Megapixel, 3024 x 2272 (4:3)
    JPEG: 2.1 Megapixel, 1920 x 1080 (16:9)

  • Recording: Channels

    5.1-Channel

  • Recording: Audio Format

    AAC-LC
    Dolby Digital 2ch
    Dolby Digital 5.1

  • Display Type

    LCD

  • Touchscreen

    Yes

  • Screen Size

    3.0"

  • Pixel Count

    460,800

  • Resolution

    960 x 480

  • Aspect Ratio

    16:9

  • Rotation

    Opening Angle: 90deg.
    Turning Angle: 270deg.

  • Projector: Native Resolution

    640 x 360

  • Projector: Contrast Ratio

    1500:1

  • Projector: Throw Distance

    1.6' (0.5 m)

  • Projector: Projection Size

    Max Diagonal: 100" / 254.00 cm

  • Image Stabilization

    Optical

  • Scene Modes

    Preset: Yes

  • Lux

    6 (Standard)
    3 (Low Lux)

  • White Balance Modes

    Auto
    Indoor 1
    Onepush
    Outdoors

  • Built-in Mic

    Yes

  • Built-in Speaker

    Yes

  • Wi-Fi

    Yes, 802.11b/g/n

  • Accessory Shoe

    Multi Interface Shoe

  • Tripod Mount

    1/4"

  • Inputs

    1x Microphone In
    1x HDMI Micro Projector In

  • Outputs

    1x HDMI D (Micro)
    1x USB 2.0
    1x Headphone Out

  • Microphone Input

    Yes

  • Headphone Jack

    Yes

  • Battery

    Rechargeable Lithium-Ion Battery Pack, 6.8-8.4VDC, 1030mAh

  • Charging Method

    AC Adapter
    USB

  • Power Adapter

    100-240VAC, 50/60HZ

  • Power Consumption

    in LCD Operation: 2.4 W

  • Operating Temperature

    32 - 122deg.F (0 - 50deg.C)

  • Dimensions (W x H x D)

    2.4 x 2.6 x 4.8" / 6.09 x 6.60 x 12.19cm

  • Weight

    11.46oz / 324.9g

8 Accessories for Sony HDR-PJ540E -PAL- 32GB Full HD Handycam Camcorder with Built-in Projector, 9.2MP Stills, 30x Optical/350x Digital Zoom, 3.0" LCD Display, HDMI/USB 2.0

  • All Accessories (8)
  • Batteries & Power Supply (2)
  • Camera Grips (1)
  • Adapters & Mounts (2)
  • Microphones & Audio (3)

About Sony HDR-PJ540E

FEATURED REVIEWS

perfect

By freddienii

the lenz, the projector, the built-in flash drive, the wifi and NFC is great

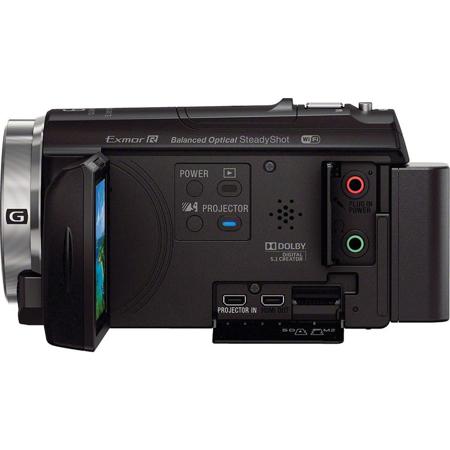

The Sony HDR-PJ540E Full HD Handycam Camcorder with Built-in Projector (PAL) is designed for European video standards and captures Full HD 1920x1080 video at 25p and 50p, as well as 9.2MP still images. It features a 1/5.8" Exmor R CMOS sensor and a wide-angle Sony G zoom lens with 30x optical zoom plus 60x Clear Image digital zoom and provides 32GB of internal flash memory for up to 8 hours of video.

The camcorder delivers smooth shots even on the move with its Balanced Optical SteadyShot image stabilization technology with Active Mode. For enhanced connectivity and control, built-in Wi-Fi with NFC support lets you use your smartphone or tablet to control the camera, as well as wirelessly transfer files to your mobile device for sharing and back up data on your computer.

The HDR-PJ540E includes a built-in 25 lumen projector that allows you to project video at up to a 100" diagonal size without having to connect to a playback device. You can also monitor and playback footage from the camcorder on the 3.0" Clear Photo LCD display with 460K dot resolution. For increased flexibility, you can choose to simultaneously record video in high-quality AVCHD or web-optimized MP4 files and the built-in microphone lets you capture 5.1 channel Dolby Digital sound.

A built-in USB 2.0 cable provides a connection to your computer for charging or file transfer and fits conveniently into the hand strap, so it's out of the way until you need it. A rechargeable lithium-ion battery pack, USB AC adapter, HDMI Micro cable and a USB connection support cable come included.

1920x1080 25p/50p Video and 9.2MP Still Images
Capture cinematic high definition 1920 x 1080 videos at 25p or 50p and take high quality 9.2MP still images. Sony's back-illuminated Exmor R CMOS sensor is designed for compact cameras and camcorders. The sensor relocates the photo diodes above the support circuitry, which maximizes the light gathering area per pixel and achieves better results in low light conditions.

Built-in 25 Lumen Projector
The built-in projector features a maximum 25 lumen output and screen coverage of up to 100" diagonal. Project your footage directly from the camera to view your day's shooting, or share memories without crowding everyone around the LCD screen. The HDMI Micro input allows you to connect external devices that have an HDMI output and use the camcorder's projector to display content.

Balanced Optical SteadyShot Image Stabilization
On standard Optical SteadyShot camcorders a single "shift lens" is moved in the optical block to offset camera shake. Balanced Optical SteadyShot with Active Mode moves the entire optical block at once, maintaining the integrity of the optical path and reducing shake. It also reduces vignetting (light fall off towards the edge of a scene) and lowers distortion in videos and still photos.

NFC / Wi-Fi Control, Transfer & Data Backup
Built-in NFC and Wi-Fi lets you turn your mobile phone and/or tablet into a remote control/viewing device. You can also transfer your files to your mobile device wirelessly for instant sharing, back up your data on your PC and even enjoy your videos and photos on a TV without wires.

Wide Angle Sony G Lens
The lens has a 35mm equivalent of 26.8mm at the wide end of the focal range. Shoot distant subjects with a 30x optical zoom plus 60x Clear Image digital zoom. With Clear Image Zoom the powerful processor compares patterns found in adjacent pixels and creates new pixels to match selected patterns, resulting in higher-quality images. Clear Image Zoom doubles optical zoom for closer photos and video.

3.0" Clear Photo LCD Display
The 3.0" Clear Photo LCD features 460K dot resolution for sharp, bright, vivid images, enabling you to change settings to best represent the scene.

5.1 Channel Mic with Audio Record Controls
Dolby Digital 5.1 channel recording captures active sounds coming from all directions, so you can experience your home movies the way you experienced them while recording. Advanced sound features such as Auto Wind Noise Reduction and Premium Closer Voice make it even easier to get high-quality sound in various situations.

7 Picture Effects for Video and Still Photos
Use Picture Effects to add expression and heighten the mood of your videos and photos. Seven picture effects (Toy Camera, Pop Color, Soft High Key, Partial Color, Retro Photo, High Contrast Monochrome and Posterization) are available in both photo and video modes. Shooting with these special modes will provide you an easy way to instantly transform your memories without any post editing software needed.

AVCHD and MP4 Dual Recording
Record video in the AVCHD and MP4 formats for high-quality or easy transfer and sharing. For the greatest flexibility, you can even record AVCHD and MP4 formats simultaneously. AVCHD provides premium video that can be enjoyed on large screen HDTVs and is ideal for capturing precious memories at special occasions, family vacations and other moments you want to treasure for a lifetime. MP4 is great for those moments that you want to quickly share on your social networks or store on the cloud.

Intelligent Auto Mode
Intelligent Auto mode goes a step beyond traditional auto modes by analyzing your shot and then automatically selecting the appropriate settings from ten distinct scene modes and wind noise reduction. There are 60 different combinations possible-Portrait, Baby, Tripod, Backlight, Landscape, Spotlight, Twilight, Macro and Low light.

What's in the box:

  • Sony HDR-PJ540E Full HD Handycam Camcorder
  • NP-FV50 Rechargeable Battery Pack (1030mAh
  • 8.4V)
  • USB AC Adapter
  • HDMI Micro Cable
  • USB Connection Support Cable
  • Operating Guide
  • Adorama 90 Day Warranty
  • Important Note: This is a PAL System and it is not compatible with USA NTSC TV standards
