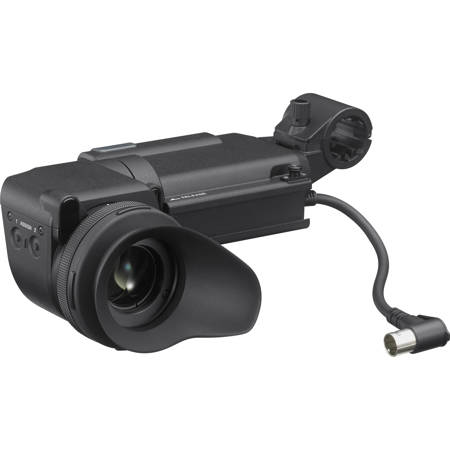

Sony HDVF-EL20 Full HD OLED 0.7" Color Viewfinder

SKU: SOHDVFEL20 MFR: HDVF-EL20
Earn VIP Reward Points

Key Features

  • Experience superior clarity with this Sony OLED color viewfinder, perfect for pro shoots.
  • Achieve precise focus using the HDVF-EL20's adjustable diopter, ranging from -4.0 to +2.0 m-1.
  • Enjoy a bright, clear view with 200 cd/sq. m brightness on this 0.7" OLED display panel.
  • Operate in diverse conditions; this viewfinder functions from -4°F to +113°F for reliability.
  • Weighing only 1 lb 11 oz, the HDVF-EL20 maintains lightweight maneuverability on set.
  • Trust in the Full HD resolution of 1920x1080 for detailed monitoring with this OLED viewfinder.
See More Product Details
Temporarily On Backorder?Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$159.99

3 Year

$215.99

4 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Sony HDVF-EL20 Specifications

General

General

Jump to...
  • Power consumption

    6.9 W

  • Temperature

    Operating: -4 Degree F to +113 Degree F (-20 Degree C to +45 Degree C)
    Storage: -4 Degree F to +140 Degree F (-20 Degree C to +60 Degree C)

OLED Panel

Jump to...
  • Display

    0.7-type color OLED panel

  • Display area

    5/8" x 3/8" (15.8 x 9.0mm)
    (H/V, 16:9 aspect ratio)

  • Diopter range for the loupe

    -4.0 to +2.0 m-1

Performance

Jump to...
  • Brightness

    200 cd/sq. m (typical)

  • Effective pixels

    1920 (horizontal) x 1080 (vertical) x 3 (RGB)

  • Color temperature

    D65

Physical

Jump to...
  • Weight

    1 lb 11 oz (770g)

About Sony HDVF-EL20

Why settle for less when you can have the best The HDVF-EL20 Full HD OLED 0.7" Color Viewfinder is a high-quality, durable, and innovative addition to your Sony camera or camcorder. This compact and user-friendly viewfinder features a 0.7-inch OLED color display with a resolution of 960 x 540 dots, ensuring a clear, high-resolution image for precise focusing and framing.

Designed for seamless integration with Sony camcorders, the HDVF-EL20 is a perfect companion for your Sony 4K/HD cameras and camcorders. Its compatibility extends to a wide range of Sony models, including the F65 digital motion picture camera, 4K/HD system cameras, and shoulder-type HD camcorders that support the 20-pin round HDVF interface.

The HDVF-EL20 boasts an OLED panel that guarantees the highest contrast ratio, thanks to its self-emitting technology. This ensures no smear or blur, reproducing motion with high fidelity, making it easier to focus on 4K images.

The viewfinder's specially developed optical loupe offers a high eye-point, allowing operators to see a wider area of the picture even when standing back from the eyepiece. The image displayed can be downscaled via menu or assignable button to avoid vignetting, providing a more comfortable viewing experience.

The HDVF-EL20 also features effective assignable buttons, allowing you to customize functions such as switching color mode to black/white and focus magnification. The "HIEYE" function reduces or downscales the image size for longer distance viewing.

Thanks to the OLED panel, the HDVF-EL20 achieves deep black color reproduction, high-peak brightness, higher contrast, and a wider dynamic range. This viewfinder is not just a tool, but a game-changer for your photography and videography needs. Experience the difference with the HDVF-EL20 Full HD OLED 0.7" Color Viewfinder.

Sony HDVF-EL20 Features

  • 0.7-inch 1920 x 1080 full HD Organic Light Emitting Diode (OLED) panel
  • Specially developed optical loupe
  • Effective assignable buttons
  • High contrast ratio
  • Compatible with F65 digital motion picture cameras, 4K/HD system cameras and shoulder-type HD camcorders

Warranty Information

This product has a limited warranty of 12 months for parts and 3 months for labor.

Key Features

  • Experience superior clarity with this Sony OLED color viewfinder, perfect for pro shoots.
  • Achieve precise focus using the HDVF-EL20's adjustable diopter, ranging from -4.0 to +2.0 m-1.
  • Enjoy a bright, clear view with 200 cd/sq. m brightness on this 0.7" OLED display panel.
  • Operate in diverse conditions; this viewfinder functions from -4°F to +113°F for reliability.
  • Weighing only 1 lb 11 oz, the HDVF-EL20 maintains lightweight maneuverability on set.
  • Trust in the Full HD resolution of 1920x1080 for detailed monitoring with this OLED viewfinder.

What's in the box:

  • HDVF-EL20 Full HD OLED 0.7 " Color Viewfinder
  • Sony 1 Year Limited Warranty
