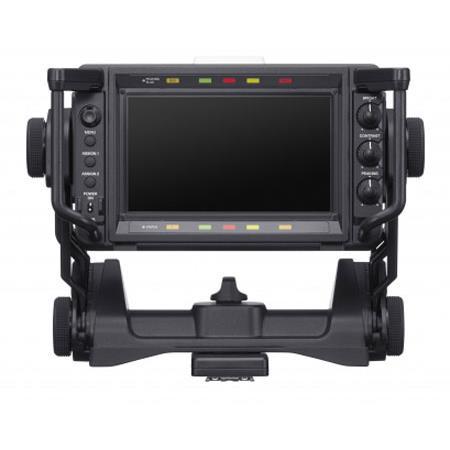

Sony HDVF-L770 7" LCD HD Viewfinder for System Cameras
See all Sony items

Sony HDVF-L770 7" LCD HD Viewfinder for Portable System Cameras, 300cd/m2 Brightness, 1080p Resolution

SKU: SOHDVFL770

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Sony HDVF-L770 Specifications

  • High contrast ratio

    1000:1

  • Power supply

    10.5 V to 17.0 V DC

  • Power consumption

    13 W

  • Operating temperature

    0 deg. C to 45 deg. C (32 deg. F to 113 deg. F)

  • Storage temperature

    -20 deg. C to +60 deg. C (-4 deg. F to +140 deg. F)

  • Display size

    7.0" color TFT transmissive LCD

  • Display area

    155.5 x 87.5mm / 6.12 x 3.44" (H/V, 16:9 aspect ratio)

  • Brightness

    300 cd/m2 (typical)

  • Resolution

    1920 x 1080

  • Color temperature

    D65

  • Supported formats

    1080/59.94P: 59.94
    1080/50P: 50
    1080/29.97P: 29.97
    1080/25P: 25
    1080/24P: 24
    1080/23.98P: 23.98
    1080/59.94i: 29.97
    1080/50i: 25
    1080/29.97PsF: 29.97
    1080/25PsF: 25
    1080/24PsF: 24
    1080/23.98PsF: 23.98
    720/59.94P: 59.94
    720/50P: 50 (during HD-SDI connection)

  • Input connectors

    CAM: 20-pin round type
    CAM: 26-pin rectangular type
    SDI IN: BNC type
    DC IN: 4-pin, 10.5 V to 17.0 V DC

  • Dimensions (W x H x L)

    External: 167 x 253 x 308.6mm / 6.57 x 9.96 x 12.14"

  • Weight

    3kg / 6.61lbs (not including hood)

About Sony HDVF-L770

The Sony HDVF-L770 is a 7" LCD HD 1920 x 1080 View Finder. It can be mounted on Sony studio cameras (HDC/HSC series,F55/65 with CA4000). Also can be mounted on the HXC-D70/ PDW-850,PMW-500,400,350,320 with Triax adapter(CA-TX70) or Fiber adapter (CA-FB70). The viewfinder has the same chassis mechanism as the HDVF-EL75 OLED Viewfinder with a large handle, lifter and bezel and lift/tilt lock lever for adjusting friction. A 3G-SDI input connector adds flexibility for viewing camera or external sources, while six assignable switches on the handle allow for recall of unique setups. The viewfinder comes with a Studio VF hood (with Flip-up mechanism).

Sony HDVF-L770 Features

  • Focus Assist function
  • Adjustable VF positioning and Pan/Tilt mechanism
  • WFM (waveform) function

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Focus Assist function
  • Adjustable VF positioning and Pan/Tilt mechanism
  • WFM (waveform) function

What's in the box:

  • Sony HDVF-L770 7 " LCD HD Viewfinder
  • Connecting Cable (20-pin)
  • Indoor Hood
  • Number Plate
  • V-wedge Shoe Attachment
  • Hexagonal Wrench
  • 4x Hexagonal Screws
  • Spiral Tube
  • Operation Guide
  • Operation Manual (CD-ROM)
  • Sony Warranty
