20 bit/sample
Less than -80 dB(at 1 kHz between any two channels)
20 bit/sample
Less than 0.05%(at 1 kHz emphasis ON reference level)
More than 95 dB(at 1 kHz emphasis ON)
20 Hz to 20 kHz+0.5 dB/-1.0 dB (0 dB at 1 kHz)
Y: 0 to 5.75 MHz +0.5 dB/-2.0 dBR-Y/B-Y: 0 to 2.75 MHz +0.5 dB/-2.0 dB
2% or less
2% or less
1% or less
Based upon RS-170A/CCIR R.624-3
53 dB or more
20 ns or less
20 dB (18 dB selectable)
20 bits/sample
48 kHz (synchronized with video)
Below measurable level
S-I-NRZI PR-IV
Coefficient recording system
Reed-Solomon code
10 bit/sample (compression: 8 bit/sample)
Y: 74.25 MHzR-Y/B-Y: 37.125 MHz
59.94i
29.97PsF
50i
25PsF
59.94i
29.97PsF
50i
25PsF
24PsF
23.98PsF
Studio Recorder/Player
Approx. 3 min with BCT-D124L cassette
HDCAM
6 s or less (both L and S cassettes)
25 to 90%
41 deg. F to 104 deg. F (5 deg. Cto 40 deg. C)
150 W
100 to 240 V 50/60 Hz
0.6 s or less (59.94i and 29.97PsF from standby on)0.7 s or less (50i 25PsF 24PsF 23.98PsF from standby on)
-4 deg. F to +140 deg. F (-20 deg. C to +60 deg. C)
HDCAM
HDCAM:
Still to +/-50 times normal speed playback (59.94i and 29.97PsF)
Still to +/-58 times normal speed playback (50i and 25PsF)
Still to +/-60 times normal speed playback (24PsF and 23.98PsF)
HDCAM: -1 to +2 times normal speed playback
JOG Mode: Still to +/-1 times normal speed playback
HDCAM:
96.7 mm/s (59.94i and 29.97PsF)
80.6 mm/s (50i and 25PsF)
77.4 mm/s (24PsF and 23.98PsF)
(CH1/2/3/4/CUE)
XLR-3-pin type (female) x 5
Low off: -60 dBu high impedance balanced
High off: +4 dBu high impedance balanced
High on: -4 dBm 600 Ohms termination balanced
XLR-3-pin type (male) x 2
+4 dBm at 600 Ohms load
Low Impedance Balanced
(CH1/2/3/4/CUE)
XLR-3-pin type (male) x 5
+4 dBm (600 Ohms load)
Low impedance
Balanced
BNC x 3 (RS-170A including one character out and one WFM out)
Y: 1.0 Vp-p 75 Ohms Sync Negative
D-sub 15-pin
(CH1/2 3/4)
BNC x 2AES/EBU
(CH1/2 3/4)
BNC x 4AES/EBU
BNC x 1 (SMPTE 292M)
Serial Digital (1.485 Gb/s)
BNC x 3 (SMPTE 292M including one character out)
Serial Digital (1.485 Gb/s)
BNC x 2 (with a loop-through)
Tri-level sync
0.6 Vp-p 75 Ohms Sync Negative
BNC x 2 (with a loop-through)
Tri-level sync
0.6 Vp-p 75 Ohms Sync Negative
JM-60 Stereo phone jack
(-8 to -12 dBu at 8 Ohms load unbalanced)
D-sub 50-pin (x1)
D-sub 9-pin (x2)
Sony 9-pin remote interface
D-sub 9-pin (x2)
Sony 9-pin remote interface
D-sub 9-pin
RS-232C interface
BNC x 3 (SMPTE 259M including one character out)
Serial Digital (270 Mb/s)
XLR-3-pin type (female) x 1
0.5 to 18 Vp-p
10 kOhms
Balanced
XLR-3-pin type (female) x 1
0.5 to 18 Vp-p10 kOhms
Balanced
XLR-3-pin type (male) x 1
2.2 Vp-p
Low impedance
Balanced
D-sub 9-pin
16.81 x 6.85 x 21.41" (427 x 174 x 544 mm)
48.50lbs (22kg)

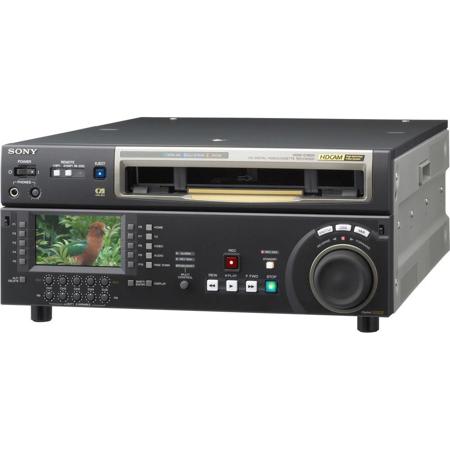

With the Sony HDW-1800 HDCAM Studio Editing Recorder, you can experience high-definition recording and playback in a variety of formats including 1080/59.94i, 50i, 25PsF, 29.97PsF, 23.98PsF, and 24PsF. This HDCAM recorder is designed to deliver superior performance, inheriting all the advanced editing functions from the renowned HDW-2000 series.
The HDW-1800 features a 3-2 pull down capability, made possible with the optional HKDW-104 board. It supports non-audio recording formats such as Dolby-E or AC3 and can output 720/50P or 720/59.94P when equipped with the HKDW-104 option board.
This HDCAM studio editing recorder utilizes the same 12.65-mm width tape as the conventional Betacam series, providing high-definition images and up to two hours of recording time. It supports high-quality 20bit/48kHz digital audio in HDCAM format, with four digital audio input/output channels for enhanced audio versatility.
The HDW-1800 is equipped with a color LCD panel on the control panel, displaying a wide range of information including audio level meter and time data. The LCD unit also displays video during playback or recording, enhancing user convenience.
The built-in down converter enables the output of 480/59.94i or 576/50i, and up to 3 packets of VANC metadata can be recorded and played back. With the optional HKDW-105 i.LINK (HDV) input board, you can record i.LINK (HDV) signals from HDV devices onto HDCAM tapes.
The control panel features an intuitive function menu, allowing you to easily carry out operations and make settings using the function buttons on the LCD display and the MULTI CONTROL knob. The current settings can be conveniently checked on the LCD display.
The HDW-1800 offers DMC editing for automatic editing with a varying playback speed, pre-read editing for real-time recording of pre-recorded video and audio material with external device effects, and cross-fade editing for audio track fading.
This unit also features a remote control function, allowing for external control through an interface complying with RS-422A (Sony 9pin). A parallel (50pin) interface is also fitted as standard, supporting easy external control through the parallel interface.
In summary, the Sony HDW-1800 HDCAM Studio Editing Recorder is a versatile and high-performing device, designed to meet your professional recording and editing needs.
