Review Summary
20 bit/sample
Less than -80 dB(at 1 kHz between any two channels)
20 bit/sample
Less than 0.05%(at 1 kHz emphasis ON reference level)
More than 95 dB(at 1 kHz emphasis ON)
20 Hz to 20 kHz
+0.5 dB/-1.0 dB (0 dB at 1 kHz)
Y: 0 to 5.75 MHz +0.5 dB/-2.0 dB
R-Y/B-Y: 0 to 2.75 MHz +0.5 dB/-2.0 dB
2% or less
2% or less
1% or less
Based upon RS-170A/CCIR R.624-3
53 dB or more
20 ns or less
20 dB (18 dB selectable)
20 bits/sample
48 kHz (synchronized with video)
Below measurable level
S-I-NRZI PR-IV
Coefficient recording system
Reed-Solomon code
10 bit/sample (compression: 8 bit/sample)
Y: 74.25 MHz
R-Y/B-Y: 37.125 MHz
59.94i
29.97PsF
50i
25PsF
59.94i
29.97PsF
50i
25PsF
24PsF
23.98PsF
Studio Recorder/Player
Approx. 3 min with BCT-D124L cassette
HDCAM
6 s or less (both L and S cassettes)
25 to 90%
41 to 104 deg. F (+5 to +40 deg. C)
150 W
100 to 240 V 50/60 Hz
0.6 s or less (59.94i and 29.97PsF from standby on)0.7 s or less (50i 25PsF 24PsF 23.98PsF from standby on)
-4 to +140 deg. F (-20 to +60 deg. C)
HDCAM
Search Speed Range: +/-50 times normal playback speed
Search Speed Range
Still to +/-50 times normal speed playback (59.94i and 29.97PsF)
Still to +/-58 times normal speed playback (50i and 25PsF)
Still to +/-60 times normal speed playback (24PsF and 23.98PsF)
Search Speed Range: +/-78 times normal playback speed
Search Speed Range: -1 to +3 times normal speed playback
Search Speed Range: -1 to +2 times normal speed playback
Search Speed Range: Still to +/-1 times normal speed playback
Search Speed Range: -1 to +3 times normal speed playback
96.7 mm/s
96.7 mm/s (59.94i and 29.97PsF)
80.6 mm/s (50i and 25PsF)
77.4 mm/s (24PsF and 23.98PsF)
64.467(NTSC)
53.776(PAL) mm/s
(CH1/2/3/4/CUE)
XLR-3-pin type (female) x 5
Low off: -60 dBu high impedance balanced
High off: +4 dBu high impedance balanced
High on: -4 dBm 600 O termination balanced
XLR-3-pin type (male) x 2
+4 dBm at 600 O load
Low Impedance
Balanced)
(CH1/2/3/4/CUE)
XLR-3-pin type (male) x 5
+4 dBm (600 O load)
Low impedance
Balanced
BNC x 3 (RS-170A including one character out and one WFM out)
Y: 1.0 Vp-p 75 O Sync Negative
D-sub 15-pin
(CH1/2 3/4)
BNC x 2
AES/EBU
(CH1/2 3/4)
BNC x 2
AES/EBU
BNC x 1 (SMPTE 292M)
Serial Digital (1.485 Gb/s)
BNC x 3 (SMPTE 292M including one character out)
Serial Digital (1.485 Gb/s)
BNC x 2 (with a loop-through)
Tri-level sync 0.6 Vp-p 75O Sync Negative
BNC x 2 (with a loop-through)
Tri-level sync 0.6 Vp-p 75O Sync Negative
JM-60 Stereo phone jack(-Infinity to -12 dBu at 8 O load unbalanced)
D-sub 50-pin (x1)
D-sub 9-pin (x2)
Sony 9-pin remote interface
D-sub 9-pin (x2)
Sony 9-pin remote interface
D-sub 9-pin
RS-232C interface
BNC x 3 (SMPTE 259M including one character out)
Serial Digital (270 Mb/s)
XLR-3-pin type (female) x 1
0.5 to 18 Vp-p
10 kO
Balanced
XLR-3-pin type (female) x 1
0.5 to 18 Vp-p
10 kO
Balanced)
XLR-3-pin type (male) x 1
2.2 Vp-p
Low impedance
Balanced
D-sub 9-pin
427 x 174 x 544mm/ 16.81 x 6.85 x 21.42"
22kg / 48.5lbs

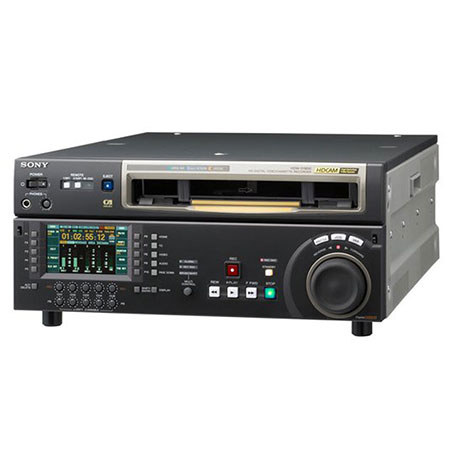

Take your professional video recording and editing to the next level with the Sony HDW-D1800 HDCAM Studio Editing Recorder. This high-quality, sophisticated device is not just an HDCAM recorder, but also offers legacy playback in Digital Betacam and MPEG IMX formats.
Designed for the advanced user, this reliable studio editing recorder is capable of recording and playing back in HDCAM 1080/59.94i, 50i, 25PsF, 29.97PsF, 23.98PsF, and 24PsF formats. It also features a 3-2 pull down option, available with the HKDW-104 option board.
Inheriting all the editing functions from the esteemed HDW-2000 series, the HDW-D1800 offers features such as Dynamic Motion Control (DMC), audio split, pre-read, and audio cross-fade editing. It also boasts a color LCD panel on the control panel, providing a wealth of information including an audio level meter and time data.
The LCD unit also displays video during playback or recording, enhancing your editing process. The built-in down converter enables output in 480/59.94i or 576/50i, while the up converter enables 1080/59.94i or 1080/50i HD output from Digital Betacam or MPEG IMX tape playback.
The HDW-D1800 also supports the recording and playback of up to 3 packets of VANC metadata. Non-audio recording options are also available, such as Dolby-E or AC3. With the HKDW-104 option board, you can also avail of 720/50P or 720/59.94P output.
For those looking to record i.LINK (HDV) signals from HDV devices onto HDCAM tapes, the HKDW-105 i.LINK (HDV) input option board can be installed.
In summary, the Sony HDW-D1800 HDCAM Studio Editing Recorder is a professional, advanced, and reliable choice for high-quality video recording and editing.
