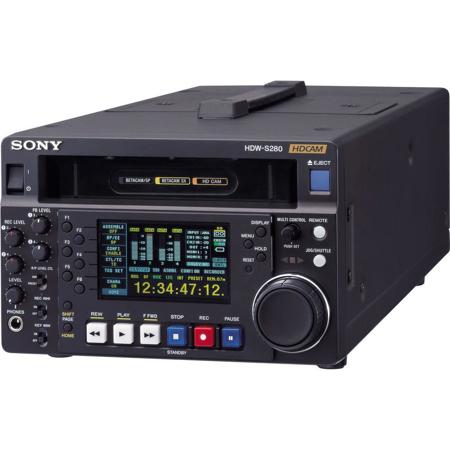

Sony HDW-S280 HDCAM Half-Rack Recorder for Mobile and Field Applications
Sony HDW-S280: Picture 1 thumbnail
Sony HDW-S280: Picture 2 thumbnail
Sony HDW-S280: Picture 3 thumbnail
See all Sony items

Sony HDW-S280 HDCAM Half-Rack Recorder for Mobile and Field Applications, 4min Fast Forward, 3min Rewind, 7s or Less Load/Unload Time

SKU: SOHDWS280 MFR: HDWS280
Be the first to review this itemAsk a Question
$42,479.00
$46,175.00
Save: $3696 (8%)
OR
$3540/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Capture pristine HDCAM video with this Sony recorder, ideal for broadcast quality.
  • Enjoy versatile format support, including Betacam, Betacam SP, and Betacam SX.
  • Experience superior audio with 20-bit quantization for clear, crisp sound quality.
  • Utilize the HD-SDI input/output for seamless connectivity in professional setups.
  • Ensure reliable performance with a robust design for mobile and field applications.
  • Streamline your workflow with fast forward/rewind, saving time on every project.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Sony HDW-S280 Specifications

  • Analog Audio: A/D Quantization

    20 bit/sample

  • Analog Audio: Crosstalk

    Less than -80 dB(at 1 kHz between any two channels)

  • Analog Audio: D/A Quantization

    20 bit/sample

  • Analog Audio: Distortion

    Less than 2%(T.H.D. at 1 kHz reference level)

  • Analog Audio: Dynamic Range

    More than 90 dB(at 1 kHz emphasis ON)

  • Analog Audio: Frequency Response

    20 Hz to 20 kHz +0.5 dB/-1.0 dB (0 dB at 1 kHz)

  • Bandwidth

    Y: 0 to 5.75 MHz +0.5 dB/-2.0 dBR-Y/B-Y: 0 to 2.75 MHz +0.5 dB/-2.0 dB

  • Differential Gain

    2% or less

  • Differential Phase

    2% or less

  • K factor (2T pulse)

    1% or less

  • Output SCH Phase

    Based upon RS-170A/CCIR R.624-3

  • S/N Ratio

    53 dB or more

  • Y/C Delay

    20 ns or less

  • Headroom

    20/18/16/12 dB Selectable

  • Digital Audio: Quantization

    20 bit/sample

  • Digital Audio: Sampling Frequency

    48 kHz (Syncronized with video)

  • Digital Audio: Wow & flutter

    Below measurable level

  • Digital Video: Channel Coding

    S-I-NRZI PR-IV

  • Digital Video: Compression

    Coefficient recording system

  • Digital Video: Error Correction

    Reed-Solomon code

  • Digital Video: Quantization

    10 bit/sample (compression: 8 bit/sample)

  • Digital Video: Sampling Frequency

    Y: 74.25 MHzR-Y/B-Y: 37.125 MHz

  • 40 min (w/ BCT40HD Cass)

    59.94i
    29.97PsF

  • 48 min (w/ BCT40HD Cass)

    50i
    25PsF

  • 50 min (w/ BCT40HD Cass)

    29.97PsF
    23.98 PsF

  • Applications

    Portable Recorder/Player

  • Fast Forward/Rewind Time

    Approx. 4 minutes (Fast Forward)Approx. 3 minutes (Remind)

  • Format

    HDCAM

  • Load/Unload Time

    7 s or less

  • Operating Humidity

    25 to 80%

  • Operating Temperature

    41 to 104 deg. F (+5 to +40 deg. C)

  • Power Consumption

    80 W

  • Power Requirements

    100 to 240 V50/60 Hz

  • Servo Lock Time

    1.0 s or less

  • Storage Temperature

    -4 to +140 deg. F (-20 to +60 deg. C)

  • Tape Format

    Betacam, Betacam SP, Betacam SX

  • Tape Speed: Betacam SX

    59.6 mm/s

  • Tape Speed: Betacam/Betacam SP

    118.6 mm/s (525/59.94)101.5 mm/s (625/50)

  • Tape Speed: HDCAM

    96.7 mm/s (59.94i and 29.97PsF)80.6 mm/s (50i and 25PsF)77.4 mm/s (24PsF and 23.98PsF)

  • Analog Audio Input

    (CH1/2/3/4/CUE)
    XLR-3-pin type (female) x 2
    +4/0/-3/-20/-60 dBu Selectable
    High Impedance
    Balanced

  • Analog Audio Monitor Output

    XLR-3-pin type (male) x 2
    +4 dBm at 600 Ohms load
    Low impedance
    Balanced)

  • Analog Audio Output

    (CH1/2/3/4/CUE)
    XLR-3-pin type (male) x 2
    +4 dBu Low impedance
    Balanced
    600 Ohms

  • Analog Composite Output

    BNC x 3 (RS-170A including one character out)
    Y: 1.0 Vp-p
    sync negative
    R-Y/B-Y: 0.7 Vp-p
    75 Ohms

  • HD-SDI Input

    BNC x 1 (SMPTE 292M)
    Serial Digital (1.485 Gb/s)

  • HD-SDI Output

    BNC x 2 (SMPTE 292M including one character out)
    Serial Digital (1.485 Gb/s)

  • Headphone Output

    JM-60 Stereo phone jack
    (-Infinity to -12 dBu at 8 Ohms load unbalanced)

  • Remote 1 Input

    D-sub 9-pin
    Sony 9-pin remote interface

  • Remote 1 Input/Output

    D-sub 9-pin
    Sony 9-pin remote interface

  • Time Code Input

    BNC x 1
    0.5 to 18 Vp-p
    10 kOhms
    Balanced)
    BNC x 1
    0.5 to 18.8 Vp-p
    10 Ohms
    Balanced

  • Time Code Output

    BNC x 1
    1.0 Vp-p
    Unbalanced

  • Video Control

    D-sub 9-pin

  • Dimensions (W x H x D)

    210 x 132 x 425mm/ 8.27 x 5.2 x 16.73"

  • Weight

    13.25lbs / 6.01kg

About Sony HDW-S280

With the Sony HDW-S280 HDCAM Half-Rack Recorder, experience the pinnacle of durable and high-quality recording for mobile and field applications. This innovative device offers HDCAM recording and playback capabilities, with switchable options including 1080/59.94i, 50i, 23.98PsF, 24PsF, 25PsF, and 29.97PsF.

Designed for versatility, it also provides legacy playback for Betacam, Betacam SP, and Betacam SX formats. The built-in down conversion and up conversion features ensure the highest quality of video output, regardless of the original format.

The HDW-S280 is user-friendly, featuring an LCD monitor on the front panel for easy navigation and monitoring. It also incorporates UMID (unique material identifier) handling, providing a reliable way to manage your recorded materials.

This reliable recorder is designed to operate on AC, DC 12V, and battery power, making it an ideal choice for on-the-go applications. Moreover, the setup is a breeze with the use of Memory Stick media.

In a world where quality and functionality matter, the Sony HDW-S280 HDCAM Half-Rack Recorder stands out as a top choice for professionals seeking a reliable, high-quality recording solution for mobile and field applications.

Sony HDW-S280 Features

  • HDCAM recording and playback - 1080/59.94i, 50i, 23.98PsF, 24PsF, 25PsF and 29.97PsF switchable
  • Legacy Playback for Betacam, Betacam SP and Betacam SX
  • Light and compact size, perfect for mobile and field applications
  • Built in down conversion and up conversion
  • UMID handling
  • LCD video monitor on front panel
  • Runs on AC, DC 12V, and battery power
  • Versatile video interfaces include HD-SDI in/out, SDI out, SD composite out
  • Memory stick interface for easy setup

Warranty Information

This product has a limited warranty of 12 months for parts and 3 months for labor.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture pristine HDCAM video with this Sony recorder, ideal for broadcast quality.
  • Enjoy versatile format support, including Betacam, Betacam SP, and Betacam SX.
  • Experience superior audio with 20-bit quantization for clear, crisp sound quality.
  • Utilize the HD-SDI input/output for seamless connectivity in professional setups.
  • Ensure reliable performance with a robust design for mobile and field applications.
  • Streamline your workflow with fast forward/rewind, saving time on every project.

What's in the box:

  • Sony HDW-S280 HDCAM Half-Rack Recorder for Mobile and Field Applications
  • Connector Cap
  • Operation Manual
  • Instruction Manual
  • 1 Year Parts and Labor Warranty and 1 Year (Or First 1500 Operating Hours) Drum Assembly Warranty
