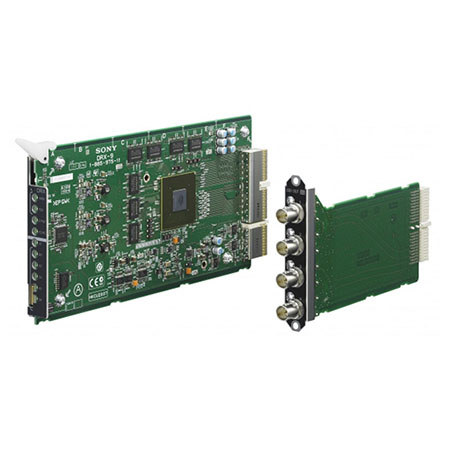

Sony 4x 3G/HD-SDI Output Extension Board for HDCU-2000/HDCU-2500/HDCU-1700 CCU

Because of its high-quality and durable design, the Sony 4x 3G/HD-SDI Output Extension Board is an innovative solution for expanding your camera network. This advanced extension board offers 4x 3G-SDI / HD-SDI outputs (BNC), making it an ideal choice for those using HDCU-2000, HDCU-2500, or HDCU-1700 Camera Control Units (CCUs) in conjunction with HDC-2000 and HDC-1500 Series cameras.

The Sony 4x 3G/HD-SDI Output Extension Board is designed to enhance your video output capabilities, sending 3G bandwidth over a single coax line. This reliable product is also compatible with the HDCU-1700 CCU when used with the HDC-1700 camera, providing a versatile solution for your video production needs.

This output board features 4x BNC connectors, which can be selected between 3G-SDI and HD-SDI, adhering to SMPTE 424M/425M Level-B and SMPTE 292M standards respectively. This ensures optimal video quality and performance.

With the ability to accommodate multiple output boards, the HDCU-2000 can be extended to a maximum of 16x 3G-SDI outputs, while the HDCU-2500 and HDCU-1700 can be extended to a maximum of 7x 3G-SDI outputs. This allows for significant expansion of your camera network, making the Sony 4x 3G/HD-SDI Output Extension Board a valuable addition to your video production equipment.

Up to three HKCU-2007 output boards can be easily installed in the HDCU-2000 CCU, providing an additional 12x 3G-SDI / HD-SDI outputs on top of the standard 4x outputs. Alternatively, one HKCU-2007 can be accommodated in the HDCU-2500 or HDCU-1700 CCU, providing an additional 4x 3G-SDI / HD-SDI outputs on top of the standard 3x outputs. This flexibility makes it a practical choice for a variety of video production setups.
