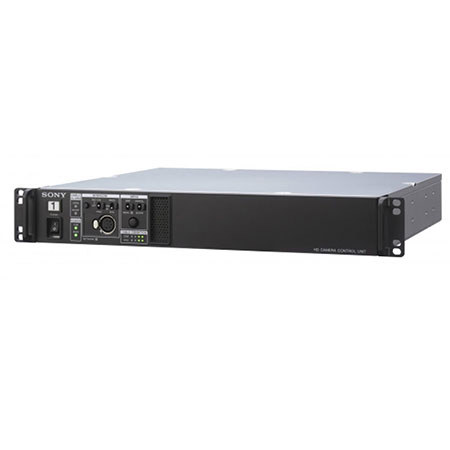

Sony HSCU-300R Camera Control Unit for HSC-300R/100R Camera
See all Sony items

Sony HSCU-300R Camera Control Unit for HSC-300R/100R Camera

SKU: SOHSCU300R

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Sony HSCU-300R Specifications

  • Power Supply

    AC 100 V to 240 V, 50/60 Hz

  • Operating temperature

    5 deg. C to 40 deg. C (41 deg. F to 104 deg.F)

  • Storage Temperature

    -20deg. C to 60 deg. C (-4 deg. F to +140 deg. F)

  • Camera

    Triax

  • Intercom

    Intercom/Tally/PGM: D-Sub 25-Pin, Female
    Tally (R, G)
    PGM 2 Systems, -20/0/+4 dBu

  • Remote

    8-Pin Multi-connector

  • Trunk

    Trunk/Microphone Remote/WF Remote/WF Mode: D-Sub 25-Pin, Female
    Trunk: RS-422A 1 System

  • LAN

    RJ-45 (x1), 10BASE-T, 100BASE-TX

  • AC Input

    AC 100 to 240 V

  • Serial

    Return Input:
    BNC x 2
    HD-SDI: SMPTE 292M, 0.8 Vp-p, 75 Ohms, 1.485/1.4835 Gbps
    SD-SDI: SMPTE 259M, 270 Mbps
    HD-SDI/SD-SDI Selectable

  • Return

    VBS Return Input:
    BNC x 2
    VBS: 1.0 Vp-p, 75 Ohms

  • Reference Input

    BNC with Loop-Through Output BNC
    HD: SMPTE 274M, Tri-Level Sync, 0.6 Vp-p, 75 Ohms
    SD: Black Burst (NTSC: 0.286 Vp-p, 75 Ohms; PAL: 0.3 Vp-p, 75 Ohms)

  • Input

    Prompter Input: BNC x 2, VBS Signal, 1.0 Vp-p, 75 Ohms, 2 Channel

  • Microphone Output

    XLR 3-Pin, Male x 2, 0/-20 dBu

  • Output (HD-SDI/SD-SDI)

    BNC x 2
    HD-SDI: SMTPE 292M, 0.8 Vp-p, 75 Ohms, 1.485/1.4835 Gbps
    SD-SDI: SMPTE 259M, 0.8 Vp-p, 75 Ohms, 270 Mbps
    HD-SDI/SD-SDI Selectable

  • Monitor Output

    HD-SDI/SD-SDI:
    BNC x 2
    HD-SDI: SMTPE 292M, 0.8 Vp-p, 75 O, 1.485/1.4835 Gbps
    SD-SDI: SMPTE 259M, 0.8 Vp-p, 75 O, 270 Mbps
    HD-SDI/SD-SDI Selectable

  • Outputs (Pr/R/R-Y, Y/G/Y, Pb/B/B-Y)

    HD Component Video: Y (100% White): 0.7 Vp-p
    Pr/Pb (75% Color Bar): 0.7 Vp-p, 75 Ohms
    HD RGB Video R/G/B (100% White): 0.7 Vp-p, 75 Ohms
    SD Component Video: Y (100% White): 0.714 Vp-p
    Pr/Pb (75% Color Bar): 0.756 Vp-p, 75 Ohms
    SD RGB Video R/G/B (100% White): 0.7 Vp-p, 75 Ohmsv

  • VBS Interface

    BNC x 2, VBS 1.0 Vp-p, 75 Ohms

  • PIX Output

    BNC VBS/R/G/B (VBS 1.0 Vp-p, 75 Ohms)

  • Sync/WF Output

    BNC

  • Sync Output

    HD: BTA-S001A, Tri-Level Sync, 0.6 Vp-p, 75 Ohms
    SD: Composite Sync, 0.3 Vp-p, 75 Ohms
    HD Sync/SD Sync Selectable

  • WF Output:

    VBS/SEQ/R/G/B (VBS 1.0 Vp-p, 75 Ohms)

  • Compatibility

    Sony HSC-300R and HSC-100R Cameras

  • Weight

    17.43lbs (7.9kg)

About Sony HSCU-300R

The Sony HSCU-300R is 1.5 RU-size Camera Control Unit for the HSC-300R/100R camera. A standardized 19-inch rack system can be built. Under multi-camera operation mode, the HSCU-300R can connect the HSC-300R with the MSU-1000/1500 Master Setup Unit, which enables the HSC-300R to be used as a simple studio system or as part of a large-scale broadcasting system consisting of multiple cameras. Equipped with the latest Sony-developed low-latency digital Triax transmission technology, the HSCU-300R can transmit high-resolution pictures between the camera and CCU, regardless of the cable length. The HSCU-300R features flexible interfaces of selectable inputs/outputs between HD-SDI and SD-SDI .

Sony HSCU-300R Features

  • Multi-system input/output interface
  • Digital triax transmission
  • External sync signals
  • Built-in down converter
  • Built-in simplified up converter
  • 1.5 RU size compact chassis and can be installed in a standard EIA 19-inch rack

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Digital triax transmission
  • External sync signals
  • Built-in down converter
  • Built-in simplified up converter

What's in the box:

  • Sony HSCU-300R Camera Control Unit for HSC-300R/100R Camera
  • Sony 1 Year Limited Warranty
