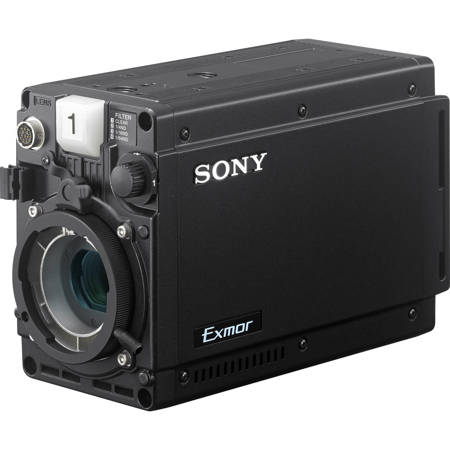

Sony HXC-P70H Full HD Multi-Purpose POV Camera, 1080i Full HD Video

SKU: SOHXCP70H MFR: HXC-P70H
Earn VIP Reward Points

Key Features

  • Capture stunning Full HD video with the Sony HXC-P70H's exceptional image quality.
  • Achieve smooth, detailed footage using the camera's impressive 1080i resolution.
  • Benefit from enhanced low light performance for clear video in any environment.
  • Utilize the versatile bayonet lens mount for adaptable shooting scenarios.
  • Enjoy stable footage with effective stabilization, perfect for dynamic shots.
  • Record pristine audio via balanced inputs, ensuring professional sound quality.
See More Product Details
Temporarily On Backorder?Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$229.99

3 Year

$274.99

4 Year

$369.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Sony HXCP70H Specifications

  • Power requirements

    CCU : DC 48 V, 1.7 A (max), Ext.DC In : DC 12 V, 3.6 A (max.)

  • Power consumption

    17 W

  • Operating temperature

    -10 to 45 deg. C / 14 to 113 deg. F

  • Storage temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Mass

    1.5kg / 3.31lbs

  • Pickup device

    3-chip 2/3-inch type CMOS

  • Effective picture elements (H x V)

    1920 x 1080

  • Signal format

    HD: 1080/59.94i, 1080/50i, 1080/29.97PsF, 1080/25PsF, 720/59.94p, 720/50p
    SD: 480/59.94i, 576/50i

  • Spectrum system

    F1.4 prism system

  • Lens mount

    Sony 2/3-inch type bayonet mount

  • Built-in filters

    CC: Electrical
    ND: 1; CLEAR, 2; 1/4ND, 3; 1/16ND, 4; 1/64ND

  • Sensitivity

    At 2000 lx, 3200K, 89.9% reflectance: F12 (59.94 Hz), F13 (50 Hz)

  • Signal-to-noise ratio

    Typical 59 dB (1080/59.94i)

  • Modulation depth

    HD: 45% or higher at 27.5 MHz (1080i)

  • Horizontal resolution

    1,000 TV lines or higher

  • Shutter speed

    1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000 sec (59.94i mode)
    1/60, 1/125, 1/250, 1/500, 1/1000, 1/2000 sec (50i mode)

  • Shutter Speed (Slow Shutter (SLS))

    2, 3, 4, 5, 6, 7, 8, 16, 32, 64-frame accumulation (Only for HD 1080 mode)

  • Mic Input

    -60 dBu to -20 dBu, Balance, via D-sub 9-pin, female (x1)

  • DC Input

    XLR-type 4-pin (x1), DC 10.5 V to 17 V

  • DC Output

    DC 10.5 V to 17 V, 1.5 A (max.) via D-sub 9-pin

  • SDI Output

    BNC (x2) HD-SDI or SD-SDI selectable

  • CCU

    Optical fiber (x1), for single mode fiber cable

  • EXT Input/Output

    D-sub 9-pin (female) (x1)

  • Distance of power supply

    With HXCU-FB70: 500 m (max.) by CCFN Sony hybrid type fiber cable with portable lens Installed

  • Distance of fiber cable

    With HXCU-FB70: 10 km (max.) by single mode fiber cable with local power supply

  • Remote

    8-pin (x1)

  • Lens

    12-pin (x1)

  • LAN

    RJ-45 (x1) 10BASE-T, 100BASE-TX

  • USB

    USB 2.0 (x1)

  • Dimensions (W x H x D)

    3.5 x 5.12 x 8.37" / 8.89 x 13.00 x 21.26cm

  • Weight

    3.25lbs / 1.47kg(Approx.)

9 Accessories for Sony HXC-P70H Full HD Multi-Purpose POV Camera, 1080i Full HD Video

  • All Accessories (9)
  • Microphones & Audio (2)
  • Flash & Lighting (6)
  • Lenses (1)

About Sony HXCP70H

Bring professional-grade, high-definition capture to even the most challenging shooting angles and locations with the Sony HXC-P70 Full HD Multi-Purpose POV Camera. This compact and versatile camera system is designed to deliver exceptional 1080i Full HD video quality, making it an ideal choice for a wide array of applications, from broadcast and live event coverage to corporate and educational productions.

The HXC-P70 is engineered with three 2/3-inch Exmor CMOS sensors, renowned for their high sensitivity and image quality. These sensors ensure that the camera captures vivid, detailed footage with a high signal-to-noise ratio, achieving a remarkable sensitivity of F12 at 1080/59.94i or F13 at 1080/50i. The result is crisp, clear images that stand out even in less-than-ideal lighting conditions.

This camera's compatibility with the HXC-D70 system allows for seamless integration and consistent color matching, thanks to the shared image sensor technology. The HXC-P70 also boasts a direct fiber cable connection, offering flexibility in setup and ensuring high-quality signal transmission over long distances. With the ability to use either hybrid-type or single-mode fiber cables, the camera can transmit signals up to 500m with power or up to an impressive 10km with a local power supply, utilizing existing infrastructure for quick and efficient installation.

The HXC-P70's built-in neutral density (ND) optical servo filter unit and electrical color correction (CC) filter enhance its adaptability to various shooting environments. With four color temperature settings and the ability to control the filters both locally and remotely, this camera ensures precise color reproduction and image control.

The Total Level Control System (TLCS) is another standout feature, offering automatic adjustments of gain, iris, and shutter to maintain optimal exposure, even as lighting conditions change. This intelligent functionality is invaluable for maintaining consistent image quality throughout a production.

For extended reach without compromising image quality, the HXC-P70 includes a digital extender function that magnifies the image by two or four times. Unlike traditional optical extenders, this digital solution maintains full sensitivity, ensuring that image brightness is not sacrificed for closer framing.

The camera's slow shutter function, with up to 64-frame accumulation, combined with a +48 dB gain-up feature, allows for exceptionally bright images in low-light scenarios. This makes the HXC-P70 a versatile tool for surveillance, video conferencing, and other applications where lighting cannot be controlled.

In terms of connectivity, the HXC-P70 is equipped with a comprehensive array of interfaces. It offers two HD/SD-SDI outputs, return signal output, prompter signal output, and test signal output, among others. Ethernet interfaces for remote control and additional connectors for trunk lines and assignable functions ensure that this camera can meet the demands of complex production setups.

The Sony HXC-P70 Full HD Multi-Purpose POV Camera is a testament to Sony's commitment to high-quality, adaptable, and user-friendly broadcast equipment. Its lightweight design, at just 1.5 kg, makes it easy to mount in a variety of locations, including cranes, helicopters, and underwater housings, providing unparalleled flexibility for capturing unique perspectives in full HD quality.

Sony HXCP70H Features

  • Compact and versatile Full HD Multi-Purpose POV Camera with 1080i Full HD video quality
  • Equipped with three 2/3-inch Exmor CMOS sensors for high sensitivity and exceptional image quality
  • Direct fiber cable connection for long-distance signal transmission, compatible with both hybrid-type and single-mode fiber cables
  • Built-in neutral density (ND) optical servo filter unit and electrical color correction (CC) filter for optimal image control
  • Total Level Control System (TLCS) for automatic adjustments of gain, iris, and shutter
  • Comprehensive array of interfaces including two HD/SD-SDI outputs, return signal output, and Ethernet interfaces for remote control

Warranty Information

This product has a limited warranty of 12 months for parts and 3 months for labor.

Product Documents

User Manual

Key Features

  • Capture stunning Full HD video with the Sony HXC-P70H's exceptional image quality.
  • Achieve smooth, detailed footage using the camera's impressive 1080i resolution.
  • Benefit from enhanced low light performance for clear video in any environment.
  • Utilize the versatile bayonet lens mount for adaptable shooting scenarios.
  • Enjoy stable footage with effective stabilization, perfect for dynamic shots.
  • Record pristine audio via balanced inputs, ensuring professional sound quality.

What's in the box:

  • Sony HXC-P70H Full HD Multi-Purpose POV Camera
  • Set of Tally Number Plate
  • Operation Guide
  • Operation Manual (CD-ROM)
  • Sony Warranty
